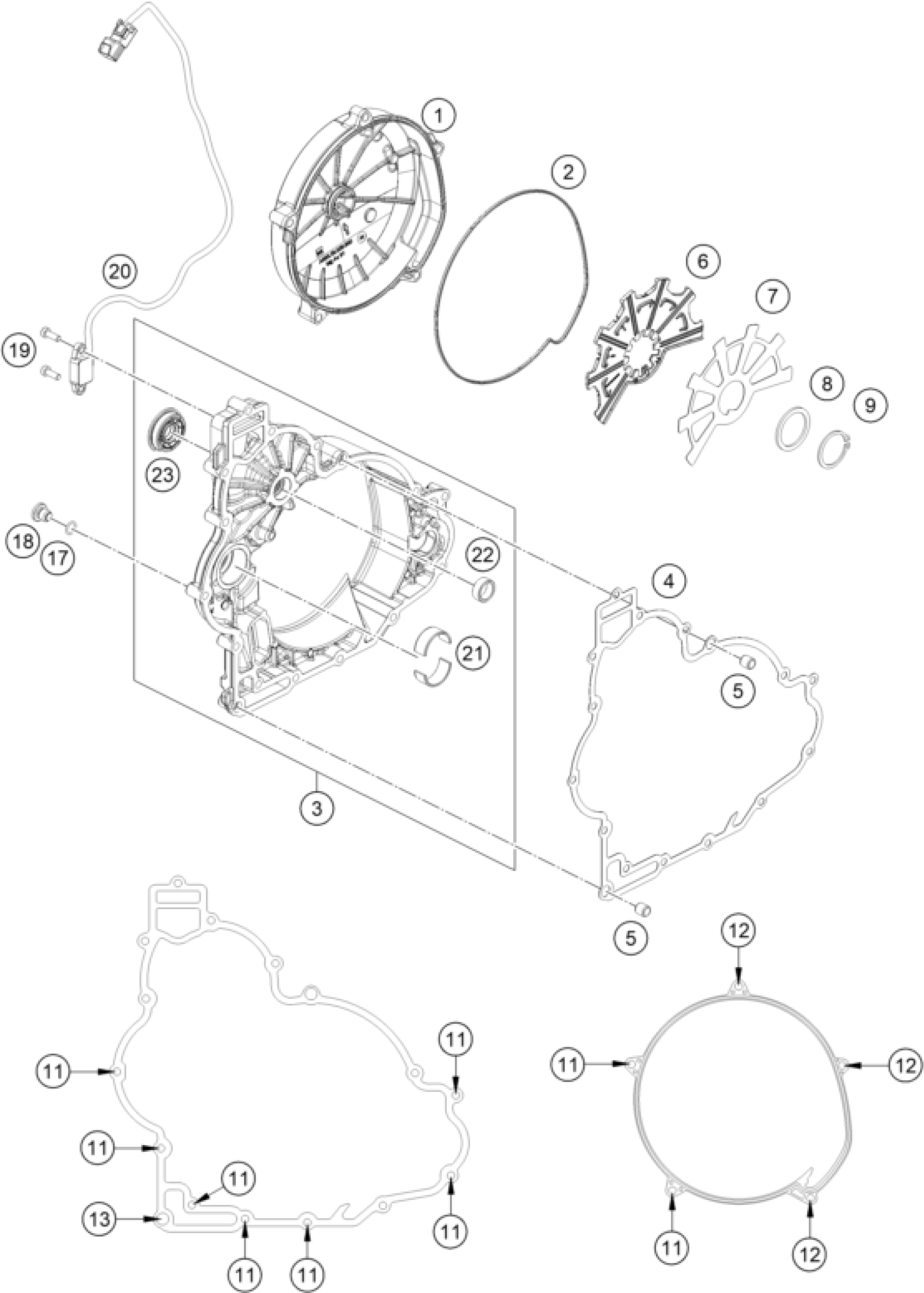

KTM 1390 SUPER DUKE R, black 2024 CLUTCH COVER Diagram

#

Description

Price

1

Outer clutch cover

A60030026000C1

Unavailable

2

MOLDED RING OUTER CLUTCH COVER

61230027000

Unavailable

3

Clutch cover cmpl.

A60030001044C1

Unavailable

4

Clutch Cover Gasket

61730025000

Unavailable

5

DOWEL 9,8 X7X10

49030090100

Unavailable

6

Damping rubber

A60030026060

Unavailable

7

Tension plate

A60030026050

Unavailable

8

Washer 31x39x1

0690003100100

Unavailable

9

CIRCLIP DIN0471-30X1,5 NIRO

0471300151

Unavailable

11

HH collar screw M6x30 TX30

0025060306

Unavailable

12

HH COLLAR SCREW M6X90 TX30

0025060906

Unavailable

13

HH collar screw M6x35 TX30

0025060356

Unavailable

17

O-RING 9x1,5 V80 SH

07700900151

Unavailable

18

SCREW PLUG

77336056095

Unavailable

19

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

Unavailable

20

Shift shaft sensor

61434051000

Unavailable

21

BUSHING BOWL 28X32X13 03

60030026010

Unavailable

22

SLIDE BEARING

61330157050

Unavailable

23

radial shaft seal 34.5x15x9 Du

0760153459

Unavailable
