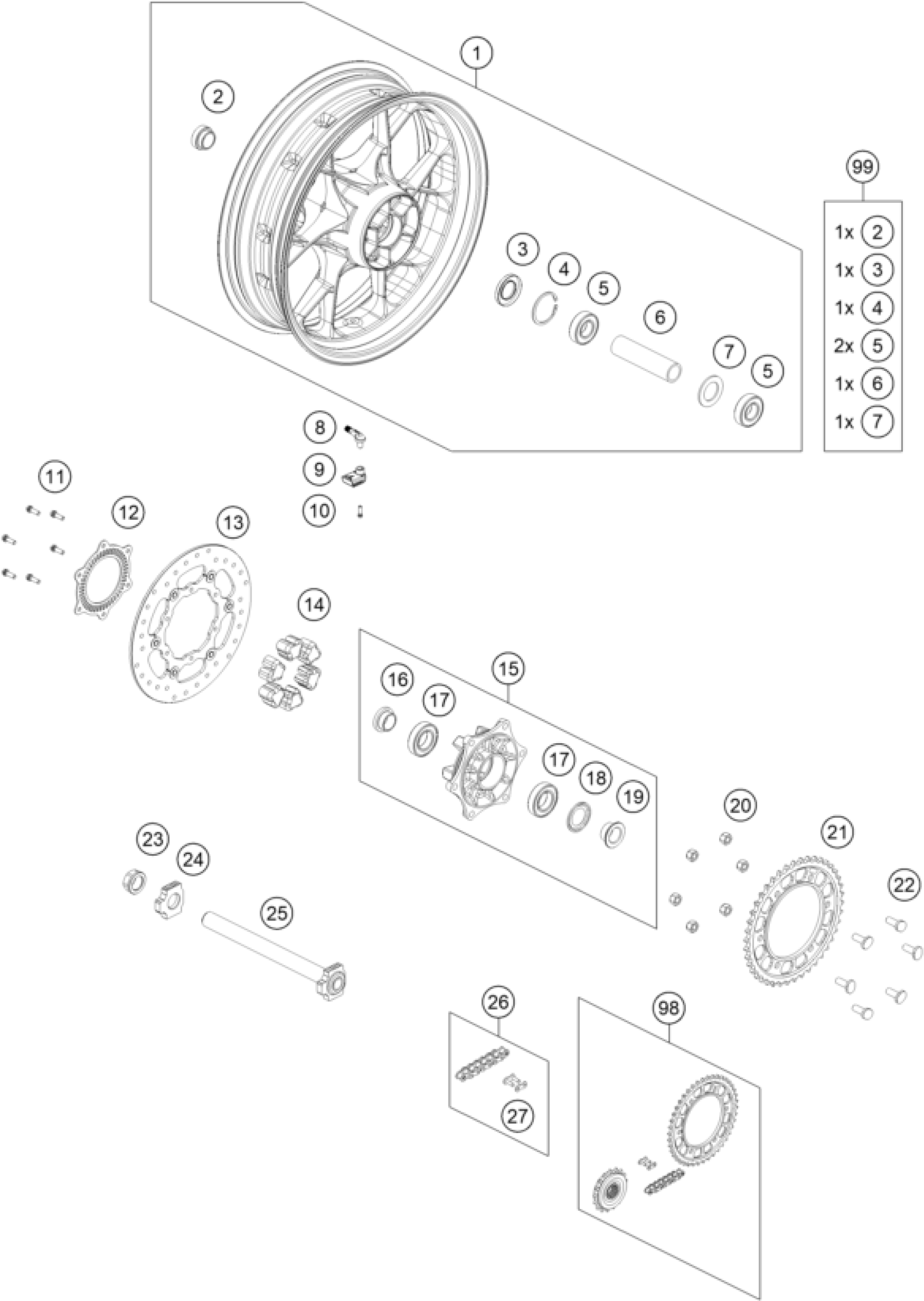

KTM 1390 SUPER ADVENTURE S, orange 2025 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel 5.0''X17'' KPL.

6071010104430

$608.49

2

distance sleeve rear wheel

60310013100

$18.13

3

Radial shaft seal 30X52X7

0760305271

$5.23

4

CIRCLIP DIN0472-52X2

0472052200

$3.08

5

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

6

Bearing spacing tube L=124.8mm

60010011000

$20.09

7

Spacer ring 03

60010015000

$10.56

8

Angle valve 8.3 mm for TPMS

61912033060

$20.84

9

Tire pressure sensor

61912033000

$74.51

10

Screw M5x15 for TPMS

0900000501500S

$3.08

11

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

12

Phonic wheel ABS, rear

60142021100

$21.59

13

BRAKE DISK REAR

6031006000030

$254.31

14

Rubber damping block 91

54610459000

$8.03

15

SPROCKET SUPPORT CPL. BLACK

6011005004433

$193.16

16

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

17

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

18

NILOS RING 6006AV

60110016000

$9.72

19

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

20

Hexag. nut DIN 980V M10X1.25 S

0980101253

$2.05

21

Rear sprocket 42 teeth

60010251042

Unavailable

22

SPROCKET SCREW M10X1,25 03

60010052000

$5.23

23

Collar nut M25X1.5 WS=32 05

61010086000

$17.20

24

Chain tension adjuster, right,

60010084000

$22.81

25

Wheel spindle, rear, cmpl.

60310081244

$88.35

26

Chain 525 SDZZ + rivet

60410165120

$138.09

27

MASTER LINK F.CHAIN 525 SDZZ

60410066000

$10.74

98

Drive set 1290 Adventure 2021

SPAB17G421M120J

Unavailable

99

REAR WHEEL REP. KIT ADV. 1050

60610015000

Unavailable
