SIDE TRIM

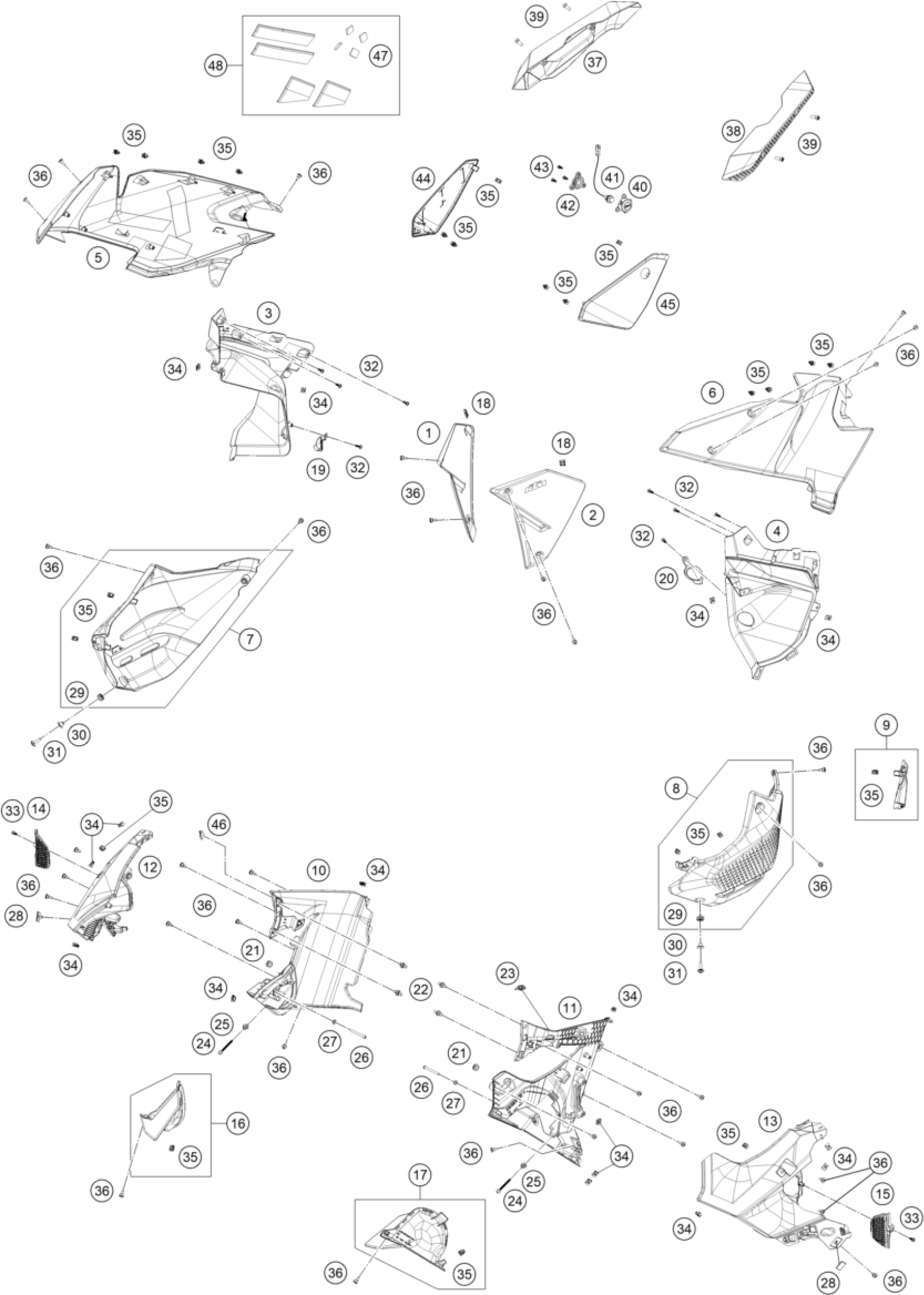

KTM 1390 SUPER ADVENTURE S EVO, black 2025 SIDE TRIM Diagram
#
1
Radiator spoiler right
A62608061000C1A
Unavailable
2
Radiator spoiler left cpl
A62608060000C1A
Unavailable
3
Fuel tank spoiler bottom part
A62608051020C1
Unavailable
4
Fuel tank spoiler bottom part
A62608050020C1
Unavailable
5
Fuel tank spoiler upper part r
A62608051010CBA
Unavailable
6
Fuel tank spoiler upper part l
A62608050010CBA
Unavailable
7
Tank protector right preass.
A62607026033C1
Unavailable
8
Tank protector left preass.
A62607025033C1
Unavailable
9
Oil filler plug cover preass.
A62607025066C1
Unavailable
10
Inner cover right
A62608026000C1
Unavailable
11
Inner cover left
A62608027000C1
Unavailable
12
Radiator shroud center right
A62608061010C1
Unavailable
13
Radiator shroud center left
A62608060010C1
Unavailable
14
Air intake cover right
A62608002080
Unavailable
15
Air intake cover left
A62608002060
Unavailable
16
Cornering light cover right
A62608026050
Unavailable
17
Cornering light cover left
A62608027050
Unavailable
18
DAMPING ELEMENT SILICON
27005011011
$8.50
19
Fuel tank spoiler right connec
A62608051030
Unavailable
20
Fuel tank spoiler left connect
A62608050030
Unavailable
21
rubber grommet 9x11x16x8.5 mm
60006001022
$2.05
22
Quick lock pin M6
A13008030000
Unavailable
23
Bracket. cornering light. left
A62608027030
Unavailable
24
Ball-head screw L=50
0900000505001
$4.48
25
INSERT FOR HEADLIGHT ENTRY
60414007030
$2.05
26
Oval-head screw ISO 7380-M5X50
0738050502
Unavailable
27
Bushing windshield fastening
61508008023
$5.23
28
Isolation pad
77307040041
$2.05
29
DAMP. COMPONENT ABS MODUL
62142041000
$4.11
30
Collar bushing 6,5x9x18x8.5
61342041100
$1.49
31
Collar screw M6x22-8.8 ISA30
69014117000
$2.05
32
EJOT PT screw K50x14
0081050141
$1.49
33
EJOT PT screw K50x12
0081050121
$2.05
34
RANGE CHANGE METAL NUT M5 INOX
54603048600
$2.05
35
Bracket for side fairing
61908040030
$1.69
36
Special screw, M5x14
69008021260
$2.05
37
Rear cover right, cmpl.
61908045044
$31.88
38
Rear cover left, cmpl.
61908044044
$31.88
39
Cap head bold ISO 14580 M6x16
014580060166
$2.05
40
Switch support, seat
61908043050
$12.05
41
Release switch, seat lock
61911069000
$66.00
42
Switch holder tip switch
61908043055
$8.97
43
EJOT Delta PT K40x12
0081040121
$3.08
44
Side fairing right rear
A62608042000C1
Unavailable
45
Rear sidecover left
A62608041000C1
Unavailable
46
Bracket cornering light right
A62608026030
Unavailable
47
METAMOLL F. TAIL LIGHT COVER
61408015030
$1.49
48
cellular rubberSet le + ri
61908050044
Unavailable
