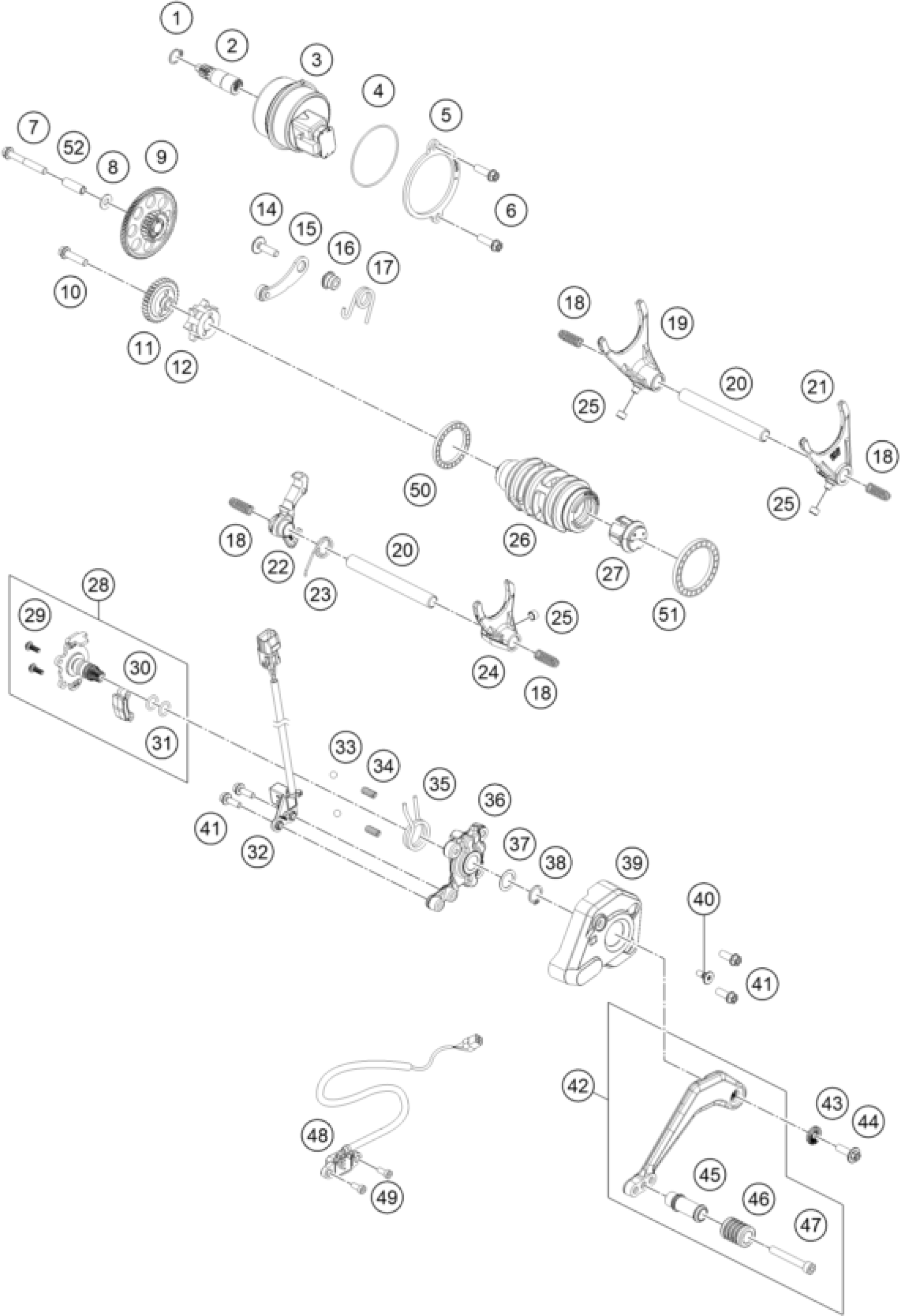

KTM 1390 SUPER ADVENTURE S EVO, black 2025 SHIFTING MECHANISM Diagram

#

Description
Price

1

retaining ring DIN 471 12x1

0471120010

Unavailable

2

Actuator shaft

A62634027000

Unavailable

3

Actuator

A62634045000

Unavailable

4

O-ring 56x1.5 NBR70

0770005615000

Unavailable

5

Shift drum actuator

A62634045010

Unavailable

6

HH collar screw M6x20 TX30

0025060206S

Unavailable

7

Hex coll. screw M6x45 ISA30 se

0000250604500S

Unavailable

8

shim

50337073000

Unavailable

9

Double gear

A62634040000

Unavailable

10

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

Unavailable

11

Gear wheel shift drum

A62634012010

Unavailable

12

Shift star cmpl.

A62634015000

Unavailable

14

Collar screw M6x22

0900000602201S

Unavailable

15

LOCKING LEVER CPL.

61434024000

Unavailable

16

Bearing pin for detent arm

A62634029000

Unavailable

17

Detent arm spring

0102701400300

Unavailable

18

Compression spring L=25mm D=0.

58038023400

Unavailable

19

Shift fork 1/4 gear

61734001000

Unavailable

20

SHIFT RAIL 11,8X105MM

59034020000

Unavailable

21

Shift fork 2/3 gear

61734002000

Unavailable

22

Locking pawl

A62634126000

Unavailable

23

Locking pawl spring

0102701500200

Unavailable

24

Shift fork 5/6 gear

61734003000

Unavailable

25

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

26

Shift drum cmpl.

A62634012000

Unavailable

27

Magnet bracket cmpl.

79234012020

Unavailable

28

shift shaft cpl.

A62634005033

Unavailable

29

EJOT Delta PT K40x12

0081040121

Unavailable

31

O--Ring 10x2 NBR 70

0036011020000

Unavailable

30

Magnet bracket

A62634050000

Unavailable

32

Shift assistant sensor

63534051000

Unavailable

33

ball D=6.0mm DIN5401

0054010600001

Unavailable

34

compression spring D=1.25mm

0102700500100

Unavailable

35

torsion spring D=3.0mm

0102702200300

Unavailable

36

bracket shift shaft cpl.

A62634010033

Unavailable

37

Shim ring DIN988 14x20x0.5

0009881405000

Unavailable

38

Lock ring DIN471 14x1

0004711410001

Unavailable

39

shift shaft sensor cover

A62634051010

Unavailable

41

HH Collar Screw M5x16 ISA30 SS

0025050166S

Unavailable

40

Screw, reservoir

69013099150

Unavailable

42

Gear shift lever cmpl.

A62634031033C1

Unavailable

43

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

44

HH collar screw M6x20 TX30

0024060206S

Unavailable

45

Gear shift lever tip

A63934032000

Unavailable

46

RUBBER FOR SHIFT LEVER 05

61034035000

Unavailable

47

AH SCREW DIN0912-M 6X45

0912060453

Unavailable

48

Gear position sensor

A60011023000

Unavailable

49

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

Unavailable

50

BALL BEARING 61805 C3

0625618050

Unavailable

51

GROOVED BALL BEARING 6808 JRC3

0625068080

Unavailable

52

Bearing bolt

0920001003200

Unavailable
