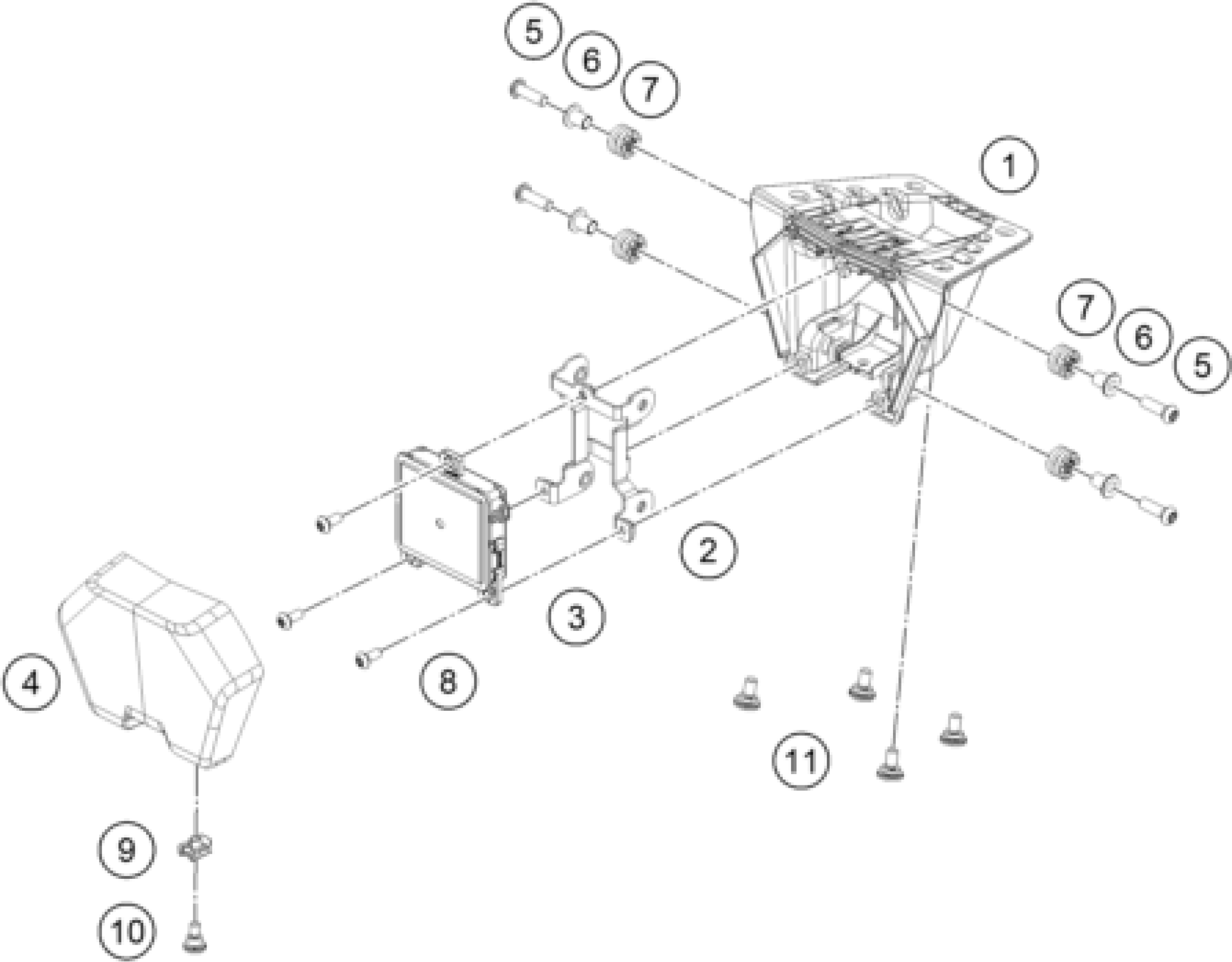

KTM 1390 SUPER ADVENTURE S EVO, black 2025 RIDER ASSISTANCE SYSTEM Diagram

#

Description

Price

1

Front radar sensor carrier out

A62614095100

Unavailable

2

Front radar sensor carrier int

A62614095110

Unavailable

3

Front radar sensor

A62742089000

Unavailable

4

Frontcover

A62614010020

Unavailable

5

Oval head screw ISR M6x20-A2-7

0738060205S

Unavailable

6

COLLAR BUSHING 6,2X7,5X13X12

76014062000

Unavailable

7

RUBBER SLEEVE 7X10,8X16MM

76014069051

Unavailable

8

cheese-head screw torx M5x12-A

073801050122S

Unavailable

9

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

10

Special screw, M5x14

69008021260

Unavailable

11

HH collar screw M6x20 TX30

0024060206

Unavailable
