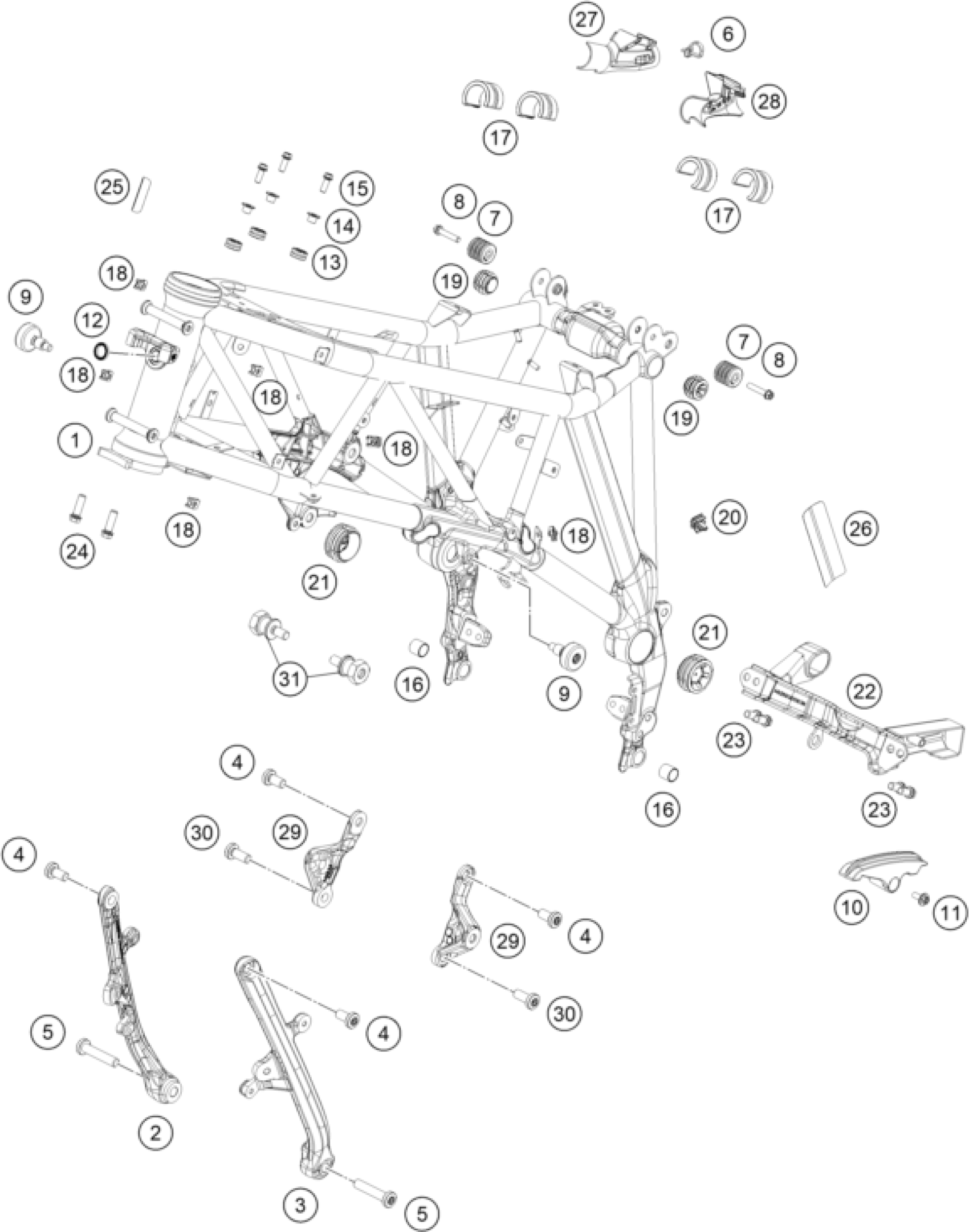

KTM 1390 SUPER ADVENTURE S EVO, black 2025 FRAME Diagram

#

Description
Price

1

Frame A626

A62603001000C1

Unavailable

2

Engine brace front right

A6260300500001

Unavailable

3

Engine brace front left

A6260300600001

Unavailable

4

Hex.screw M10x20 ISA45 MK

0035100209S

$2.05

5

AH collar screw M10x50 ISA45

0035100509S

$7.10

7

Rubber seat cowl pad

61907048100

$12.05

8

HH collar screw M6x30 TX30

0025060306S

$3.08

9

SPECIAL SCREW M8 06

62507026100

$19.81

10

Chain slider

A62603070000

Unavailable

11

HH collar screw M6x15 TX30

0024060156S

$2.05

12

Ignition lock gasket

61911066010

$3.08

13

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

14

Collar bushing 6.1x9.2x15x8.5x

00185006009U0

$2.05

15

HH collar screw M6x15 TX30

0024060156S

$2.05

16

Plain bearing

61903916050

$2.05

17

SPACER FUEL TANK 05

61007014000

$6.63

18

clip nut M5

69008021080

$3.08

19

Plug D=23.5

61903088000

$8.15

20

Socket connector clip

000700000HO001

$2.05

21

Plug, large

61703088000

$3.73

22

Lower cross tube com

A62603001036C1

Unavailable

23

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

24

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

25

Frame protection sticker

A62603093100

Unavailable

26

Frame protection sticker

A62603093000

Unavailable

27

Frame cover bracket right

A62603083000

Unavailable

28

Frame cover bracket left

A62603084000

Unavailable

6

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

29

Engine brace rear left

A6260300800001

Unavailable

30

HH collar screw M10x24 ISA45 S

0035100249S

$2.05

31

Spacer screw M10x20 SW24

0900001002000S

Unavailable
