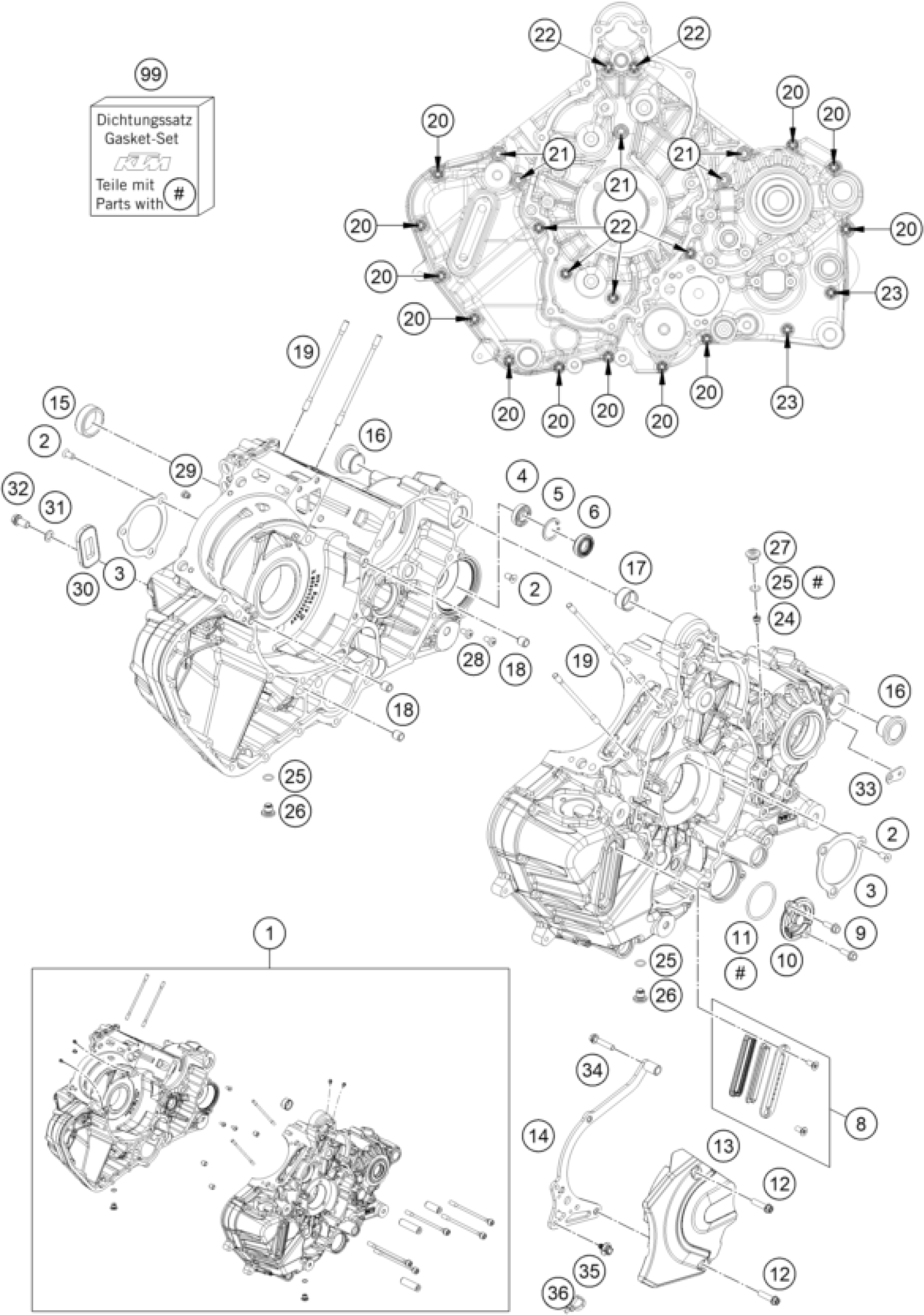

KTM 1390 SUPER ADVENTURE S EVO, black 2025 ENGINE CASE Diagram

#

Description
Price

1

Engine case cmpl.

A6263000004424

Unavailable

2

hex lobe countersunc screw M5x

0019050106S

Unavailable

3

BRACKET FOR BEARING INSERT 08

61230084000

Unavailable

8

OIL SIGHT GLASS CPL.

62638084044

Unavailable

9

HH collar screw M5x16 TX30

0025050166

Unavailable

10

oil filter cover

75038041200

Unavailable

11

O-RING 39,34X2,62

07700390261

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable

13

front sprocket cover cpl.

A62603196033

Unavailable

14

Chain guard cmpl.

T06230047133

Unavailable

15

SLIDE BEARING

61330157050

Unavailable

16

SWING BEARING OUTSIDE LC8 03

60030010000

Unavailable

17

DOWEL 20,1X24X12 03

60030023000

Unavailable

18

DOWEL 9,8 X7X10

49030090100

Unavailable

19

STUD M6X110 08

61230044000

Unavailable

20

HH collar screw M6x55 TX30

0025060556

Unavailable

21

Case screw M8x125

61230043100

Unavailable

22

HH COLLAR SCREW M6X90 TX30

0025060906

Unavailable

23

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

24

REDUCING JET ''30'' M6X0,75

60038029200

Unavailable

25

O-RING 9x1,5 V80 SH

07700900151

Unavailable

26

SCREW PLUG

77336056095

Unavailable

27

SCREW PLUG

77236080000

Unavailable

28

Oval head screw DIN 7985-M5x10

0018050103S

Unavailable

29

MAIN JET 100 DELLORTO

57031523100

Unavailable

30

SAS Reed Valve

60005026000

Unavailable

31

SEAL RING 8X14X1 AI

45038017000

Unavailable

32

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

33

Fastening Cable plate

A64104012065

Unavailable

99

Engine Gasket kit 1390

A62430099000

Unavailable

4

Grooved ball bearing 6901 C3

0006251200600

Unavailable

5

CIRCLIP DIN0472-24X1.2

0472024120

Unavailable

6

Rotary shaft lip-type seal 15x

0037601525000

Unavailable

34

HH collar screw M6x30 TX30

0025060306

Unavailable

35

Line holder D=5mm

0340001601800

Unavailable

36

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable
