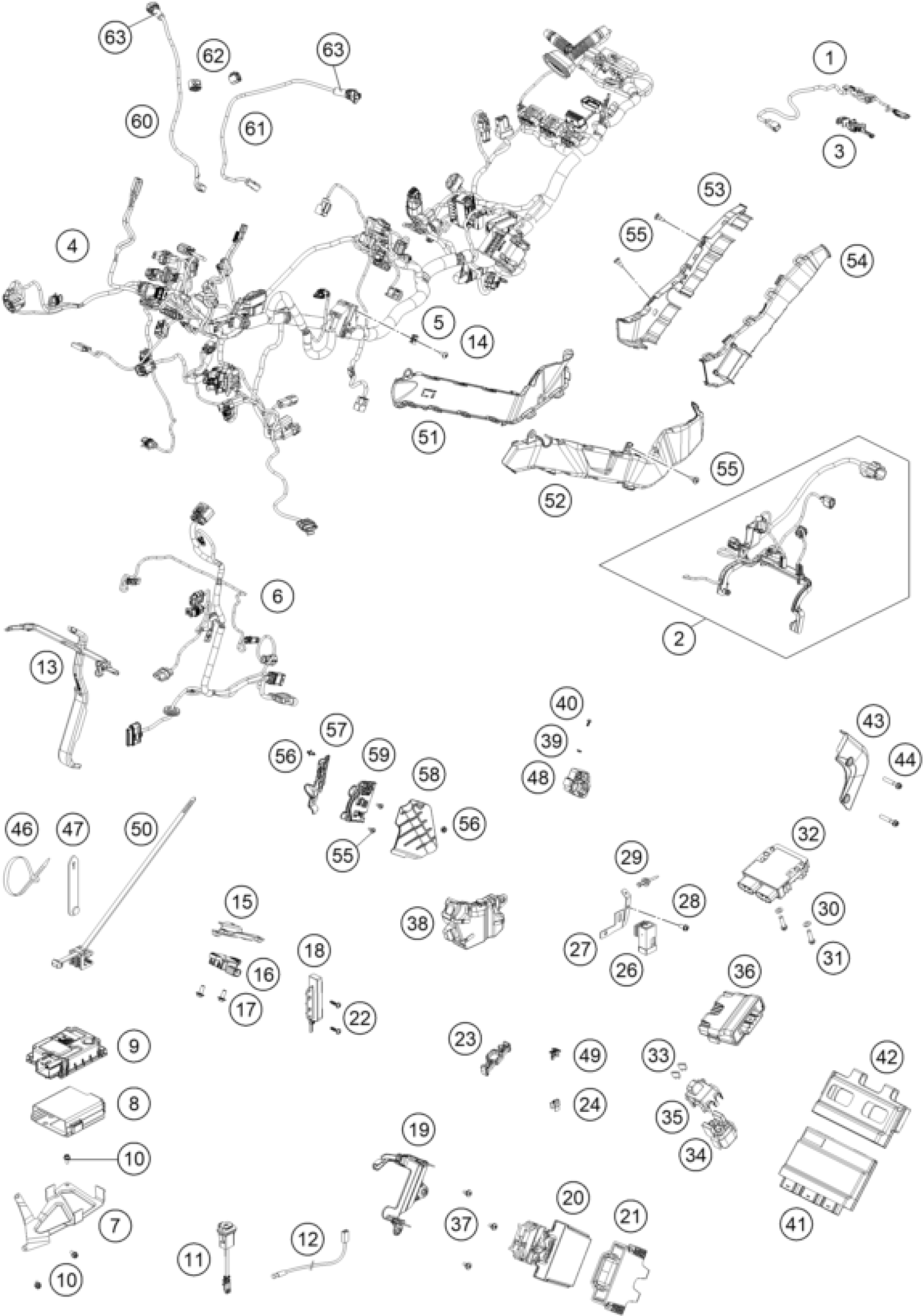

KTM 1390 SUPER ADVENTURE S, black 2025 WIRING HARNESS Diagram

#

Description
Price

1

Rear wiring harness

A62611076000

Unavailable

2

Engine wiring harness cmpl.

A62611085033

Unavailable

4

Main wiring harness

A62611275000

Unavailable

5

clip nut M5

69008021080

$3.08

6

Wiring harness mask

A62611078000

Unavailable

7

Connectivity Unit bracket

A62614086010

Unavailable

8

Connectivity unit 3.0 rubber s

A68114086050

Unavailable

9

Connectivity Unit

T02414086000

Unavailable

10

HH collar screw M5x10 TX30

0025050106

$1.49

11

USB-C power socket, 12-V

A62711043000

$60.58

12

Temperatur sensor

61111018100

$31.59

13

mask carrier harness cable cha

A62611047080

Unavailable

14

SCREW TORX M5X10

78105081010

$2.05

15

Retaining bracket lean angle s

61942090040

$41.79

16

Angle sensor

61542090000

$391.01

17

HH collar screw M6x15 TX30

0024060156S

$2.05

18

Race on antenna

61911168000

$78.81

19

Control unit bracket, BCU

A62611033010

Unavailable

21

Rubber band BCU

T03711033050

$9.81

22

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

23

HCU connection bracket

A62612064040

Unavailable

24

Plug clip

000700000EL003

$3.54

26

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

28

HH collar screw M6x10 TX30

0025060106

$3.08

29

Cable strap w.plug-in foot for

61711094100

Unavailable

30

PLASTIC WASHER 03

60007020040

$1.49

31

HH collar screw M6x25 TX30

0025060256

$3.08

32

Voltage regulator, 50 A

61911034000

$172.97

33

Plug-in fuse, big 30A

58011109130

$2.05

34

Starter relay

76211058000

$79.19

35

Cover flap, starter relay

64111058110

$3.08

36

Control unit semi-active chass

61916031000

$550.61

37

special screw M5x12

69008021160

$4.11

38

Rubber connector box

A62611083060

Unavailable

39

collar bushing D5x2

28508025010

Unavailable

40

EJOT PT screw K50x12

0081050121

$2.05

41

engine control unit KTKZ

A62641031000

Unavailable

42

Rubber mount ECU

61741031050

$18.60

43

plug cover

A62611084000

Unavailable

44

HH collar screw M6x35 TX30

0025060356

$3.08

46

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

46

Cable tie 200/4.6mm black

44011076200

Unavailable

46

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

47

RUBBER CABLE TIE 60MM 03

60011093060

$4.11

48

Rubber connector board

A62611083050

Unavailable

49

Socket connector clip

000700000KE001

$2.05

50

Cable tie with foot section

0330000520000

Unavailable

20

BCU1.0 PRM

T03711133000

Unavailable

51

main cable channel

A62611047040

Unavailable

52

cover main cable channel

A62611047030

Unavailable

53

cover main cable channel

A62611047010

Unavailable

54

main cable channe

A62611047020

Unavailable

55

Special screw, M5x14

69008021260

$2.05

56

Spread rivet cmpl. 6.2mm

76503075000

$3.08

3

license plate holder harness c

A62611047090

Unavailable

59

Connector support center

A62611083010

Unavailable

57

Connector support right

A62611083030

Unavailable

58

Connector support left

A62611083020

Unavailable

27

Retaining bracket, relay

A62611057050

Unavailable

61

Adaptercable combination switc

A62611075010

Unavailable

60

Adaptercable combination switc

A62611075020

Unavailable

63

Protection cap combination swi

A62611070010

Unavailable

62

RUBBER CABLE TIE 45MM 03

60011093045

$3.08
