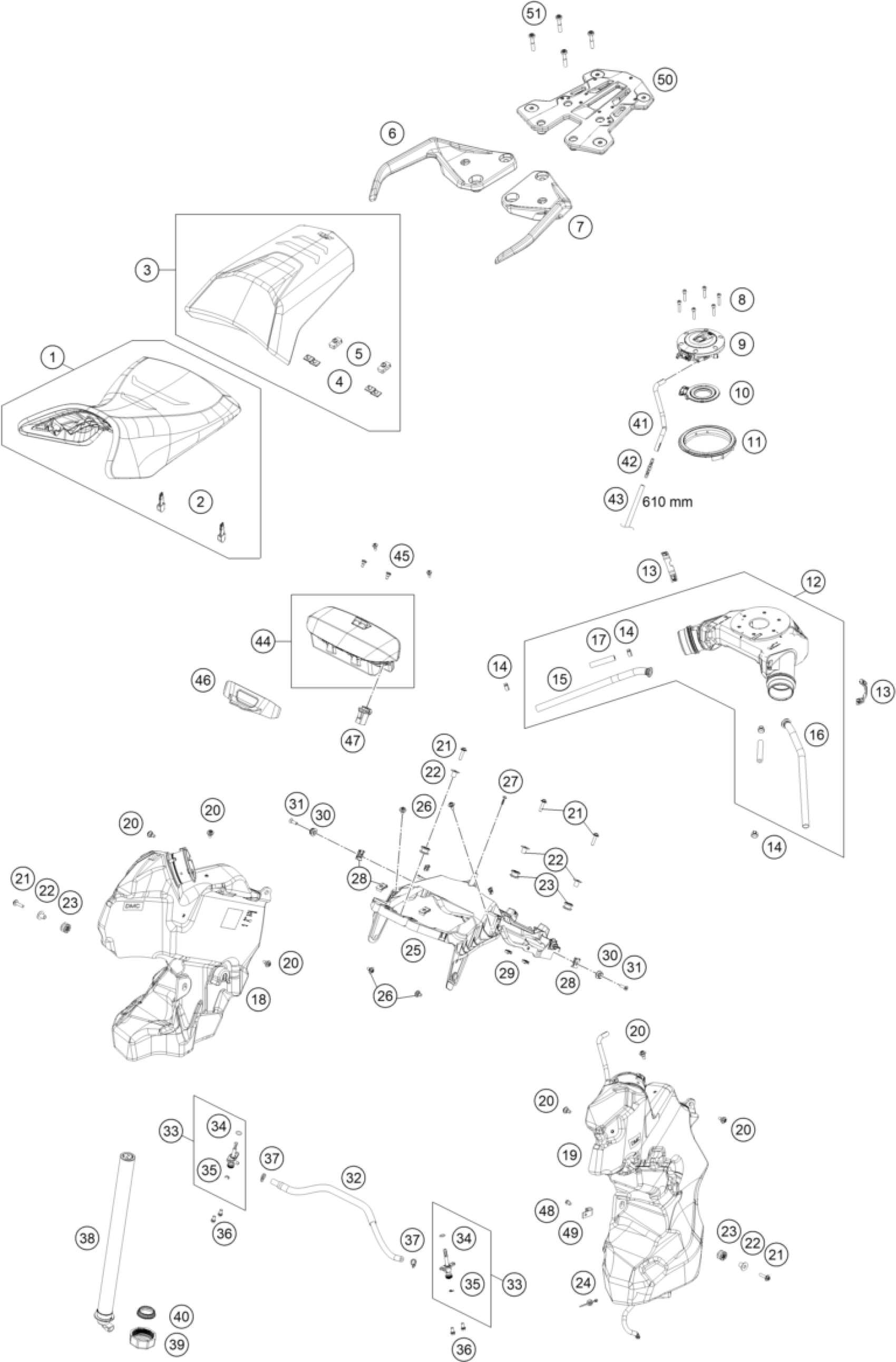

KTM 1390 SUPER ADVENTURE S, black 2025 TANK, SEAT Diagram

#

Description
Price

1

Rider seat S cmpl.

A62607040000C1A

Unavailable

2

Seat base rubber

A62607040015

Unavailable

3

Passenger seat S

61907047100C1A

Unavailable

4

Isolation pad

77307040041

Unavailable

5

Rubber support

28503002010

Unavailable

6

Grip handle right

61912009000

Unavailable

7

Grip handle left

61912008000

Unavailable

8

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

9

Fuel tank cap

61907008100

Unavailable

10

Fuel tank cap gasket

61907008110

Unavailable

11

Fuel tank cap ring

61907009000

Unavailable

12

Top fuel tank pre-assembly

A62607013066

Unavailable

13

Preload spacer tank connection

A62607013085

Unavailable

14

VARIABLE ONE-EAR CLAMP 14,0MM

00050140706

Unavailable

15

Inner vent hose right

61907013071

Unavailable

16

Inner vent hose

61907013070

Unavailable

17

Hose 6x13 FKM/ECO L=70

0600000607000

Unavailable

18

Fuel tank right cpl.

61907013225

Unavailable

19

Fuel tank left cpl.

A62607013015

Unavailable

20

Special screw M6x15x5.5

83008100015

Unavailable

21

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

22

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

Unavailable

23

rubber grommet, tank mounting

69007027000

Unavailable

24

Cable strap w.plug-in foot for

61711094100

Unavailable

25

Fuel tank carrier

A62607013050

Unavailable

26

special screw M6x12x3

83008000012

Unavailable

27

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

28

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

29

clip nut M6

54603048100

Unavailable

30

Seat bushing

63507040070

Unavailable

31

Count.snk screw M6x20 TX30

014581060201

Unavailable

32

Tank compensation line cmpl.

61907117033

Unavailable

33

Fuel cock cmpl.

58507003200

Unavailable

34

O-RING 11X1,8 NBR 70

55007006200

Unavailable

35

TAB WASHER DIN6799 RS5

0799050000

Unavailable

36

HH collar screw M6x12 TX30

0025060126

Unavailable

37

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

38

Fuel level sensor

61907080000

Unavailable

39

Sleeve nut, fuel level sensor

61907080020

Unavailable

40

Gasket, fuel level sensor

61907080010

Unavailable

41

Pre-formed hose for tank overf

61907020000

Unavailable

42

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

43

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

44

Storage compartment cmpl.

A62608046033AB

Unavailable

45

Special screw, M5x14

69008021260

Unavailable

46

Storage compartment cover

A62608046050

Unavailable

47

USB-C power socket, 12-V

A62711043000

Unavailable

48

HH collar screw M6x10 TX30

0025060106

Unavailable

49

Fastening clamp 10 mm

032000151000

Unavailable

50

Luggageholder Plate

A62612010150

Unavailable

51

AH-COLLAR SCREW M8X40 ISA45

0035080406

Unavailable
