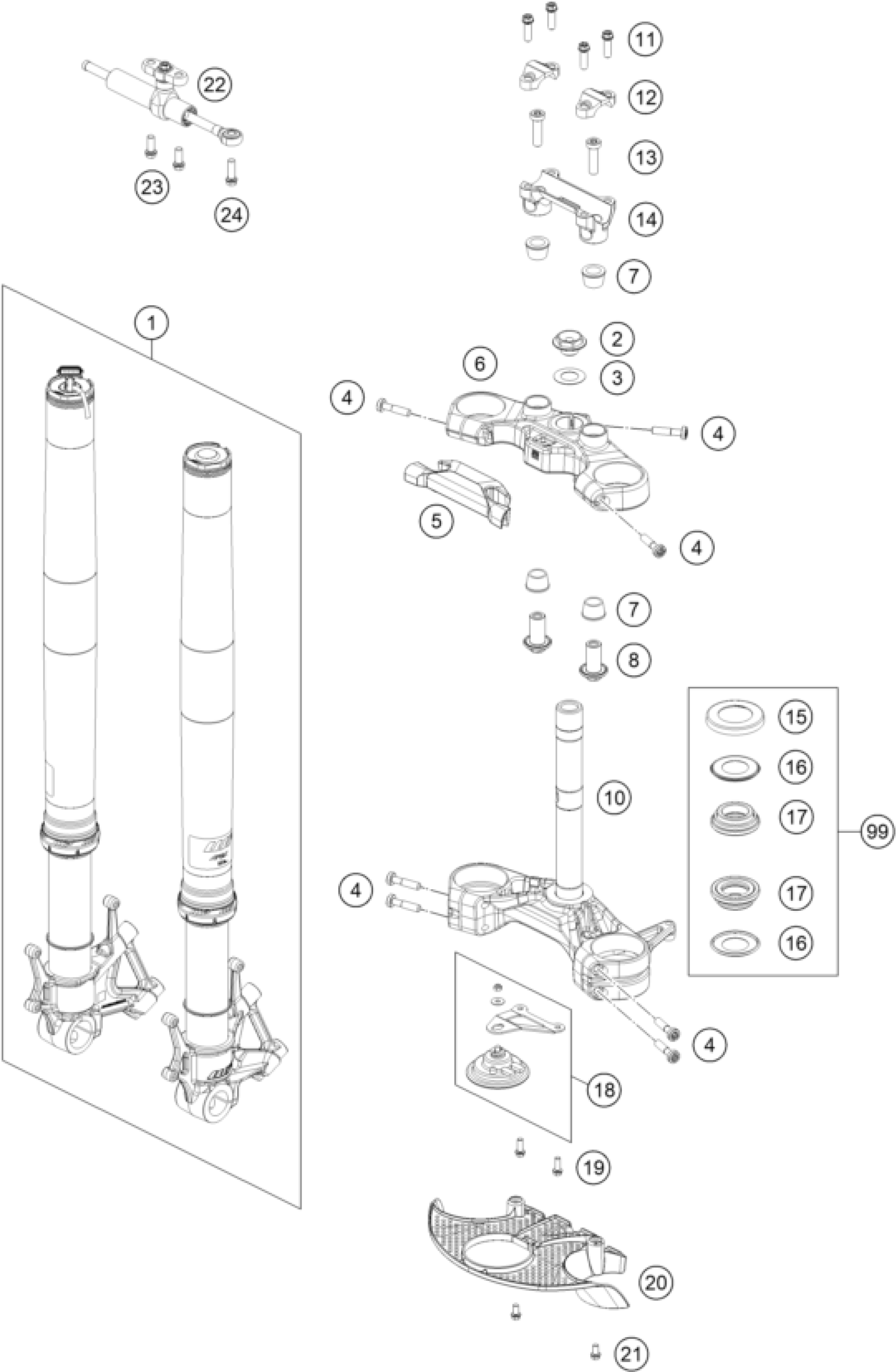

KTM 1390 SUPER ADVENTURE S, black 2025 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

A626C126Y407044

Unavailable

2

Steering head screw M20x1.5 SW

54801036300C1

Unavailable

3

Shim ring

63601042000

Unavailable

4

AH-COLLAR SCREW M8X35 ISA45

0035080356

Unavailable

5

Cable protection triple clamp

A62601034015C1

Unavailable

15

PROT. RING STEER. HEAD BEARING

69001086100

Unavailable

16

Stearing head gasket

69001084100

Unavailable

17

STEERINGHEAD KPL.17

69001181000

Unavailable

10

Bottom triple clamp cmpl. X=32

A62601032032C1

Unavailable

11

HH collar screw M8x25

0025080256

Unavailable

12

HANDLEBAR CLAMP 28MM

7720103800030

Unavailable

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

14

Handlebar mount D28 mm-H36 mm

79001139036C1

Unavailable

18

Horn cmpl.

61911060033

Unavailable

19

HH collar screw M6x16 TX30

0025060166

Unavailable

20

Triple clamp cover, bottom

61908024100

Unavailable

21

HH collar screw M6x16 TX30

0025060166

Unavailable

6

Top triple clamp X=32 mm

A62601034032C1

Unavailable

22

STEERING DAMPER CPL.

16181N53ES

Unavailable

23

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

24

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

99

Stearing head rep. Kit

69001181010

Unavailable

7

RUBBER BUSH

83001040000

Unavailable

8

HANDLEBAR SUPPORT LOWER PART

79001037034

Unavailable
