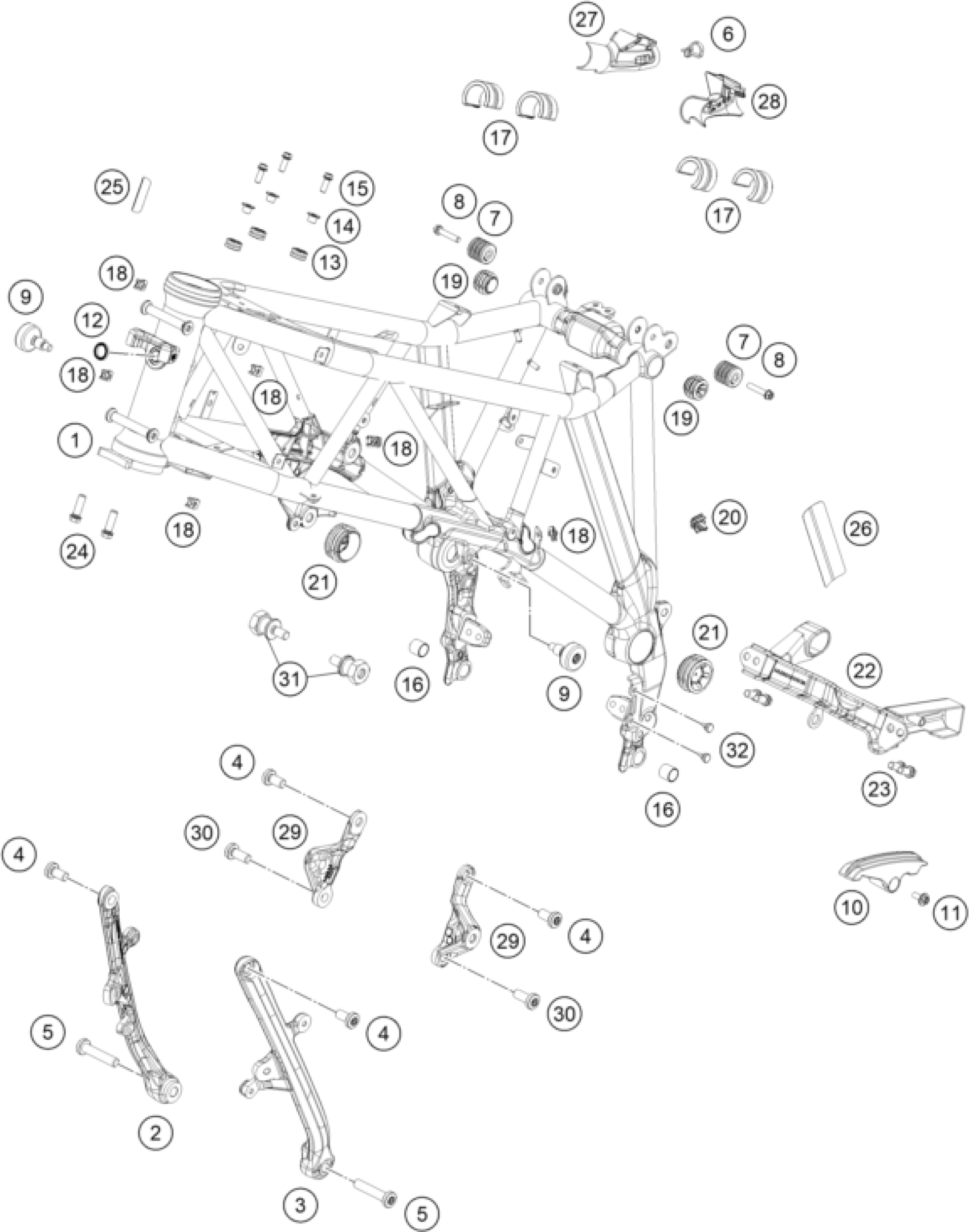

KTM 1390 SUPER ADVENTURE S, black 2025 FRAME Diagram

#

Description
Price

1

Frame A626

A62603001000C1

Unavailable

2

Engine brace front right

A6260300500001

Unavailable

3

Engine brace front left

A6260300600001

Unavailable

4

Hex.screw M10x20 ISA45 MK

0035100209S

Unavailable

5

AH collar screw M10x50 ISA45

0035100509S

Unavailable

6

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

7

Rubber seat cowl pad

61907048100

Unavailable

8

HH collar screw M6x30 TX30

0025060306S

Unavailable

9

SPECIAL SCREW M8 06

62507026100

Unavailable

10

Chain slider

A62603070000

Unavailable

11

HH collar screw M6x15 TX30

0024060156S

Unavailable

12

Ignition lock gasket

61911066010

Unavailable

13

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

14

Collar bushing 6.1x9.2x15x8.5x

00185006009U0

Unavailable

15

HH collar screw M6x15 TX30

0024060156S

Unavailable

16

Plain bearing

61903916050

Unavailable

17

SPACER FUEL TANK 05

61007014000

Unavailable

18

clip nut M5

69008021080

Unavailable

19

Plug D=23.5

61903088000

Unavailable

20

Socket connector clip

000700000HO001

Unavailable

21

Plug, large

61703088000

Unavailable

22

Lower cross tube com

A62603001036C1

Unavailable

23

HH collar screw M8x16 TX40 SL

0025080166S

Unavailable

24

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

25

Frame protection sticker

A62603093100

Unavailable

26

Frame protection sticker

A62603093000

Unavailable

27

Frame cover bracket right

A62603083000

Unavailable

28

Frame cover bracket left

A62603084000

Unavailable

29

Engine brace rear left

A6260300800001

Unavailable

30

HH collar screw M10x24 ISA45 S

0035100249S

Unavailable

31

Spacer screw M10x20 SW24

0900001002000S

Unavailable

32

DAMPER

94503002065

Unavailable
