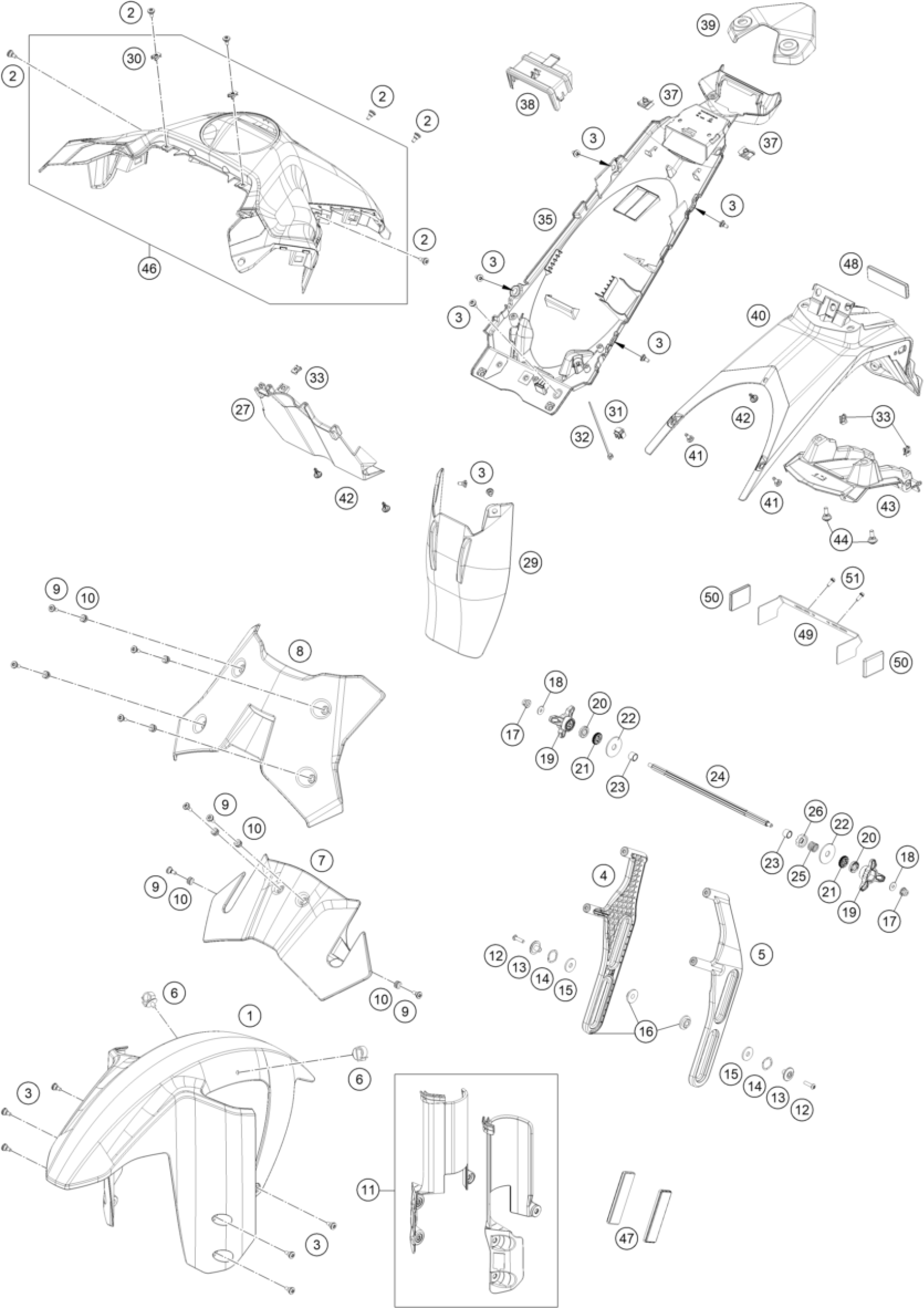

KTM 1390 SUPER ADVENTURE R OT 2025 MASK, FENDERS Diagram

#

Description
Price

1

Fender front

A62608110000AB

Unavailable

2

Special screw, M5x14

69008021260

Unavailable

3

special screw M5x12

69008021160

Unavailable

4

Windshield bracket left

A62608008050

Unavailable

5

Windshield bracket right

A62608008051

Unavailable

6

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

7

Headlight mask

A62608001000

Unavailable

8

Windshield low DOT

A62608308000

Unavailable

9

Special screw M5x14

60708008071

Unavailable

10

rubber bush windshield fixatio

60708008070

Unavailable

11

fork protector kit SuperAdvent

A62608110044

Unavailable

12

Lens head screw ISO 7380-M5X20

0738050202

Unavailable

13

Collar bushing

0800000501400

Unavailable

14

Spring washer 23.5x18.26x0.25

0690002400200

Unavailable

15

Washer D=24/T=2.5

60708008062

Unavailable

16

Bearing sleeve

60708008052

Unavailable

17

STOP NUT M6 DIN6926 A2-70

0926060000

Unavailable

18

Washer DIN9021-A 6.4

0021060003

Unavailable

19

Adjusting wheel

60708008053B2

Unavailable

20

Windshield support rubber

60708008057

Unavailable

21

GEAR 16TH ADJUSTMENT

60408008155

Unavailable

22

Washer D=36/T=2

60708008063

Unavailable

23

Plain bearing

60708008064

Unavailable

24

Windshield adjustment shaft

A62608008054

Unavailable

25

Spring windshield

60708008067

Unavailable

26

Toothed washer, outer

61908008065

Unavailable

27

Rear panel cover front

A62608019010

Unavailable

29

SPLASH PROTECTION

60304050000

Unavailable

30

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

31

Cable tie staple

0340001401400

Unavailable

32

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

33

clip nut M5

69008021080

Unavailable

35

Tail end lower part

A62608019000C1

Unavailable

37

clip nut M6

54603048100

Unavailable

38

Lower rear panel

61908019020

Unavailable

39

Rear cover, preassembled

61908013033

Unavailable

40

License plate holder

A62608015000C1

Unavailable

41

special screw M5x17

69008021060

Unavailable

42

Spread rivet cmpl. 6.2mm

76503075000

Unavailable

43

License plate holder support l

A62608016000

Unavailable

44

SCREW M6X20X5,5

83008100020

Unavailable

46

Fuel tank fairing preass.

A62607058033AB

Unavailable

47

SIDE REFLECTOR YELLOW "CEV"

60012080100

Unavailable

48

Reflector, red self-adhesive

61912080000

Unavailable

51

HH collar screw M6x16 TX30

0025060166

Unavailable

50

SIDE REFLECTOR RED REAR

16512180100

Unavailable

49

Bracket side reflector

62512081200

Unavailable
