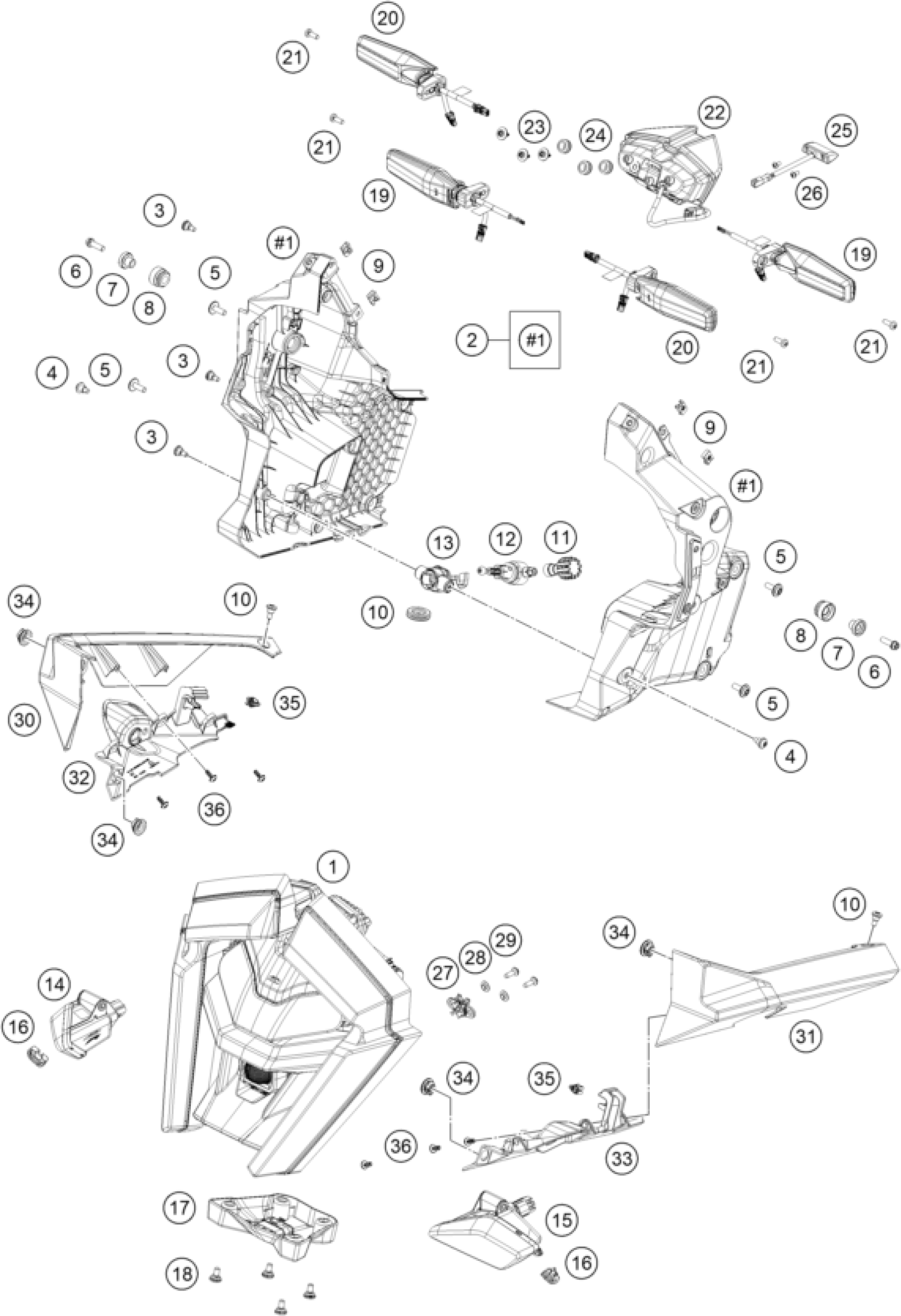

KTM 1390 SUPER ADVENTURE R OT 2025 LIGHTING SYSTEM Diagram

#

Description
Price

1

Headlight

A62614001000

Unavailable

2

mask support

A62614010044

Unavailable

3

Special screw, M5x14

69008021260

$2.05

4

Oval head screw M5x14 TX25

58605083014

$3.08

5

special screw M6x18-8.8 ISA30

69014017000S

$2.05

6

HH collar screw M6x20 TX30

0025060206

$3.08

7

Plug-in element headlight

60714011060

$14.76

8

Bush headlight fixation

60714011050

$6.54

9

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

10

Gummitülle d 22.5/5/2

64106001025

$2.05

11

Thumbwheel headlight adjust.

60714023000

$4.11

12

Adjuster cmpl.

60714020100

$24.77

13

Headlight support

60714024100

$31.78

14

Cornering light right

A63714008000

Unavailable

15

Cornering light left

A63714007000

Unavailable

16

Screw clamp

A63714007040

Unavailable

17

Connector cover

A62614010030

Unavailable

18

special screw M6x14

69008021040

$2.05

19

Turn signal DOT SAE front r./r

T03014526000

$68.71

20

Turn signal DOT SAE front le./

T03014525000

$68.71

21

Flat-head screw ISO 14583-M5x1

0145830501400

Unavailable

22

Tail light

63514040000

$169.60

23

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

24

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

25

License plate lighting

61914047000

$32.16

26

Oval-head screw ISR M4x8-A2-07

0738010400800

$1.49

27

Ball-head holder

A60714020020

$6.63

28

Collar bushing 5.5x7x13x3.3

61412132010

$1.49

29

EJOT PT SCREW K50X16 1451

0081050161

$1.49

30

cover mask support carrier rig

A62608006010

Unavailable

31

cover mask support carrier lef

A62608005010

Unavailable

32

Turn signal bracket carrier ma

A62614010015

Unavailable

33

Turn signal bracket carrier ma

A62614010010

Unavailable

34

quick release rubber grommet

47106003160

$4.11

35

Bracket for side fairing

61908040030

$1.69

36

EJOT PT screw K50x12

0081050121

$2.05
