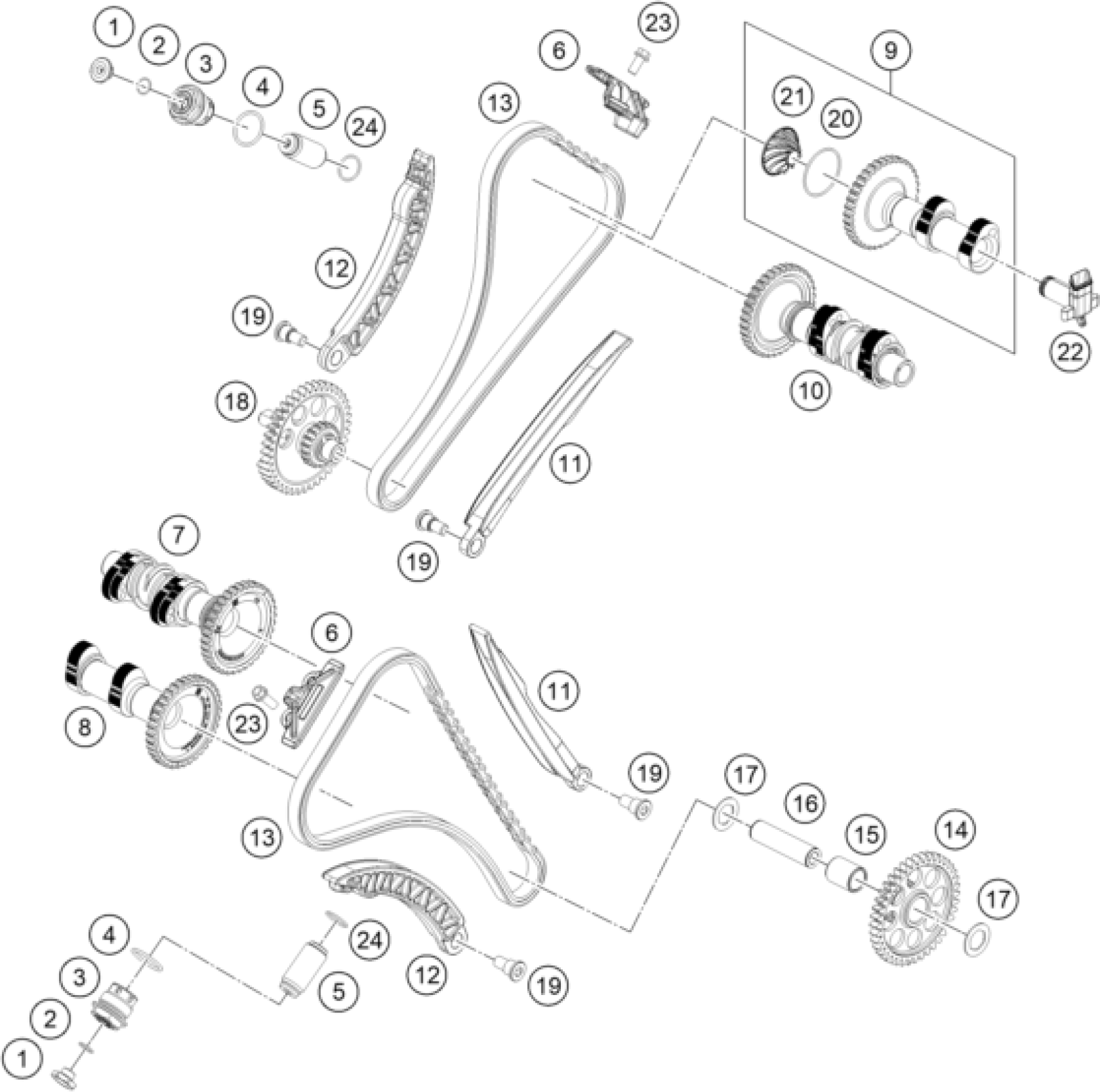

KTM 1390 SUPER ADVENTURE R 2025 TIMING DRIVE Diagram

#

Description
Price

1

threaded plug

77236080100

$6.63

2

o-ring 10.00x1.00 NBR70

0770010010

$2.05

3

chain tension adjuster plug cp

61236008200

$30.38

4

o-ring 22.00X2.00 NBR70

0770220020

$2.05

5

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

6

GUIDE RAIL TOP 08

61236005000

$17.48

7

Front intake camshaft

A60036009144

$438.60

8

Exhaust camshaft front

A62636010000

Unavailable

9

Exhaust camshaft rear cmpl.

A62636110044

Unavailable

10

Rear intake camshaft

A60036109144

$438.60

11

GUIDE RAIL 08

61236001000

$7.00

12

TENSIONER RAIL 08

61236002000

$5.79

13

TIMING CHAIN 118 ROLLS

61236113000

$41.69

14

TIMING DRIVE IDLER GEAR L/S

61230057100

$106.39

15

NEEDLE BEARING K 15X19X24ZW

0405151924

$17.76

16

BEARING BOLT 15X57,5 08

61230057050

$15.98

17

STOP DISK 15,2X25X1

61230057060

$4.11

18

IDLER GEAR R/S

61330157000

$157.82

19

hex socket head shoulder screw

61236002050

$5.23

20

O-RING 33X1,5 FPM75

0770330015

$1.49

21

CENTRIFUGE CONE

61236080100

$5.88

22

ANGLE PIECE F. BREATHER SYSTEM

61236081000

$6.07

23

HH collar screw M6x20 TX30

0025060206

$3.08

24

o-ring 18.00x2.00 NBR70

0770180020

$2.05
