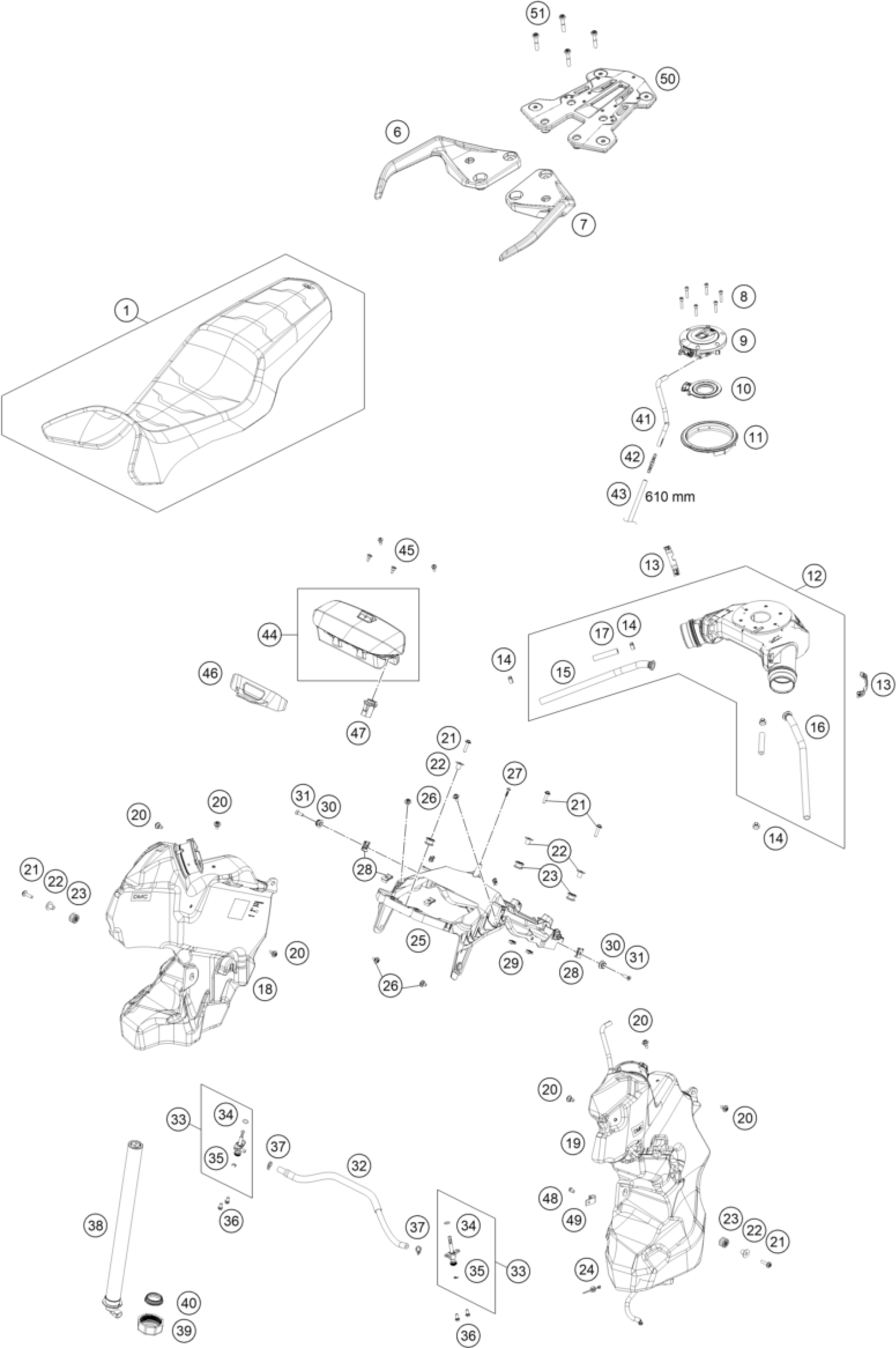

KTM 1390 SUPER ADVENTURE R 2025 TANK, SEAT Diagram

#

Description
Price

1

Rider seat R

A62607140000C1A

Unavailable

6

Grip handle right

61912009000

$40.20

7

Grip handle left

61912008000

$36.54

8

AH SCREW DIN0912-M 5X25

0912050253

$1.49

9

Fuel tank cap

61907008100

Unavailable

10

Fuel tank cap gasket

61907008110

$18.22

11

Fuel tank cap ring

61907009000

$6.82

12

Top fuel tank pre-assembly

A62607013066

Unavailable

13

Preload spacer tank connection

A62607013085

Unavailable

14

VARIABLE ONE-EAR CLAMP 14,0MM

00050140706

$2.05

15

Inner vent hose right

61907013071

$40.57

16

Inner vent hose

61907013070

$40.57

17

Hose 6x13 FKM/ECO L=70

0600000607000

Unavailable

18

Fuel tank right cpl.

61907013225

Unavailable

19

Fuel tank left cpl.

A62607013015

Unavailable

20

Special screw M6x15x5.5

83008100015

$3.08

21

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

22

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

23

rubber grommet, tank mounting

69007027000

$3.08

24

Cable strap w.plug-in foot for

61711094100

$2.05

25

Fuel tank carrier

A62607013050

Unavailable

26

special screw M6x12x3

83008000012

$3.08

27

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

28

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

29

clip nut M6

54603048100

$4.11

30

Seat bushing

63507040070

$5.23

31

Count.snk screw M6x20 TX30

014581060201

$1.49

32

Tank compensation line cmpl.

61907117033

$55.06

33

Fuel cock cmpl.

58507003200

$26.55

34

O-RING 11X1,8 NBR 70

55007006200

$2.05

35

TAB WASHER DIN6799 RS5

0799050000

$1.49

36

HH collar screw M6x12 TX30

0025060126

$3.08

37

CLAMP YDNAC 10128 12MM

58031005000

$3.08

38

Fuel level sensor

61907080000

$105.55

39

Sleeve nut, fuel level sensor

61907080020

$13.36

40

Gasket, fuel level sensor

61907080010

$16.82

41

Pre-formed hose for tank overf

61907020000

$17.57

42

HOSE CONNECTION STRAIGHT

69015019010

$5.23

43

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

44

Storage compartment cmpl.

A62608046033AB

Unavailable

45

Special screw, M5x14

69008021260

$2.05

46

Storage compartment cover

A62608046050

Unavailable

47

USB-C power socket, 12-V

A62711043000

$60.58

48

HH collar screw M6x10 TX30

0025060106

$3.08

49

Fastening clamp 10 mm

032000151000

Unavailable

50

Luggageholder Plate

A62612010150

Unavailable

51

AH-COLLAR SCREW M8X40 ISA45

0035080406

$5.23
