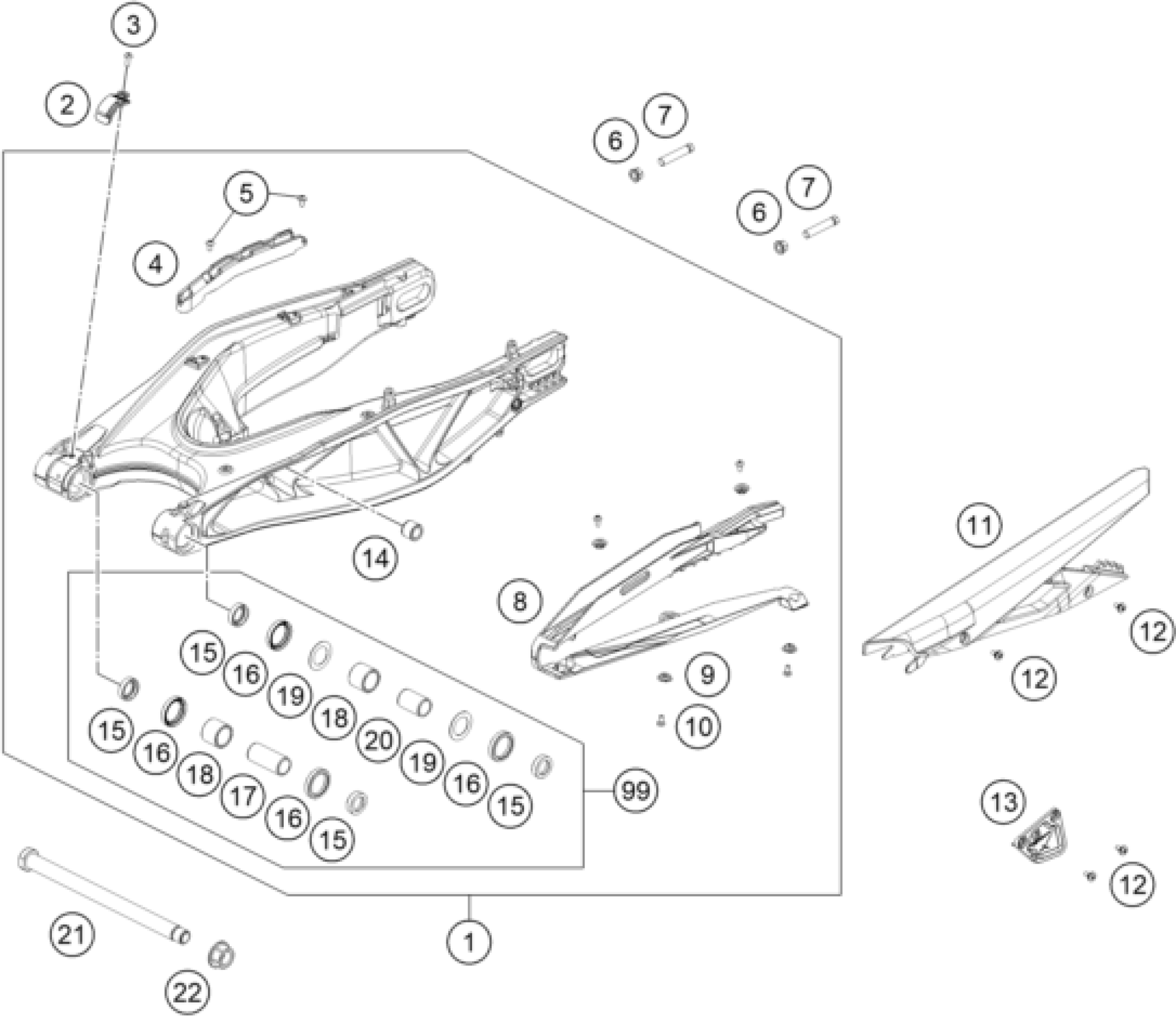

KTM 1390 SUPER ADVENTURE R 2025 SWING ARM Diagram

#

Description
Price

1

Swingarm cpl. 1390 ADV

A62604030044C1

Unavailable

2

MAGNET HOLDER

60416061000

$52.73

3

Oval head screw M5x14 TX25

58605083014

$3.08

4

Brake line holder

61904043000

$9.00

5

SCREW TORX M5X10

78105081010

$2.05

6

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

7

screw M10x1.25x50 WS10

50304040100

$5.23

8

Chain slider

A62604066000

Unavailable

9

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

10

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

11

Chainguard

61904061000

$18.69

12

special screw M5x12

69008021160

$4.11

13

Chain guide

61904070000

$13.36

14

BUSHING MONOSHOCK SOCKET 05

60004030151

$15.89

15

Bucket f. shaft seal ring 03

60004034000

$8.03

16

Radial shaft seal 30X40X7

0760304073

$4.11

17

Inner ring JR 20X25X56.5

69004032000

$36.08

18

NEEDLE BUSH HK2526B 03

60004031000

$10.65

19

Stop disk 03

60004033000

$2.05

20

INNER RING JR20X25X38,5 03

60004032000

$18.13

21

Swingarm pivot

69004037344

$73.76

99

swingarm rep. kit

69004230010

Unavailable

22

Collar nut M19X1.5 SW=27MM

60004038200

$17.94
