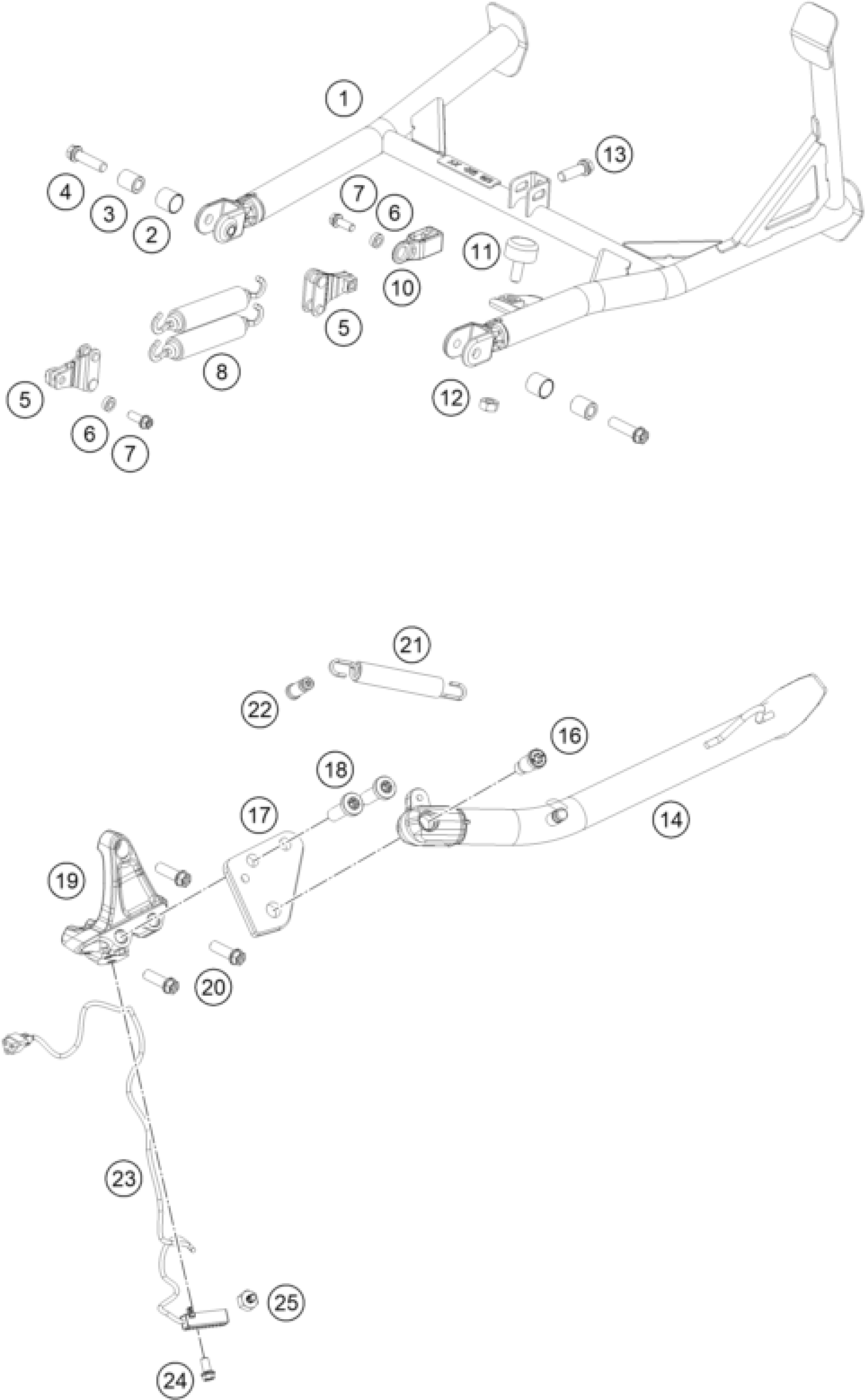

KTM 1390 SUPER ADVENTURE R 2025 SIDE / CENTER STAND Diagram

#

Description
Price

1

Centre stand

61903122000C1

Unavailable

2

Plain bearing

61903916050

Unavailable

3

Bushing

61903916020

Unavailable

4

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

5

Rear spring mount, cmpl.

61903022026C1

Unavailable

6

Bearing bush, internal spring

61903022010

Unavailable

7

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

8

SIDESTAND SPRING L=118MM

60303030100

Unavailable

10

Swivel joint support

61903022024C1

Unavailable

11

BUMP RUBBER M8X25MM

58303070100

Unavailable

12

Hexagon nut DIN934 M8

0934080003

Unavailable

13

HH collar screw M8x25

0025080256

Unavailable

14

Side stand

A62603123000C1

Unavailable

16

Screw for side stand M10x31.2

62503027200

Unavailable

17

Side stand bracket

A62603026050

Unavailable

18

AH collar screw M10x30 ISA45

0035100309S

Unavailable

19

Side stand bracket

A62603026000C1

Unavailable

20

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

21

SIDE STAND SPRING

60303024100

Unavailable

22

Special screw, side stand prin

61303028001

Unavailable

23

Side stand sensor

96311045000

Unavailable

24

Hex collar screw M6x12 ISA30 s

0025060126S

Unavailable

25

Magnet bracket cmpl.

A62603027000

Unavailable
