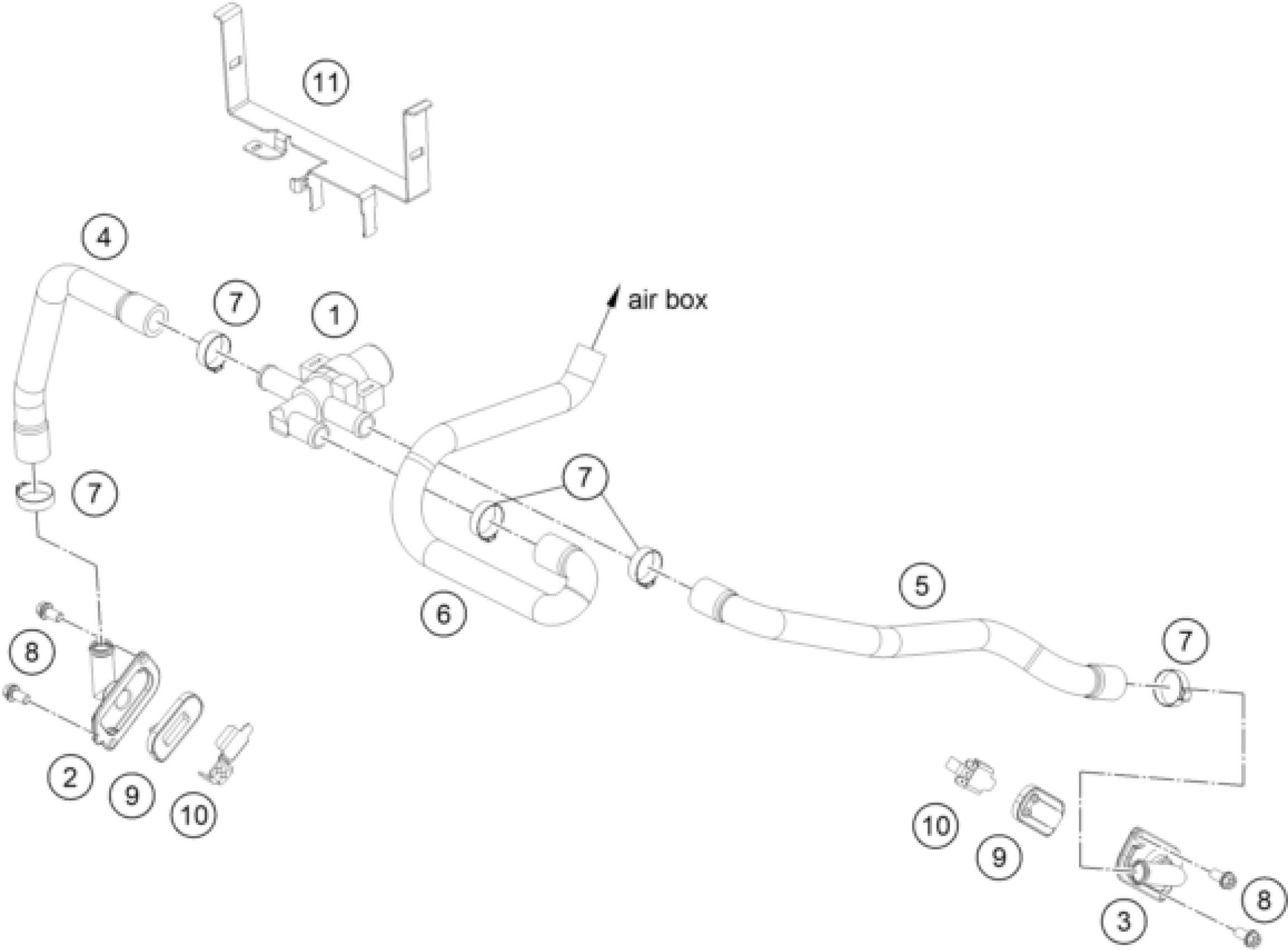

KTM 1390 SUPER ADVENTURE R 2025 SECONDARY AIR SYSTEM SAS Diagram

#

Description

Price

1

CONTROL VALVE SAS 05

61005026000

Unavailable

2

Secondary air system flange

61705022000

Unavailable

3

SAS-FLANGE

61205032000

Unavailable

4

SAS hose cylinder front

A62605035021

Unavailable

5

SAS hose cylinder rear

A62605035022

Unavailable

6

SAS hose airbox

A62605035023

Unavailable

7

VARIABLE ONE-EAR CLAMP 22,0MM

00050220706

Unavailable

8

HH collar screw M6x12 TX30

0025060126

Unavailable

9

SAS Reed Valve

60005026000

Unavailable

11

SAS retaining bracket

A62605025000

Unavailable

10

SAS heat shield

61705031000

Unavailable
