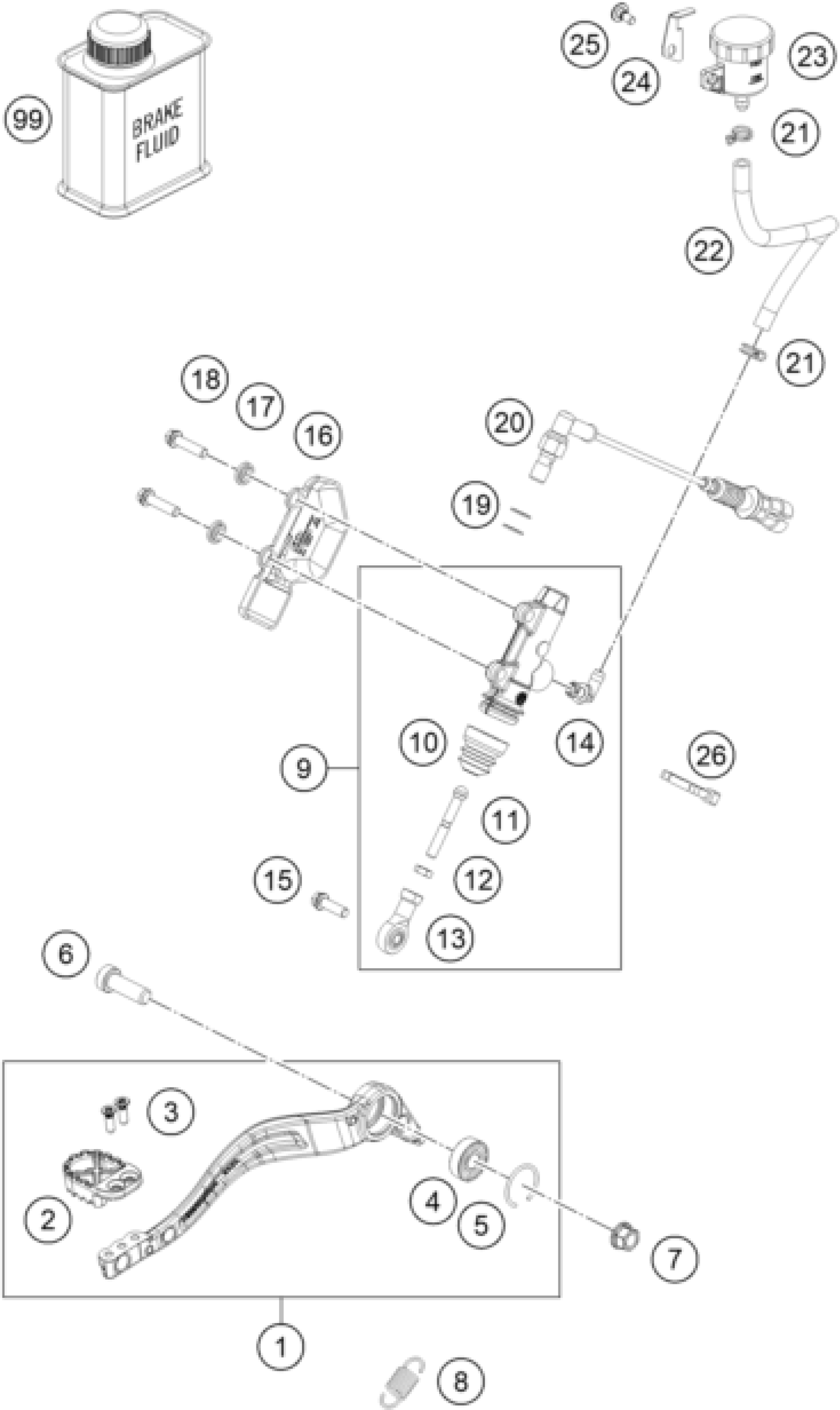

KTM 1390 SUPER ADVENTURE R 2025 REAR BRAKE CONTROL Diagram

#

Description
Price

1

Brake pedal cmpl.

A62613050033C1

Unavailable

2

Brake pedal stub

63513251000

Unavailable

3

CS screw, ISO14581-M5x16-A2-07

014581050162

$1.49

4

Grooved ball bearing 6000 LUV

0625060003

$12.33

5

round wire snap ring DIN 7993

0993026500

$3.08

6

AH-COLLAR SCREW M10X30 ISA45

0032100306S

Unavailable

7

COLLAR NUT M10 WS=13

54630044000

$1.49

8

Return spring for brake lever

54603062200

$6.54

9

REAR BRAKE CONTROL

6031306000030

$229.91

10

RUBBER SLEEVE

54513151000

$17.48

11

PUSH ROD CPL.

60313056044

$69.93

12

Hex. nut DIN 934 M6

0934060003

$1.49

13

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

14

ANGLE PIECE

54513155000

$14.58

15

HH collar screw M6x20 TX30

0025060206S

$2.05

16

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

$7.00

17

COLLAR BUSHING

50213161000

$3.08

18

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

$1.49

19

sealing ring DIN 7603 10x14x1

0603100141

$2.05

20

BRAKE LIGHT SWITCH REAR

60311051000

$43.66

21

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

22

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

23

Brake fluid reservoir cmpl.

61713069044

$15.42

24

Lock washer, brake fluid reser

61713069020

$11.40

25

Screw, reservoir

69013099150

$2.05

99

Brake fluid DOT5.1 0,25L

00062030000

$12.52

26

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05
