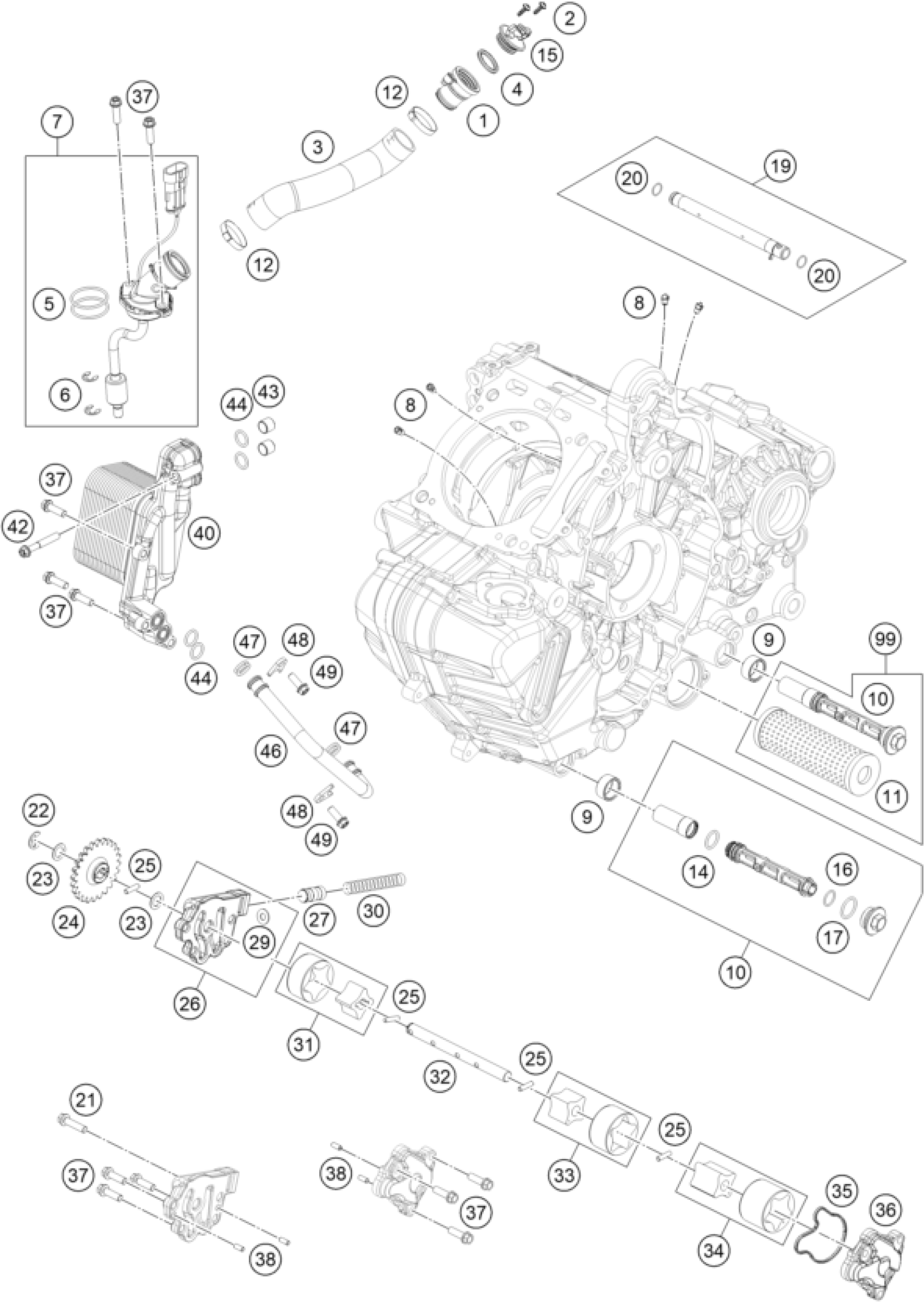

KTM 1390 SUPER ADVENTURE R 2025 LUBRICATING SYSTEM Diagram

Threaded flange

61907029000

$9.72

EJOT PT screw K50x14

0081050141

$1.49

Oil filler hose

61907026100

$26.08

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

O-RING 30X2,0 FPM

0770300020

$3.08

TAB WASHER DIN6799-RS 7,0

0799070000

$1.49

Oil level and temperature sens

61338085200

$186.52

oil jet 70 M5

60030063070

$8.59

OIL SCREEN BUSHING 08

61238017000

$6.91

Oil screen cmpl.

61238021300

$25.61

OIL FILTER

61338015200

$20.66

VARIABLE ONE-EAR CLAMP 37,6MM

00050376706

$3.08

O-RING 14,00X2,00

0770140200

$2.05

Oil plug

61938085000

$9.34

O-RING 12,5X1,5 NBR

0770125015

$2.05

O-RING 17,00X2,00

0770170200

$2.05

OIL INJECTION TUBE CPL. 08

61230065000

$26.45

o-ring 10.00x1.00 NBR70

0770010010

$2.05

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

$1.49

retaining washer DIN 6799 - 8

0799080000

$1.49

washer 10x16x0.5

60038007010

$2.33

oil pump gear 24 teeth

60038001224

$14.86

needle roller NRB 4x15.8 G2

0402041580

$2.05

PRESSURE PUMP COVER CPL.

61238009144

$30.10

control piston

60038128000

$5.23

shim

50337073000

$2.05

Oil pressure spring

61438026000

$4.11

ROTOR-SET 19MM 03

60038009000

$52.91

OIL PUMP SHAFT 08

61238002000

$19.91

ROTOR SET 22MM

61238011100

$16.63

eaton pump set 30mm

61238010100

$22.90

MOLDED RING SUCTION PUMP COVER

61238008150

$20.09

SUCTION PUMP COVER

61238008200

$23.65

HH collar screw M6x20 TX30

0025060206S

$2.05

needle roller DIN 5402 5x9.8

0402050980

$1.49

Oil cooler cmpl.

61738150000

$169.04

Hex collar screw, M6x40, ISA30

0025060406S

$1.49

BUSHING

61238052000

$5.23

O-RING 12X2 VITON GREEN

0770012021

$2.05

Line, oil radiator

61738035000

$21.59

O-RING 11X2 VITON

0770110021

$2.05

Retaining bracket oil line

61738037000

$7.75

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

OILFILTER GASKET KIT

61938021344

Unavailable
