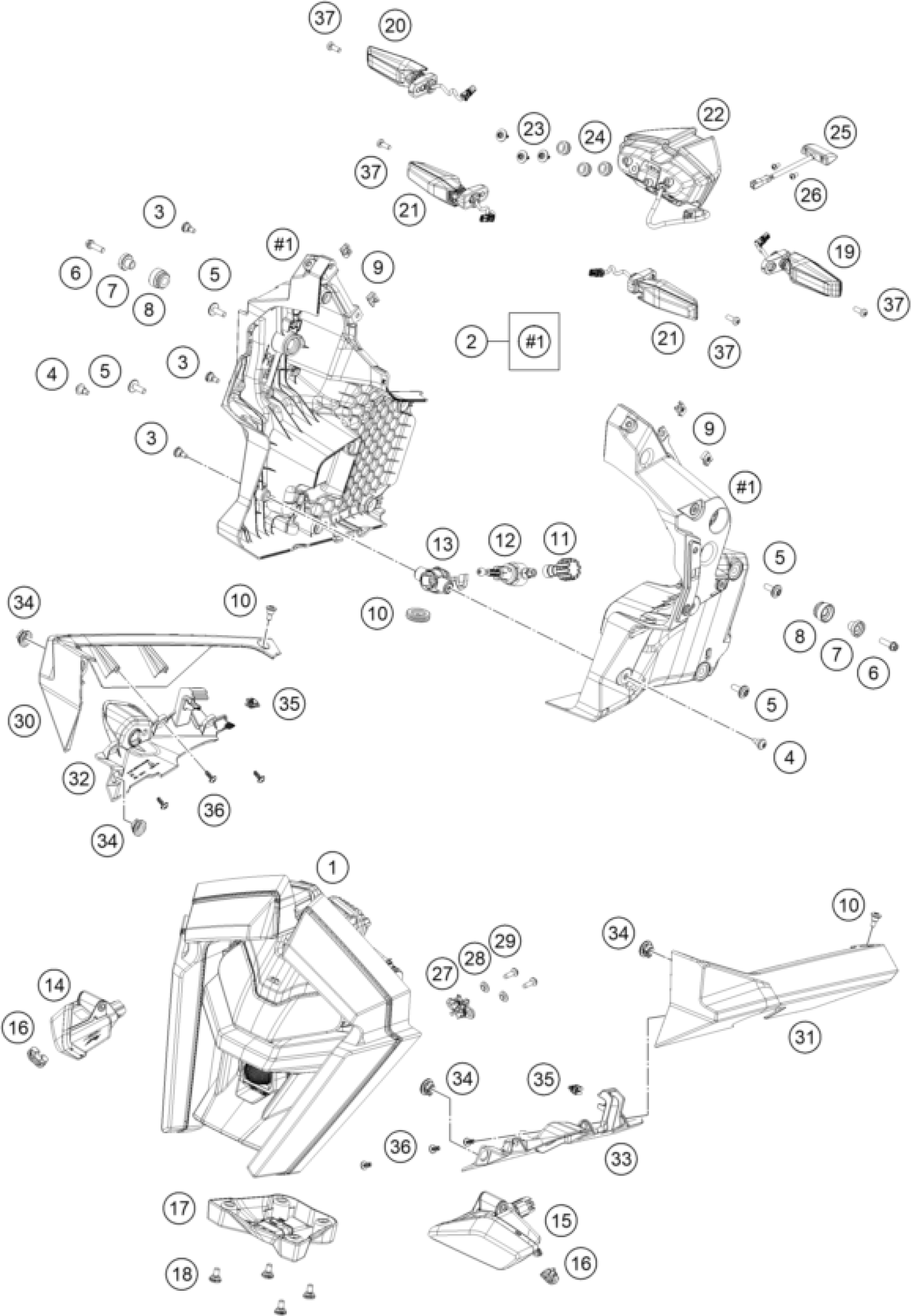

KTM 1390 SUPER ADVENTURE R 2025 LIGHTING SYSTEM Diagram

#

Description
Price

1

Headlight

A62614001000

Unavailable

2

mask support

A62614010044

Unavailable

3

Special screw, M5x14

69008021260

Unavailable

4

Oval head screw M5x14 TX25

58605083014

Unavailable

5

special screw M6x18-8.8 ISA30

69014017000S

Unavailable

6

HH collar screw M6x20 TX30

0025060206

Unavailable

7

Plug-in element headlight

60714011060

Unavailable

8

Bush headlight fixation

60714011050

Unavailable

9

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

10

Gummitülle d 22.5/5/2

64106001025

Unavailable

11

Thumbwheel headlight adjust.

60714023000

Unavailable

12

Adjuster cmpl.

60714020100

Unavailable

13

Headlight support

60714024100

Unavailable

14

Cornering light right

A63714008000

Unavailable

15

Cornering light left

A63714007000

Unavailable

16

Screw clamp

A63714007040

Unavailable

17

Connector cover

A62614010030

Unavailable

18

special screw M6x14

69008021040

Unavailable

19

Turn signal ECE front right

T03014026000

Unavailable

20

Turn signal ECE front left/rea

T03014025000

Unavailable

21

Combined Turn Signal ECE front

T03014055000

Unavailable

22

Tail light

63514040000

Unavailable

23

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

24

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

25

License plate lighting

61914047000

Unavailable

26

Oval-head screw ISR M4x8-A2-07

0738010400800

Unavailable

27

Ball-head holder

A60714020020

Unavailable

28

Collar bushing 5.5x7x13x3.3

61412132010

Unavailable

29

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

30

cover mask support carrier rig

A62608006010

Unavailable

31

cover mask support carrier lef

A62608005010

Unavailable

32

Turn signal bracket carrier ma

A62614010015

Unavailable

33

Turn signal bracket carrier ma

A62614010010

Unavailable

34

quick release rubber grommet

47106003160

Unavailable

35

Bracket for side fairing

61908040030

Unavailable

36

EJOT PT screw K50x12

0081050121

Unavailable

37

Flat-head screw ISO 14583-M5x1

0145830501400

Unavailable
