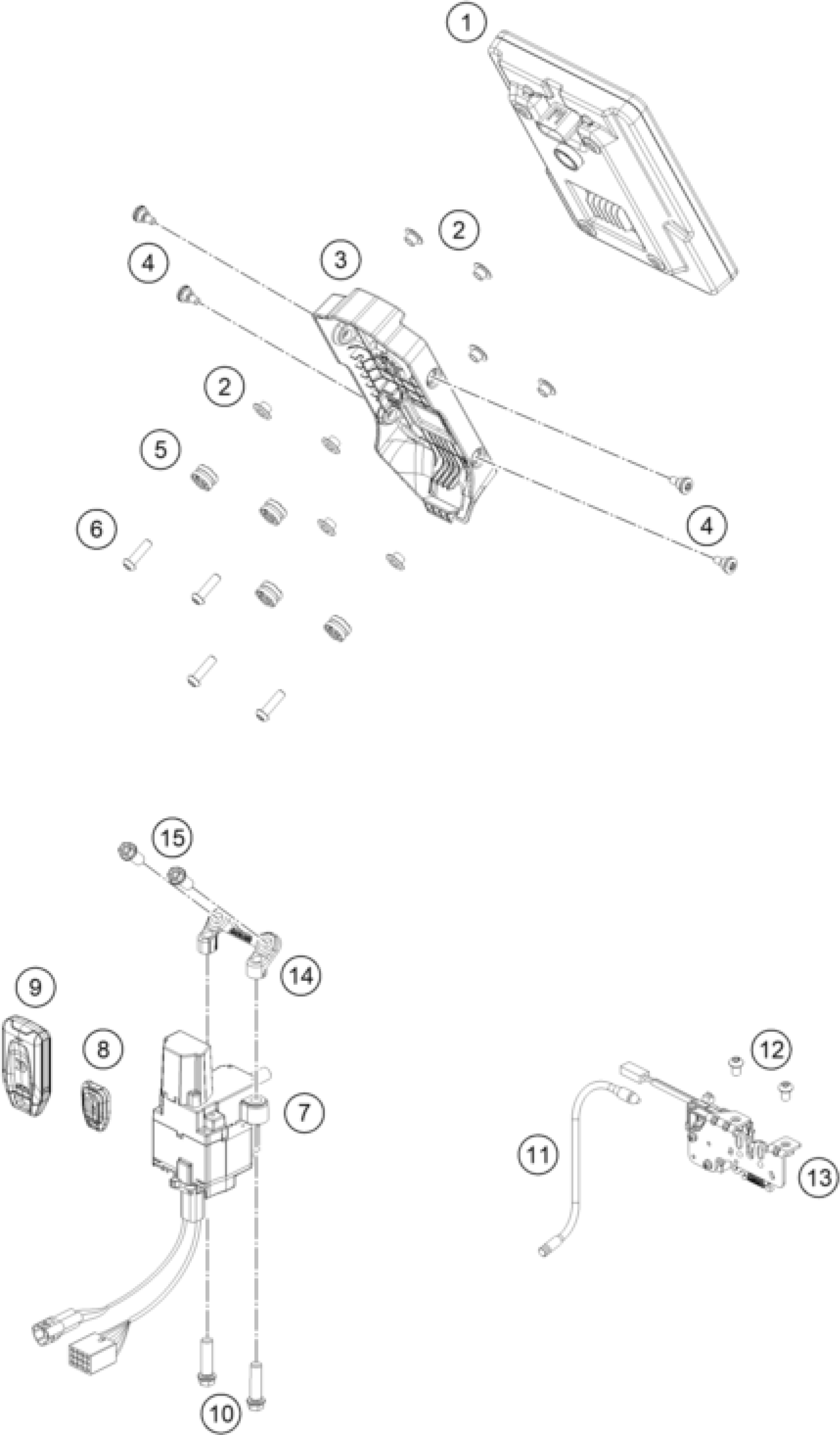

KTM 1390 SUPER ADVENTURE R 2025 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

13

Seat lock electric

61907050000

Unavailable

12

Oval head screw ISK ISO7380 M6

0738060101

Unavailable

11

Rope, emergency release Passen

61907053040

Unavailable

10

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

9

Active transponder Race-on 433

61911267000

Unavailable

8

Passiv transponder Race-on KTM

61911067020

Unavailable

7

Ignition lock KTM Race On 433

61911266100

Unavailable

6

Oval head screw ISR M6x22-A2-7

0738060225S

Unavailable

5

DAMP. COMPONENT SPEEDOMETER

61314069051

Unavailable

2

Collar bushing 6.2x8.6x6.85

0800000600709

Unavailable

3

Combination instrument support

A62614060000

Unavailable

4

Special screw, M5x14

69008021260

Unavailable

1

Dashboard

T03314069000

Unavailable

14

Ignition lock adapter

A62611266010

Unavailable

15

HH collar screw M8x16 TX40 SL

0025080166S

Unavailable
