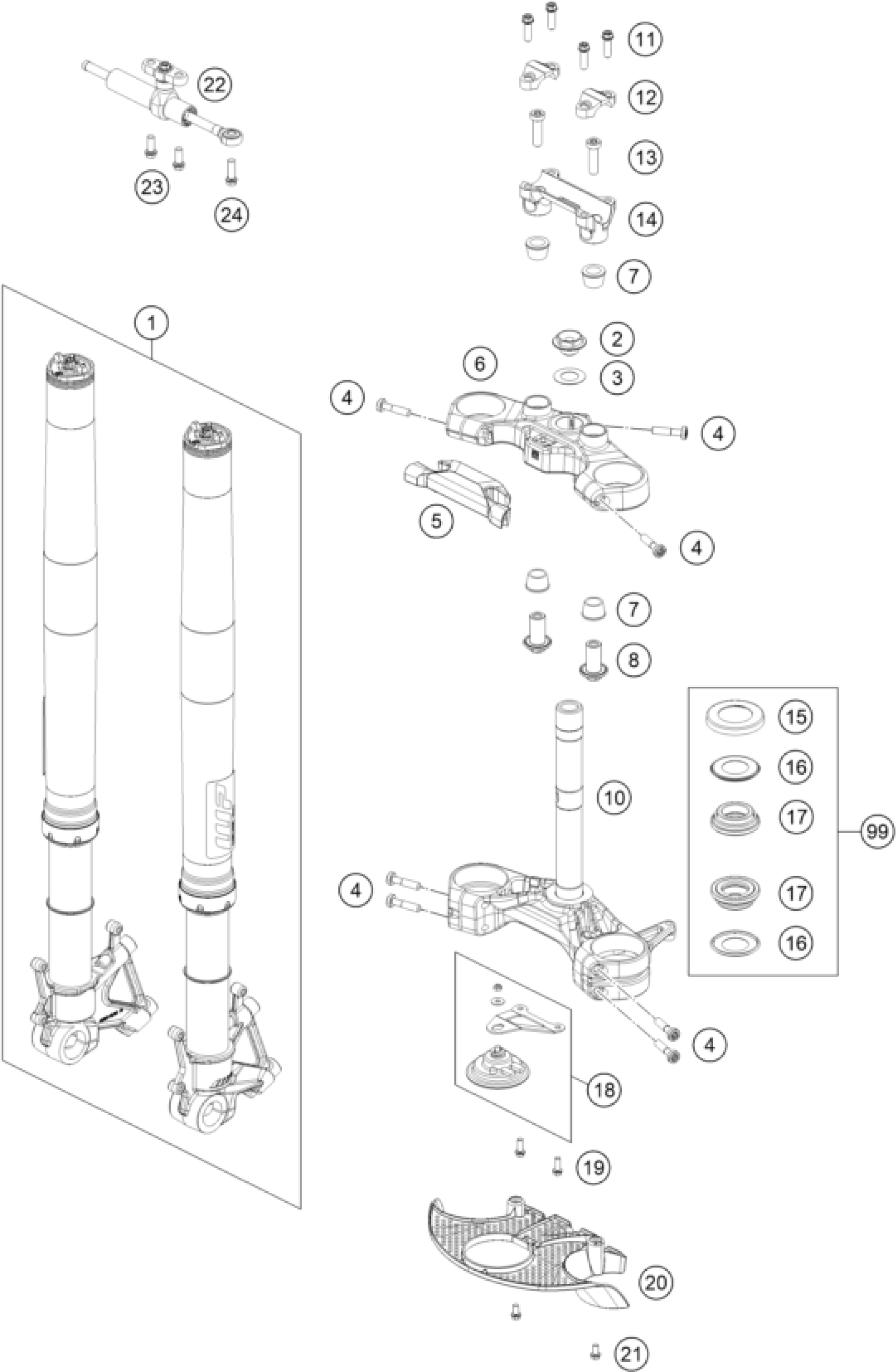

KTM 1390 SUPER ADVENTURE R 2025 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork KTM 1290 Super Adventure

14188U2501

$2,572.92

2

steering head screw

6900113600001

$16.73

3

Shim ring

63601042000

$3.08

4

AH-COLLAR SCREW M8X35 ISA45

0035080356

$4.11

5

Cable protection triple clamp

A62601034015C1

Unavailable

6

Top triple clamp X=32 mm

A62601034032C1

Unavailable

7

RUBBER BUSH

83001040000

$5.23

8

HANDLEBAR SUPPORT LOWER PART

79001037034

$60.95

10

Bottom triple clamp cmpl. X=32

A62601032032C1

Unavailable

11

HH collar screw M8x25

0025080256

$2.05

12

HANDLEBAR CLAMP 28MM

7720103800030

$21.03

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

14

Handlebar mount D28 mm-H36 mm

79001139036C1

Unavailable

15

PROT. RING STEER. HEAD BEARING

69001086100

$5.23

16

Stearing head gasket

69001084100

$5.23

17

STEERINGHEAD KPL.17

69001181000

$37.77

18

Horn cmpl.

61911060033

$37.02

19

HH collar screw M6x16 TX30

0025060166

$3.08

20

Triple clamp cover, bottom

61908024100

$24.77

21

HH collar screw M6x16 TX30

0025060166

$3.08

22

STEERING DAMPER CPL.

16181N53ES

$173.43

23

HH collar screw M8x20 TX40 SL

0025080206S

$2.05

24

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

99

Stearing head rep. Kit

69001181010

Unavailable
