Description

Price

1

Evaporative canister

61915001100

Unavailable

2

Evaporative canister retaining

A62615001050

Unavailable

3

HH collar screw M6x10 TX30

0025060106

$3.08

4

Rubber band ACF

61915001010

$9.34

5

Purge valve

A62415015000

$18.41

6

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

7

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

$5.23

9

Plug D=18

61915026010

$8.87

10

YDNAC clamp W1 (25.8-27.4 mm)

0340001202700

$5.23

11

Hose, FKM/ECO, 18x25 per m.

61915022001

$8.69

12

Y-PIECE YS 6-18-6

61915028000

$5.23

13

HOSE CONNECTION STRAIGHT

69015019010

$5.23

14

Pre-formed hose for fuel tank

A62615022100

Unavailable

15

PREFORMED HOSE 6X10 FPM

61315022000

$10.84

8

Pre-formed hose ACF

61915020000

$10.74

16

Purge valve bracket

A62615015010

Unavailable

17

Self locking nut M6 - 10

56509064100

$2.05

18

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

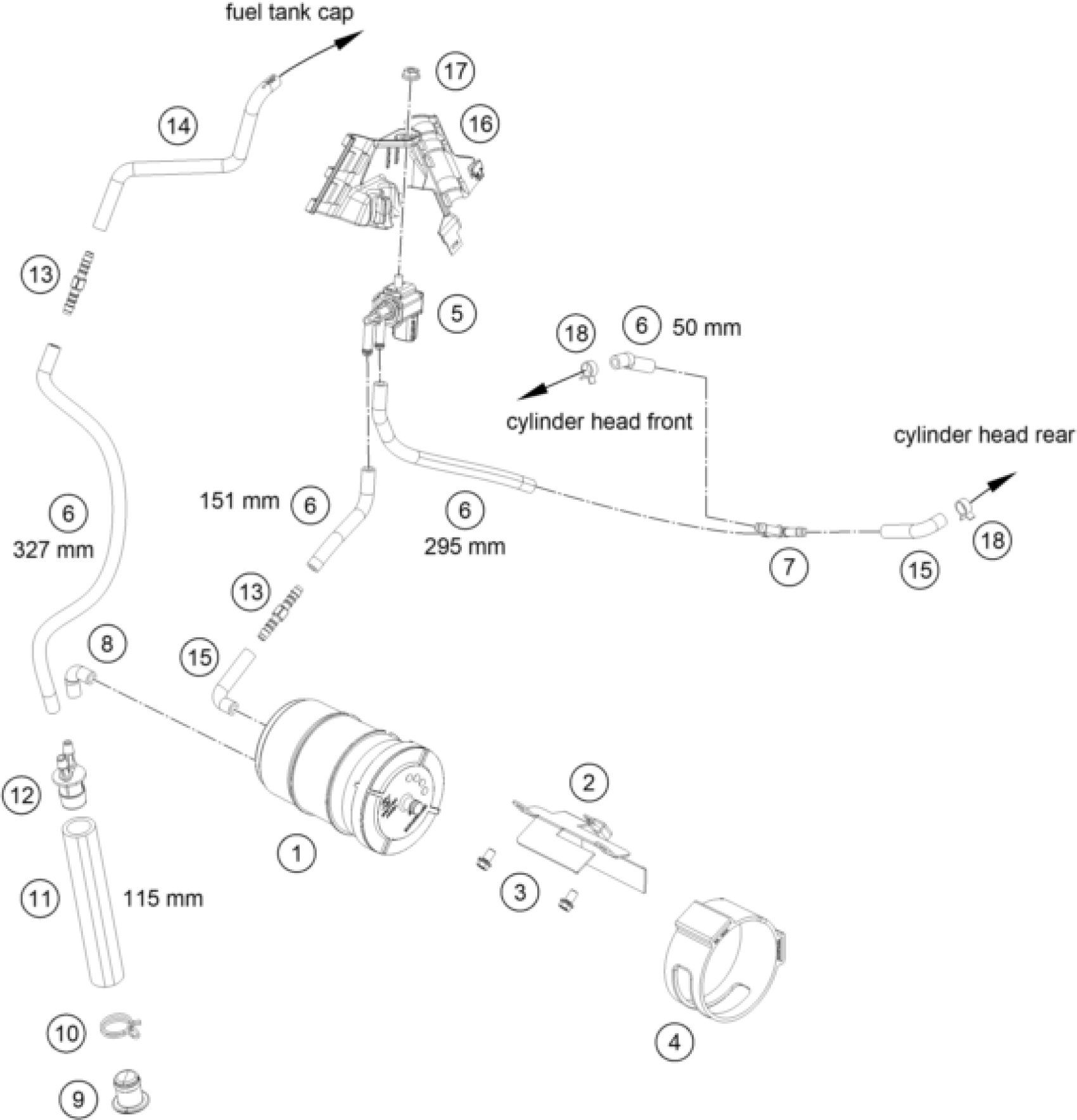

KTM 1390 SUPER ADVENTURE R 2025 EVAPORATIVE CANISTER Diagram

Evaporative canister

Evaporative canister retaining

HH collar screw M6x10 TX30

Rubber band ACF

Purge valve

HOSE EPA D=6/10 L=2000MM

Y-CONNECTING PIECE YS 6-6-6 06

Plug D=18

YDNAC clamp W1 (25.8-27.4 mm)

Hose, FKM/ECO, 18x25 per m.

Y-PIECE YS 6-18-6

HOSE CONNECTION STRAIGHT

Pre-formed hose for fuel tank

PREFORMED HOSE 6X10 FPM

Pre-formed hose ACF

Purge valve bracket

Self locking nut M6 - 10

CLAMP YDNAC 10096F (9,6MM)
