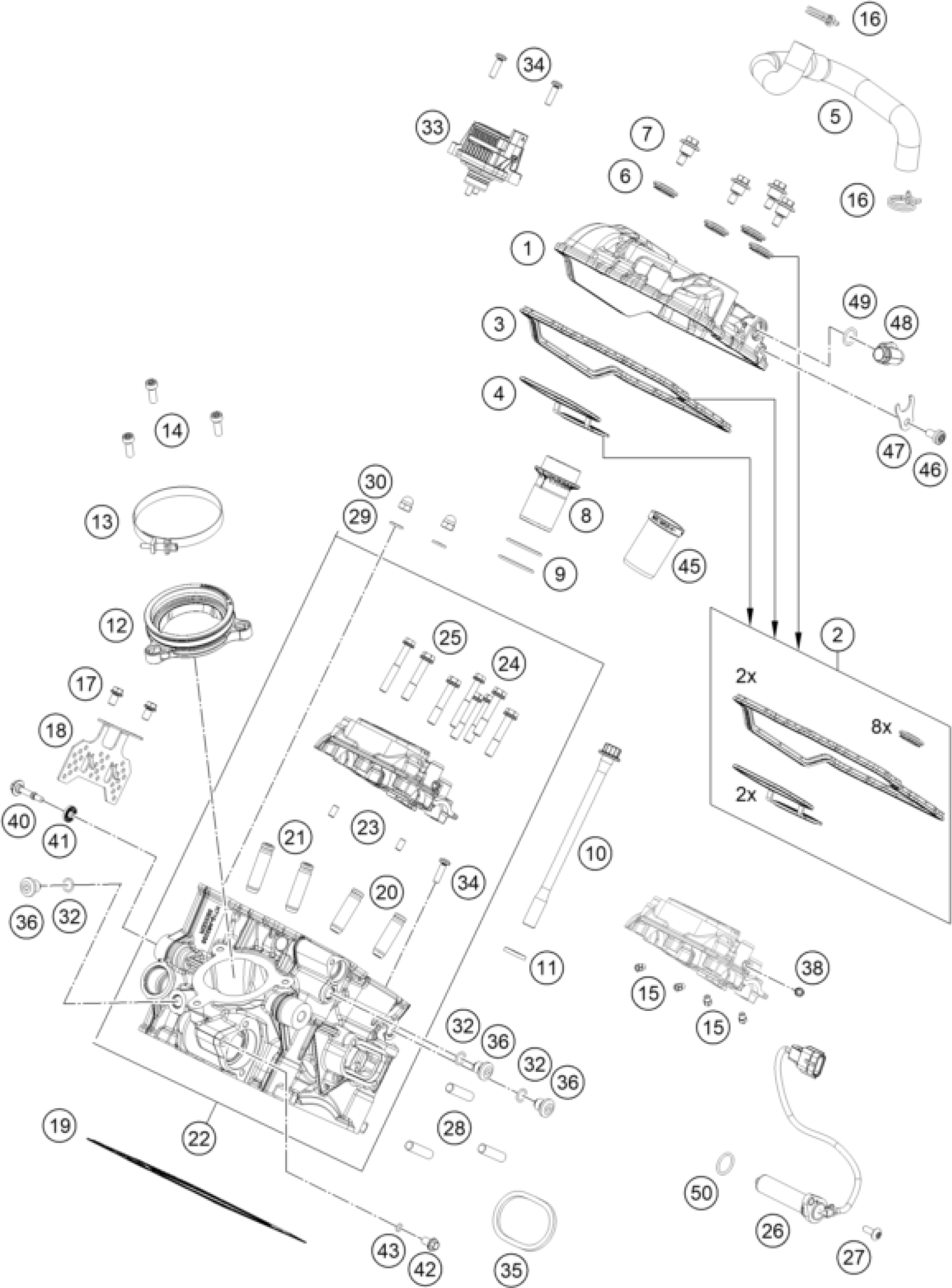

KTM 1390 SUPER ADVENTURE R 2025 CYLINDER HEAD REAR Diagram

#

Description
Price

1

Valve cover rear

A60036152000C1

Unavailable

2

VALVE COVER GASKET SET

A62436099044

Unavailable

3

Valve cover seal

A60036053000

Unavailable

4

Spark plug shaft seal

A60036075050

Unavailable

6

Sealing element

77036054250

Unavailable

7

VALVE COVER SCREW

77336054150

Unavailable

8

Spark plug shaft inser

A60036075000

Unavailable

9

O-RING 29,87X1,78 VITON

0770298178

Unavailable

10

CYLINDER HEAD SCREW 08

61236079000

Unavailable

11

WASHER 11,1X20X3 08

61236079050

Unavailable

12

Air boot

A62636044000

Unavailable

13

HOSE CLAMP GEMI 75

61336048000

Unavailable

14

SHCS ISO 14580 M6x16 SL

014580060166S

Unavailable

15

oil jet 50 M5

60030063050

Unavailable

17

Hex collar screw M6x10 ISA30 S

0025060106S

Unavailable

18

Lock washer

A60036055000

Unavailable

19

Cylinder head gasket

A60030036075

Unavailable

19

Cylinder head gasket

A60030036085

Unavailable

19

Cylinder head gasket

A60030036095

Unavailable

20

VALVE GUIDE EXHAUST 08

61236026001

Unavailable

21

VALVE GIUDE INTAKE 6MM

61236025001

Unavailable

22

Rear cylinder head

A6003632004424

Unavailable

23

needle roller DIN 5402 5x9.8

0402050980

Unavailable

24

Collar screw M7x1x38

0000150703800

Unavailable

25

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

26

Sliding piece position sensor

A60036085000

Unavailable

27

Oval head screw M5x14 TX25

58605083014

Unavailable

28

STUD M 8X16 10.9

0835080165

Unavailable

29

WASHER DIN0125-A 6,4

0125060003

Unavailable

30

CAP NUT M6 STAINLESS STEEL

61230045000

Unavailable

32

O-RING 9X1,5 NBR

0770090015

Unavailable

33

Double pin actuator

A60036084000

Unavailable

34

Flat-head screw ISO 14583-M5x1

0145830501800

Unavailable

35

EXHAUST PIPE FLANGE GASKET

69005005100

Unavailable

36

SCREW PLUG

77336056095

Unavailable

38

SCREW PLUG

59030296000

Unavailable

40

valve mechanism cover screw

75036055000

Unavailable

41

decoupling element

75036052010

Unavailable

42

VENT SCREW M6X10 CPL.

59036006090

Unavailable

43

O-RING 5,0X1,2 NBR 70

0770050012

Unavailable

45

INSERT SPARK-PLUG SHAFT

61336074100

Unavailable

46

EJOT ALtracs 60x12 TX30

0080060123

Unavailable

47

connecting angle retaining pla

61236082150

Unavailable

48

Elbow fitting

61236082200

Unavailable

49

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

50

O-ring 16x2 Viton 75

0770160021

Unavailable

5

Engine vent hose

A62630087010

Unavailable

16

CLAMP YDNAC 10173 (19MM)

60306082000

Unavailable
