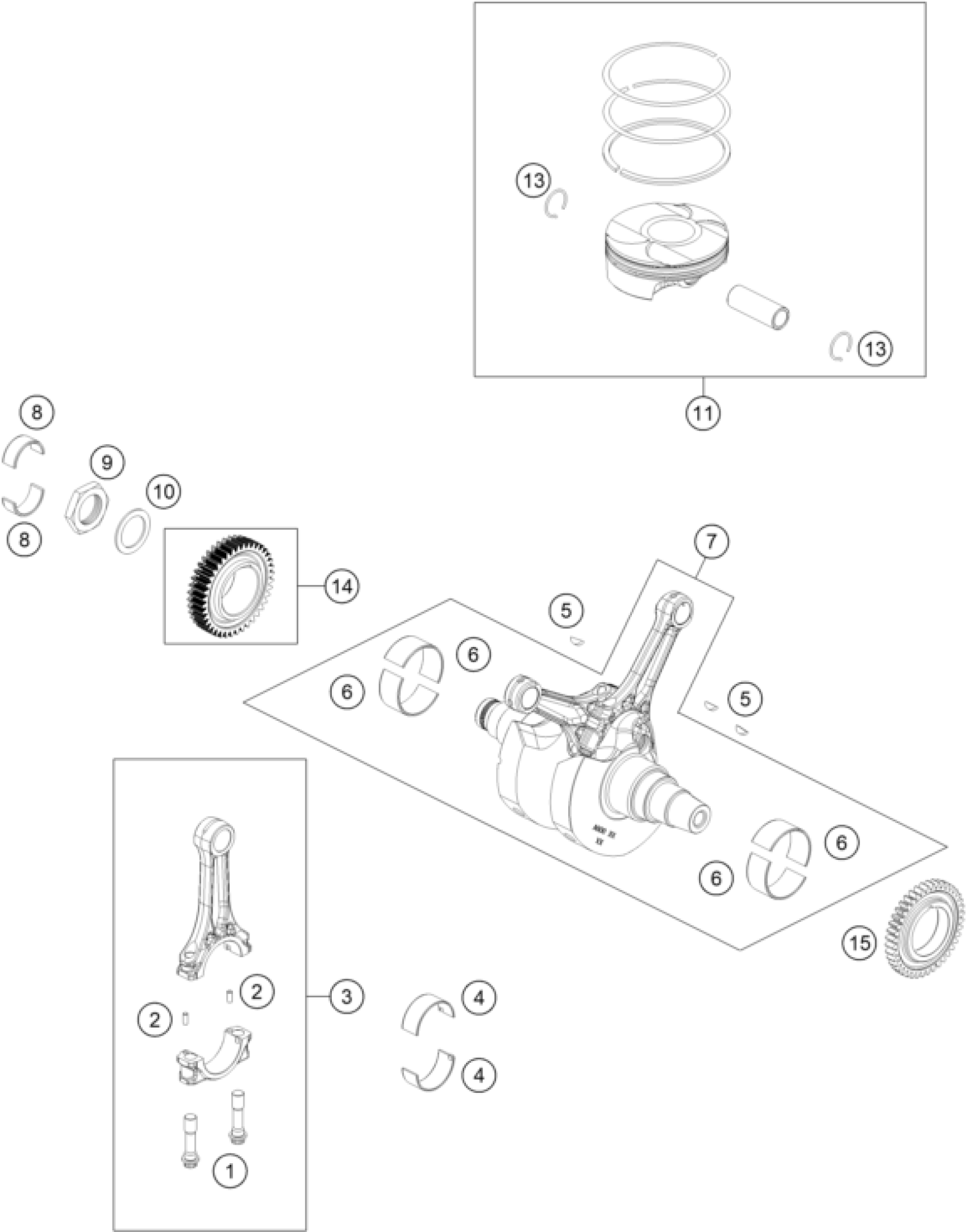

KTM 1390 SUPER ADVENTURE R 2025 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Connecting rod screw MJ10x1

A60030013100

Unavailable

2

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

3

Connecting rod

A60030015000

Unavailable

4

SPLIT BEAR. BUSH RED

612300151101

Unavailable

4

SPLIT BEAR. BUSH BLUE

612300151102

Unavailable

4

SPLIT BEAR. BUSH YELLOW

612300151103

Unavailable

5

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

6

SPLIT BEAR. BUSH RED 08

612300820001

Unavailable

6

SPLIT BEAR. BUSH BLUE 08

612300820002

Unavailable

6

SPLIT BEAR. BUSH YELLOW 08

612300820003

Unavailable

7

Crankshaft cmpl.

A60030018000

Unavailable

8

BUSHING BOWL 28X32X13 03

60030026010

Unavailable

9

HH-NUT M33X1,5 L/S WS46 03

60032009050

Unavailable

10

WASHER 33,2X46X2 03

60032009040

Unavailable

11

Piston I cmpl.

A60030007100 I

Unavailable

11

Piston II cmpl.

A60030007100 II

Unavailable

13

CIRCLIP LC4 07

75030074000

Unavailable

14

Primary gear cmpl.

61330055200

Unavailable

15

DRIVE WHEEL BALANCER SHAFT 08

61230056000

Unavailable
