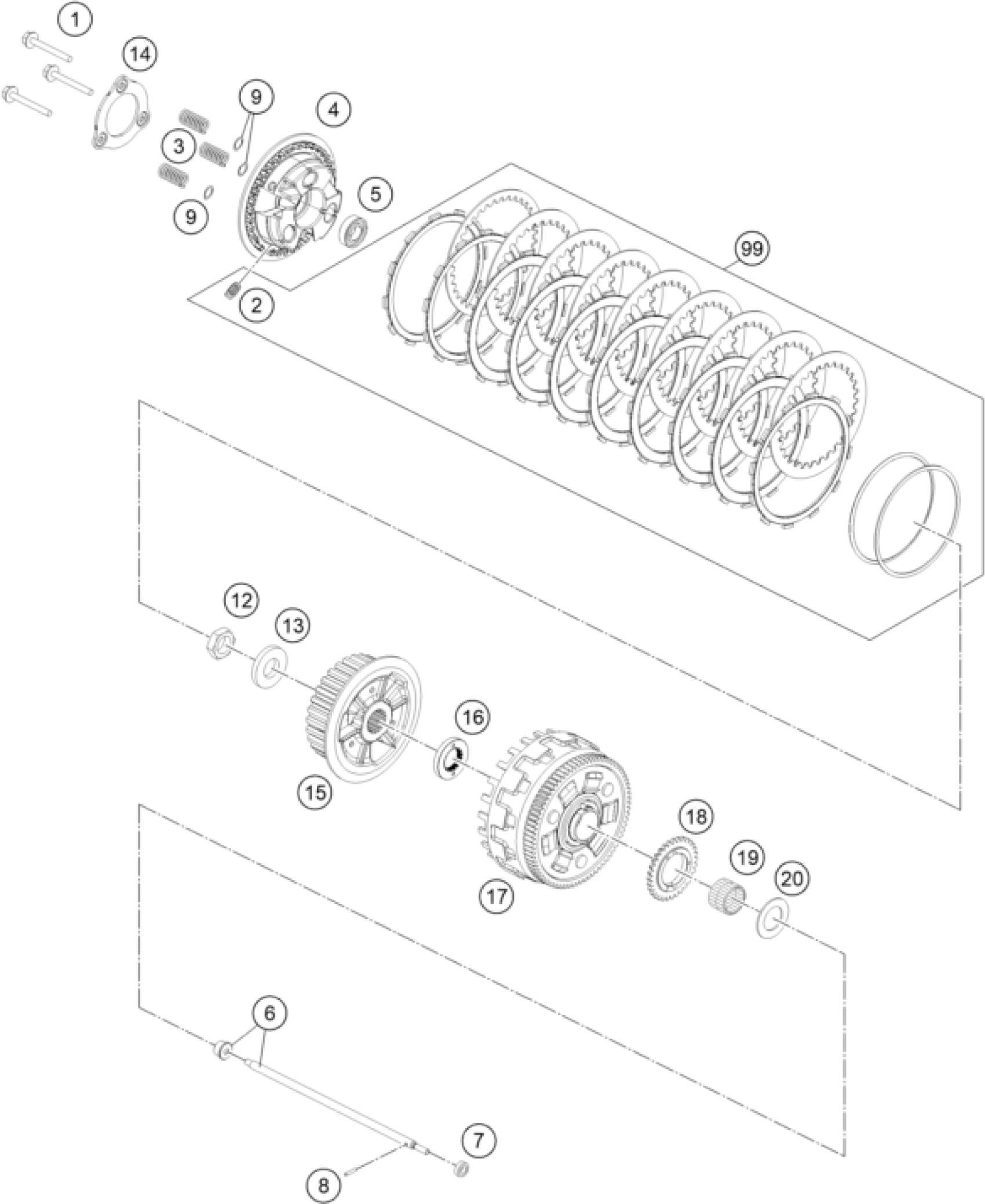

KTM 1390 SUPER ADVENTURE R 2025 CLUTCH Diagram

#

Description
Price

1

HH collar screw M6X45 WS10

61332044000

Unavailable

2

DAMPER

61332007000

Unavailable

3

Clutch spring, green

69332005100

Unavailable

4

PRESSURE CAP

61332003000

Unavailable

5

BALL BEARING 6003 C3

0625060033

Unavailable

12

hexagonal nut M22x1.5

0910002200800

Unavailable

13

wedge lock washer M22

0252012303500

Unavailable

14

ARRESTOR PRESSURE CAP

61332006000

Unavailable

15

Center clutch

61332002100

Unavailable

16

SECTION WASHER 03

60032021000

Unavailable

17

CLUTCH CAGE CPL.

61332001044

Unavailable

18

oil pump gear 32 teeth

60038001132

Unavailable

19

Needle bushing HK 30X35X26

0618303526

Unavailable

20

STOP DISK 30,2/50/2

60032020000

Unavailable

6

Push rod cmpl. 110 mm

60232154100

Unavailable

7

SHAFT SEAL RING 9X18X06 B-NBR

0760091862

Unavailable

8

Needle roll.DIN5402 NRB 3X17.8

0402031780

Unavailable

9

SUPPORT CLUTCH SPRING

61332004000

Unavailable

99

Clutch kit

A62432011010

Unavailable
