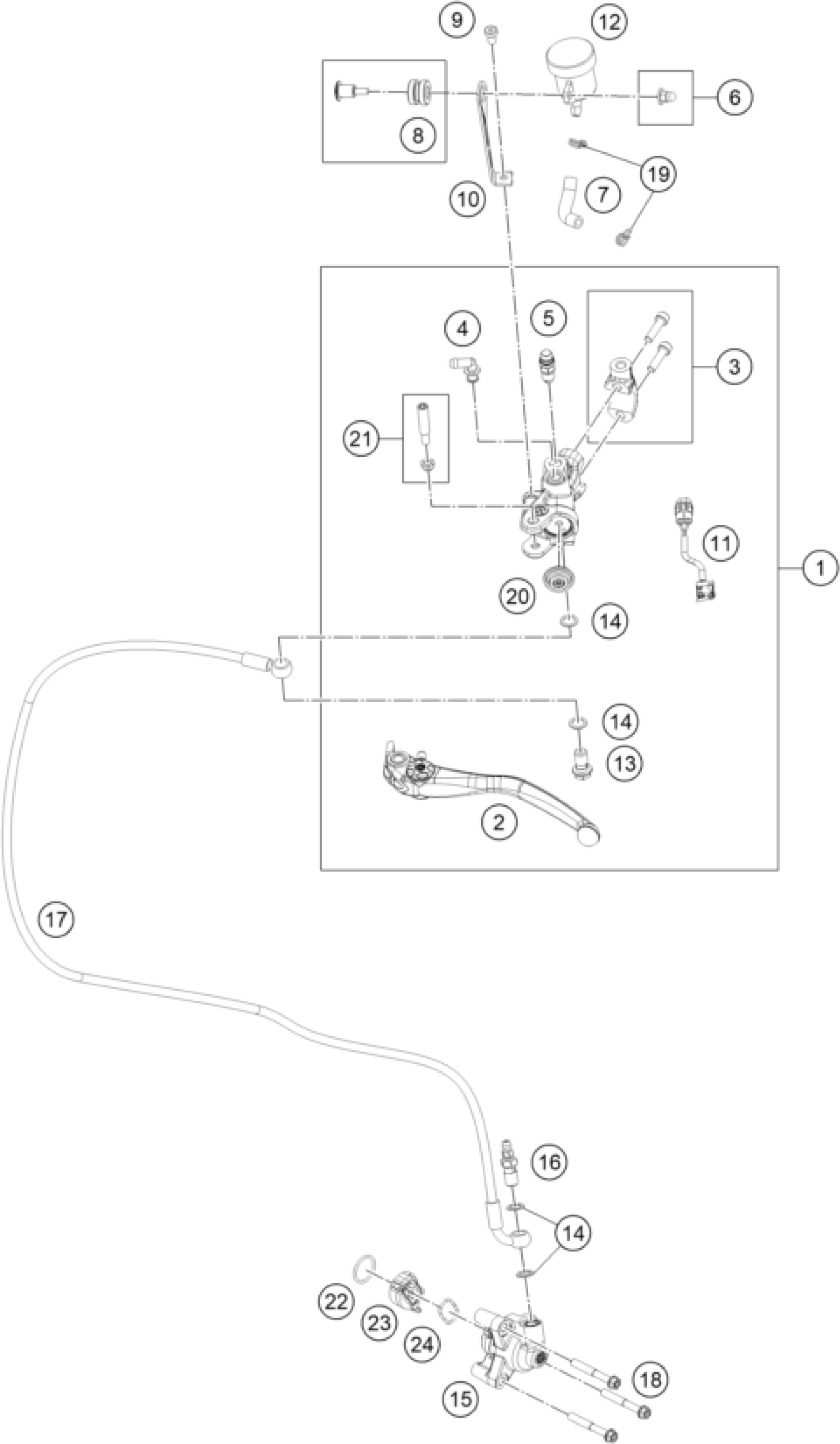

KTM 1390 SUPER ADVENTURE R 2025 CLUTCH CONTROL Diagram

#

Description
Price

1

clutch master cylinder

A62602030100

Unavailable

2

clutch lever kit

A62602031000

Unavailable

3

Clamp

A62413005000

$57.49

4

ANGLE PIECE

54513155000

$14.58

5

Bleeder screw with cap

60513020000

Unavailable

6

mounting kit reservoir

61913028044

$20.00

7

Hose reservoir 6x1,5

57313072001

Unavailable

8

RUBBER BUSH 05

61013013000

$3.08

9

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

$1.49

10

Retaining bracket reservoir co

A62432060005

Unavailable

11

MICROSWITCH

A62411049000

Unavailable

12

Break Fluid Reservoir

A62402055000

Unavailable

13

banjo bolt

A62432060095

Unavailable

14

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

Clutch slave cylinder cmpl.

A68132061044

Unavailable

16

BLEEDER SCREW CPL. 05

62513020000

$27.48

17

Clutch pipe

A62632063000

Unavailable

18

HH collar screw M6x55 TX30

0025060556

$3.08

19

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

20

RUBBER CUP

A62413008000

$12.24

21

LEVER SCREW CPL. 05

61013006000

$12.43

24

o-Ring 18,0 x2,0 Viton

0770001820002

Unavailable

23

Push rod guide cmpl.

T06232054066

Unavailable

22

O-RING 20X2 VITON

0770020020

$4.11
