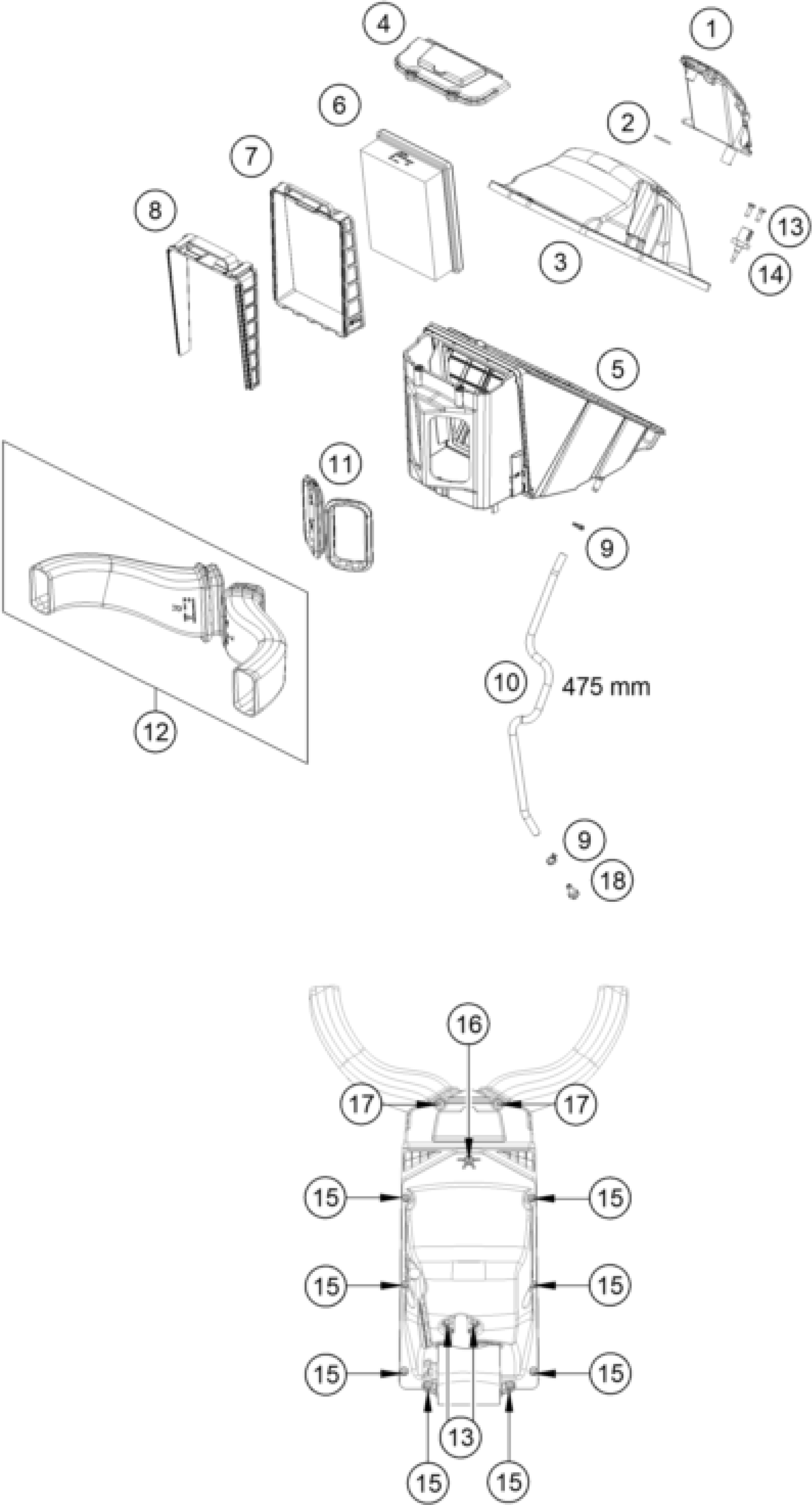

KTM 1390 SUPER ADVENTURE R 2025 AIR FILTER Diagram

#

Description
Price

1

Oil separator

61930088000

Unavailable

2

O-RING 21X2

0770210020

Unavailable

3

Air filter box upper part

61906002100

Unavailable

4

Air filter box cover

61906001003

Unavailable

5

Air filter box bottom part cmp

A62606001000

Unavailable

6

Air filter

60706015000

Unavailable

7

Filter clamp, frame

61906001004

Unavailable

8

Filter clamp, wedge

61906001005

Unavailable

10

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

11

Gasket intake snorkel

A62606040050

Unavailable

12

intake port l+r SADV 1390

A62606040044

Unavailable

13

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

14

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

15

EJOT Delta PT screw 60x30

0000810603000

Unavailable

16

EJOT Delta PT screw 60x20

0000810602000

Unavailable

17

special screw M5x12

69008021160

Unavailable

9

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

18

PLUG FUEL DRAIN

90515011000

Unavailable
