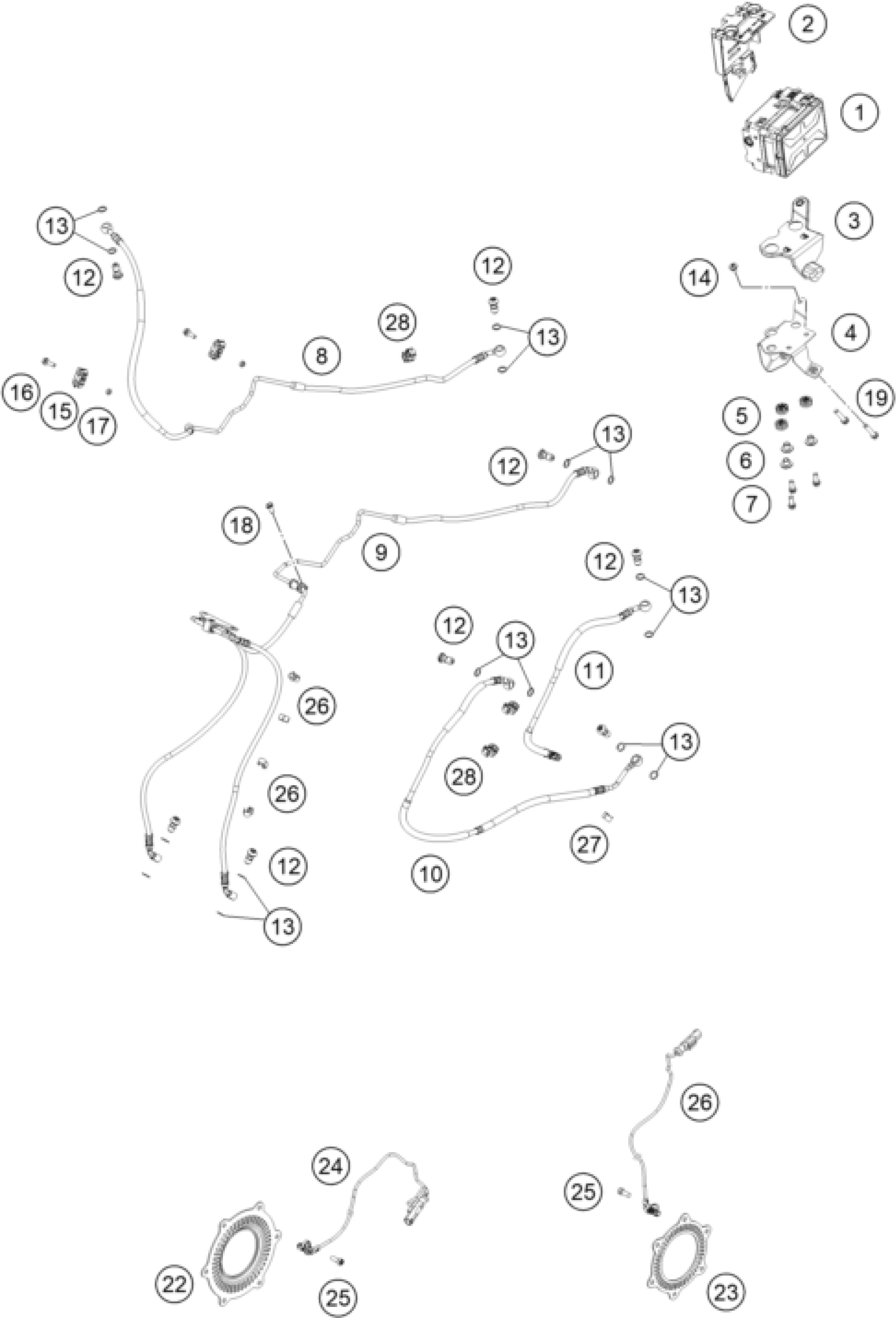

KTM 1390 SUPER ADVENTURE R 2025 ABS Diagram

#

Description
Price

1

ABS Modulator refill

A62642031044

Unavailable

2

ABS anti-rotation lock

A62642033000

Unavailable

3

Cover ABS modulator bracket

A62642040030

Unavailable

4

ABS module holder cmpl.

A62642040010

Unavailable

5

Damper 40 SHORE

62142041100

$4.11

6

Bushing 8.5X11X29

61305069000

$19.07

7

Flat-head screw ISO 14583-M5x1

0145830501400

Unavailable

8

Brake line pump front

A62642001000

Unavailable

9

Brake line brake caliper front

A62642003000

Unavailable

10

Brake line brake caliper rear

A62642004000

Unavailable

11

Brake line pump rear

A62642002000

Unavailable

12

banjo bolt M10x1x19.5

62113020100

$8.78

13

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

Bracket for brake line M5

61913046000

$10.84

16

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

17

Self locking nut DIN 985 M5

0985050003

$2.05

18

Oval head screw ISK ISO7380 M6

0738060101

$1.49

22

Phonic wheel ABS

60342020000

$27.95

23

Phonic wheel ABS, rear

60142021100

$21.59

24

Wheel speed sensor DF30

A61042025000

$63.57

25

Cap head bold ISO 14580 M6x16

014580060166

$2.05

27

BAR SPACER 4/7 BLACK

60111094100

$5.79

28

Support ABS-pipe d7.5

61342046000

$11.68

14

special screw M5x12

69008021160

$4.11

19

HH collar screw M6x30 TX30

0025060306S

$3.08

26

Wheel speed sensor

A60742025000

$54.32
