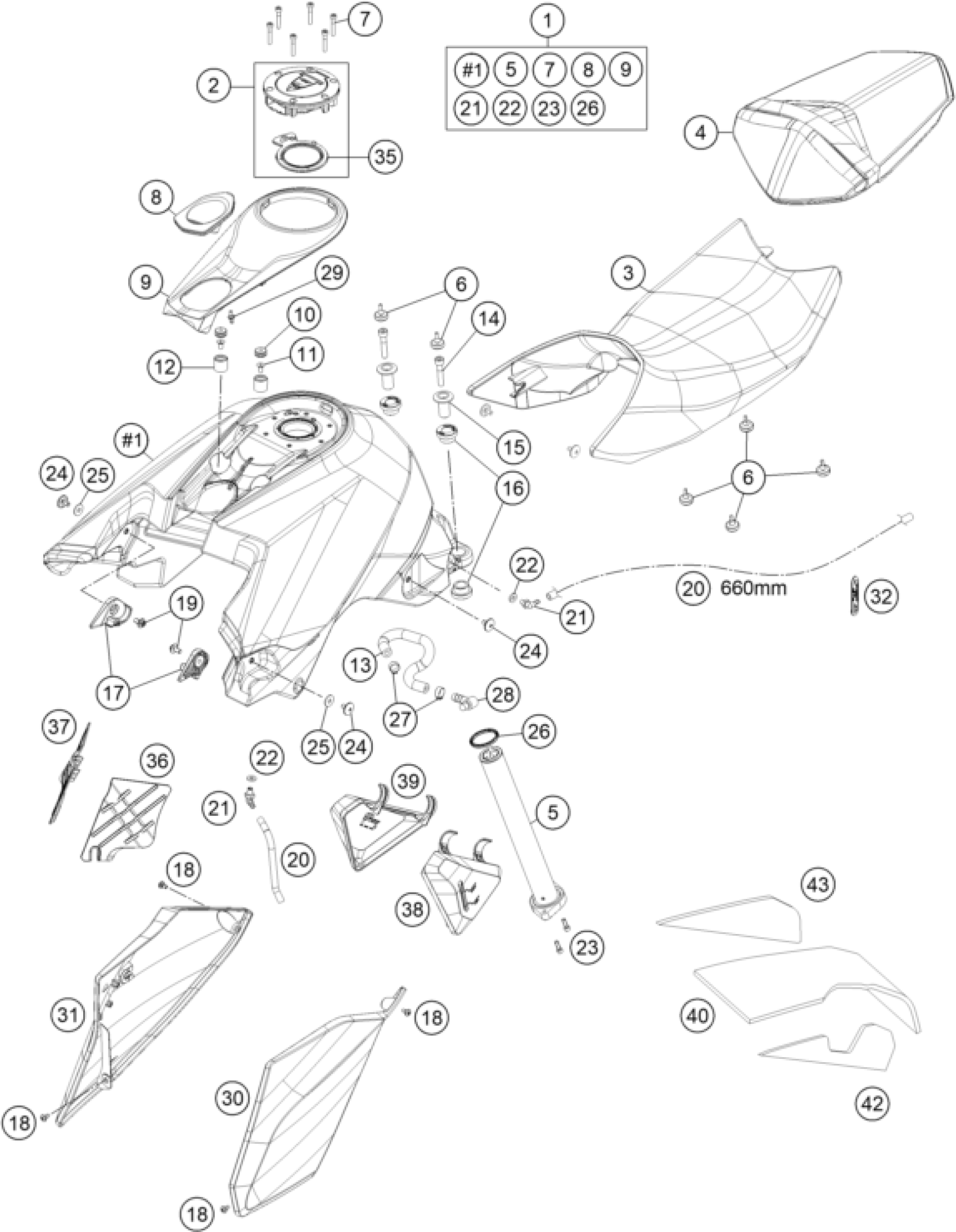

KTM 1290 SUPERDUKE R S.E. ABS 16 <2016> TANK, SEAT Diagram

#

Description

Price

15

collar bushing, bearing, outsi

61007060000

$9.90

16

collar bushing, front tank hol

61007065000

$7.85

17

TANK MOUNTING FRONT L/S & R/S

61307021044

$4.56

18

special screw M5x12

69008021160

$4.11

19

HH collar screw M6x13 TX30

0024060136

$3.08

20

HOSE 5,4X9,4 NBR, METER

60007126001

$7.10

21

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

22

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

23

AH collar screw DIN 912 M5x16

0912050163

$1.49

24

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

25

Washer DIN9021-A 6.4

0021060003

$2.05

26

Gasket fuel lever sensor

60307080090

$50.67

27

Variable one-ear clamp 15.7mm

00050157706

$5.23

13

FUEL HOSE PUMP

61307017050

$23.74

14

AH collar screw DIN0912 M8x40

0912080403

$2.05

10

RUBBER SLEEVE 5X7.6X13MM

76008052050

$2.05

11

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

$2.05

12

BUSHING 13X20X18,5MM

76008052000

$7.94

1

FUEL TANK SUPER D. WHITE

6130701304428A

Unavailable

2

TANK CAP CPL.

61307008100

$436.82

3

DRIVER SEAT CPL.

61307940000

Unavailable

4

SEAT SOZIUS CPL.

61307947000

Unavailable

5

GAS LEVEL SENSOR

61307080000

$134.35

6

Distance rupper airbox 03

60006001021

$2.05

7

AH SCREW DIN0912-M 5X25

0912050253

$1.49

8

COVER IGNITION LOCK

61307059000

$12.43

9

COVER FUEL TANK

61307058000

$23.18

28

PLUG CPC

7720701000030

$37.02

29

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

30

TANKSPOILER LEFT

61308050000ECA

Unavailable

31

TANKSPOILER RIGHT

61308051000ECA

Unavailable

32

RUBBER CABLE TIE 60MM 03

60011093060

$4.11

35

GASKET TANK CAP

60307008190

$7.85

36

FRAME COVER L/S

61303085000

$9.44

37

FRAME COVER R/S

61303086000

$12.71

38

KNEE PAD L/S

61303091000

$21.87

39

KNEE PAD R/S

61303092000

$21.87

40

INSULATION MAT MIDDLE

61306095010

$20.75

42

INSULATION MAT L/S

61306095020

$17.01

43

INSULATION MAT R/S

61306095030

$17.48
