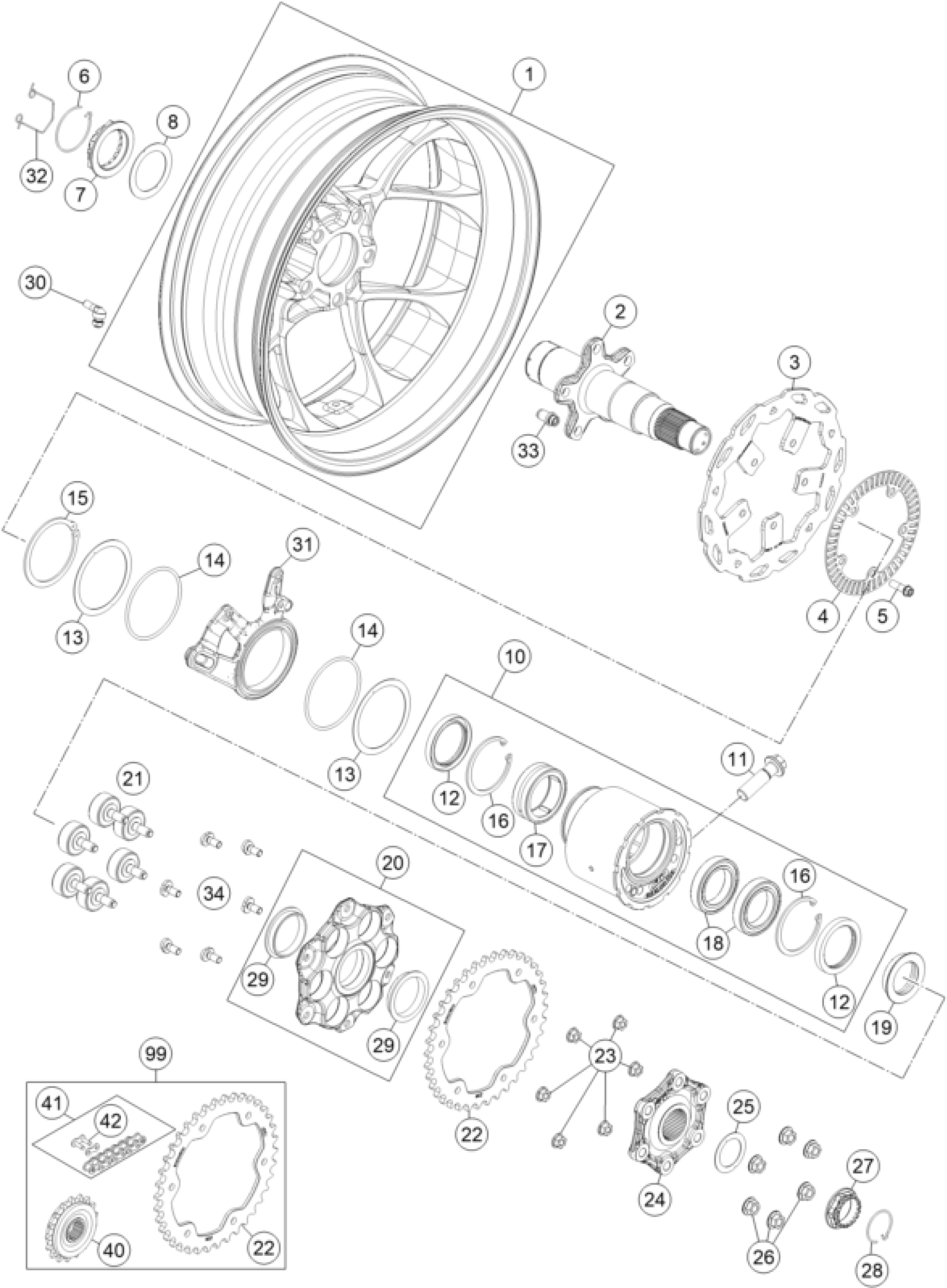

KTM 1290 SUPERDUKE R S.E. ABS 16 <2016> REAR WHEEL Diagram

#

Description

Price

18

Grooved ball bearing 61909-2RS

0625061909

$66.47

19

SPACER RING

61310014000

$29.35

17

NEEDLE BEARING RNA4909-2RSR-XL

0617456822

$70.77

8

WASHER 69X1

61310016000

$6.63

1

REAR WHEEL 6X17'' OR. W.DECAL

6141010100004A

Unavailable

7

AXLE NUT M50X1.5

61310186000

$45.90

11

HH collar screw M16X1.5X55

61310021000

$8.69

12

Radial shaft seal 52X68X8

0760526880

$6.82

2

AXLE REAR

61310085100

$455.15

3

WAVE BRAKE DISC REAR 240x5MM

61310960000

Unavailable

4

Phonic wheel, rear

76042121000

$43.00

5

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

6

Safety wire, right

61310187000

$4.11

41

CHAIN DID525 VAZ & MASTER LINK

61310165118

$231.40

42

MASTER LINK FOR CHAIN DID VAZ

61310066000

$10.74

99

DRIVETRAIN KIT 1290 SD 17T/38T

00050002029

$349.96

34

SPROCKET SCREW

61310052000

$2.05

21

JAR DAMPER

61310059000

$22.71

10

CLUTCH HUB HOUSING CPL.

61310010044

$525.37

13

WASHER 94X1

61310019000

$6.72

14

O-ring 84.00X3.5 NBR70

0770840035

$2.05

15

CIRCLIP DIN471-78X2.5

0471078250

$3.08

16

CIRCLIP DIN472-68X2.5

0472068250

$2.05

20

SPROCKET SUPPORT CPL.

6131005404433S

$185.59

22

SPROCKET STEEL DUKE 1290 Z38

61310151038

$90.31

23

Self locking nut M8 10.9

54310086200

$3.08

24

JAR DAMPER CARRIER

6131005000033S

$97.23

25

SHIM 50X1

76010116000

$6.63

26

Hex. nut DIN6923 M10X1.25-10

06923100003

$1.49

27

AXLE NUT M35X1.5

76010186000

$33.09

28

Safety wire, left

76010187000

$4.11

29

IGUS BEARING D=50

76010052000

$22.43

30

VALVE ANGLED

61009076100

$16.35

31

BRAKE CALIPER ADAPTER BLACK

6131307500033S

$96.58

32

Safety wire, inner

61310010011

$6.91

33

DOWEL PIN M8

61310113000

$12.33

40

Chain sprocket 17-t, damped 0

60033129017

$59.18
