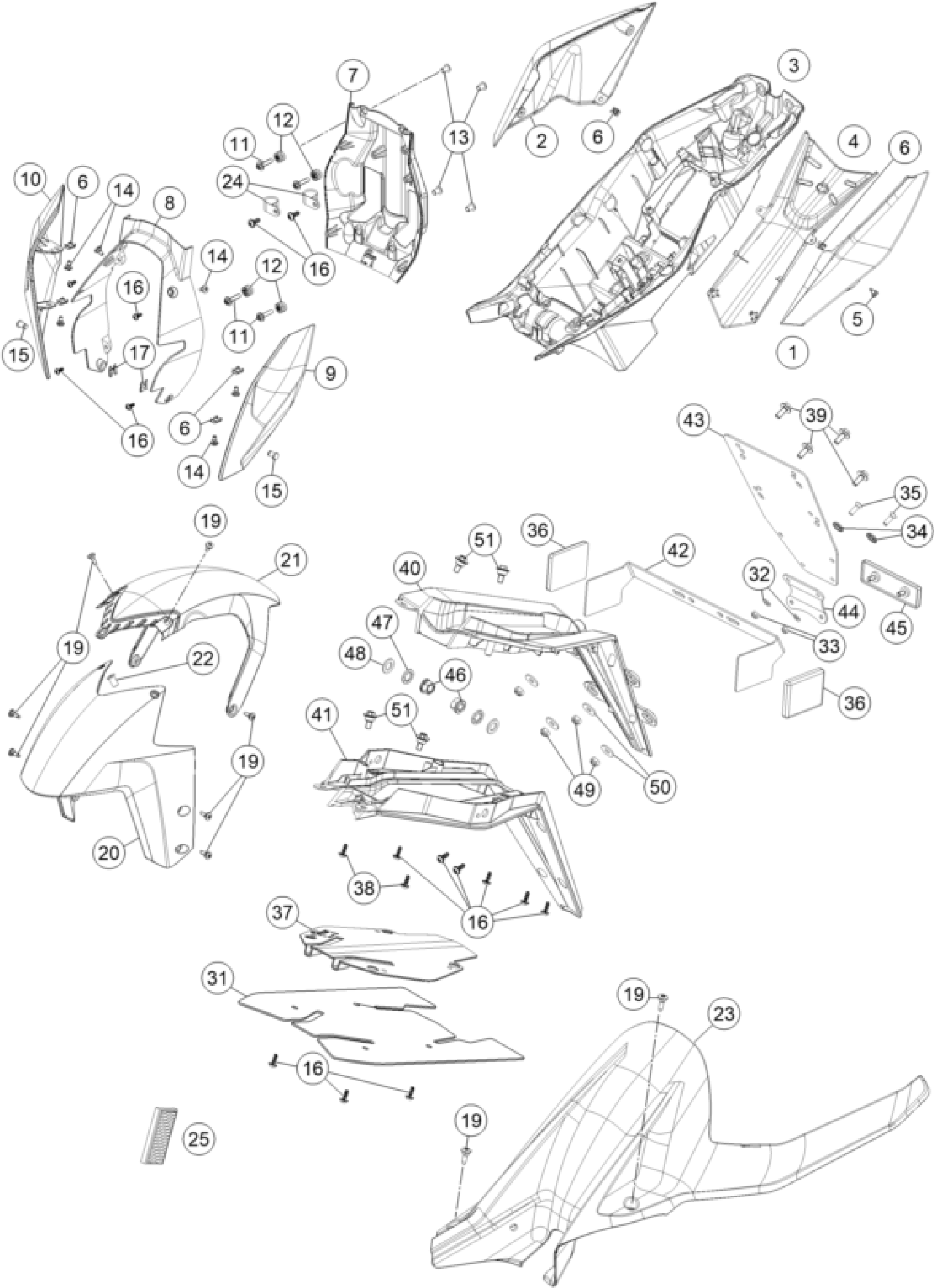

KTM 1290 SUPERDUKE R S.E. ABS 16 <2016> MASK, FENDERS Diagram

#

Description

Price

1

SPOILER REAR LEFT

6130804100028B

Unavailable

2

SPOILER REAR RIGHT

6130804200028B

Unavailable

3

TAIL END LOWER PART

61308018000

$90.13

4

REAR FAIRING LOWER PART BLACK

6130804000033

$12.99

5

EJOT PT screw K50x14

0081050141

$1.49

6

clip nut M5

69008021080

$3.08

7

MASK REAR PANEL

61314060000

$12.71

8

MASK MIDDLE PART

61314061000

$13.46

9

MASK SPOILER LEFT

6130800300028A

Unavailable

10

MASK SPOILER RIGHT

6130800400028A

Unavailable

11

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

12

RUBBER SLEEVE 7X10,8X16MM

76014069051

$2.05

13

COLLAR BUSHING 6,2X7,5X13X12

76014062000

$3.08

14

special screw M5x12

69008021160

$4.11

15

BOLT 8X12X16MM

61313057000

$5.70

16

EJOT PT screw K50x12

0081050121

$2.05

17

SECURING CLIP D=8MM 03

60013058000

$2.05

19

special screw M5x17

69008021060

$3.08

22

blind plug nut M5 WN16A

60008008050

$3.73

23

REARFENDER

61304050100

$47.68

20

FENDER FRONT PART

61308010000ECA

Unavailable

21

REAR FENDER BLACK

6130801100033

$27.87

24

PVC-CLAMP HEYCO 13,9 3379

69007029000

$3.08

31

SPLASH PROTECTION AUSTRALIA

61308123010

Unavailable

32

WASHER DIN0125-A 5,3

0125050003

$1.49

33

Self locking nut DIN 985 M5

0985050003

$2.05

34

WASHER 6MM

40006006000

$1.49

35

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

36

SIDE REFLECTOR RED REAR

16512180100

$7.10

37

SPLASH PROTECTION

61308023010

$8.31

38

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

39

HH collar screw M6x15 TX30

0024060156

$3.08

40

NUMBER PLATE CARRIER UPP. PART

61308022000

$48.33

41

NUMBER PLATE CARRIER LOW. PART

61308023000

$48.61

42

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

43

license plate mouning plate

60012081200

$8.41

44

BRACKET FOR REFLECTOR

58412080050

$6.07

45

REFLECTOR RED

58412080000

$5.23

46

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

47

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

48

Washer DIN0433-M10

0433100003

$1.49

49

Self lock. nut DIN985-M6-A2

0985060003

$2.05

50

Washer DIN9021-A 6.4

0021060003

$2.05

51

Special screw M6x15x5.5

83008100015

$3.08

25

REFLECTOR YELLOW ''CEV''

58412080300

$7.75
