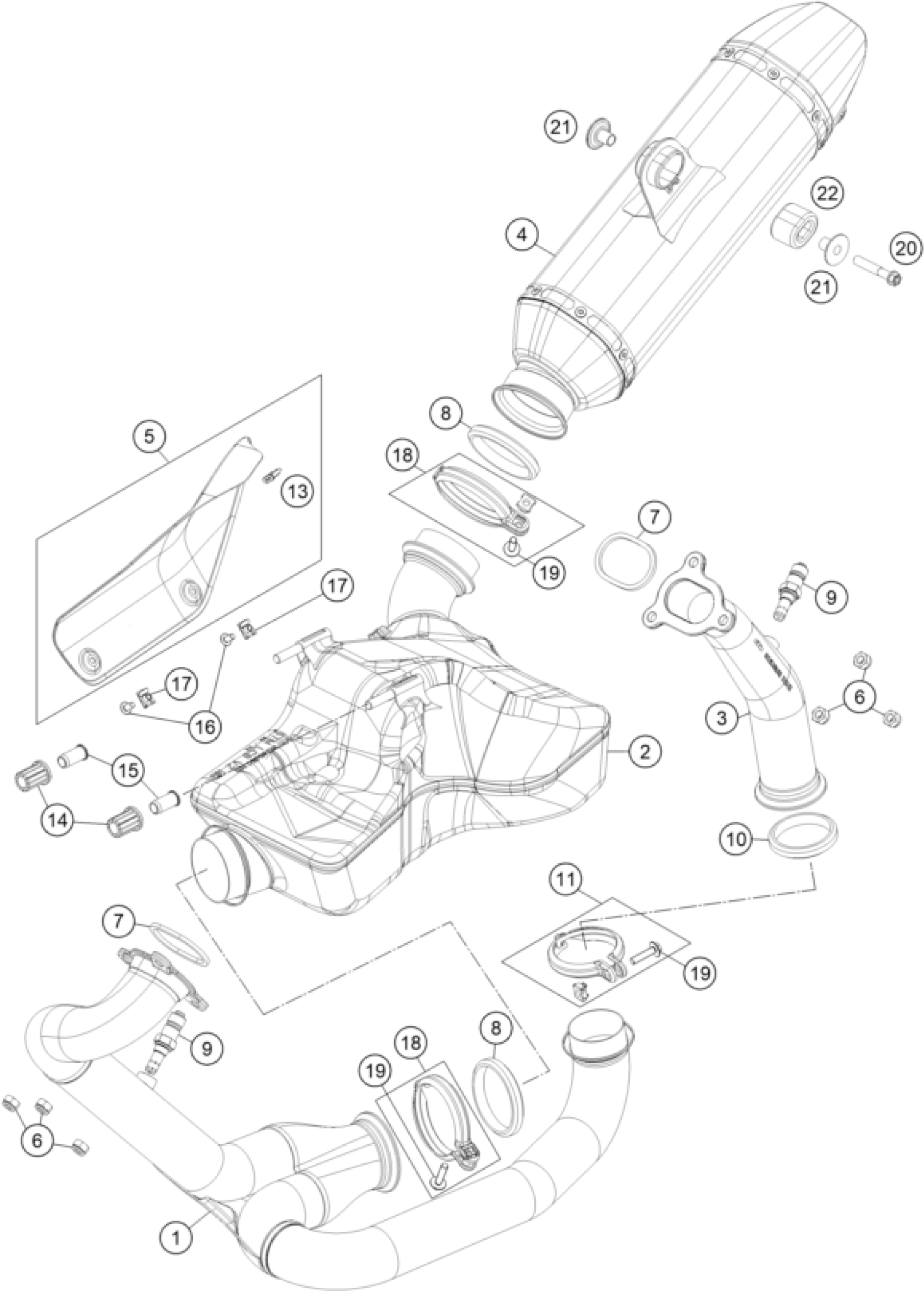

KTM 1290 SUPERDUKE R S.E. ABS 16 <2016> EXHAUST SYSTEM Diagram

#

Description

Price

1

EXHAUST PIPE FRONT

61305007000

$899.09

2

PRE-MUFFLER

61305050200

$1,541.58

3

MANIFOLD REAR CPL.

60305008000

$448.98

4

EXHAUST SYSTEM

61405979000

Unavailable

5

HEAT SHIELD BLACK CPL.

6130501100033

$124.07

6

self-locking nut M8 Cu

51010086100

$3.08

7

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

8

MANIFOLD GASKET 60MM

61305005005

$11.02

9

LAMBDA SENSOR

75041090100

$171.19

10

MANIFOLD GASKET

69005005005

$16.82

11

CLAMP CPL.

69005050000

$24.58

13

DAMP. COMPON. SILICONE GREY 05

61005091000

$8.31

14

RUBBER SILENCER SUPPORT 05

61005013000

$10.18

15

Sleeve silencer support

61005014000

$6.44

16

SCREW TORX M5X10

78105081010

$2.05

17

clip nut M5

69008021080

$3.08

18

EXHAUST CLAMP CPL. 60MM

61305090000

$26.08

19

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

20

HH collar screw M8x50 TX40

0025080506

$3.08

21

Bushing 8.5X11X29

61305069000

$19.07

22

DAMPING RUBBER

61305068000

$15.51
