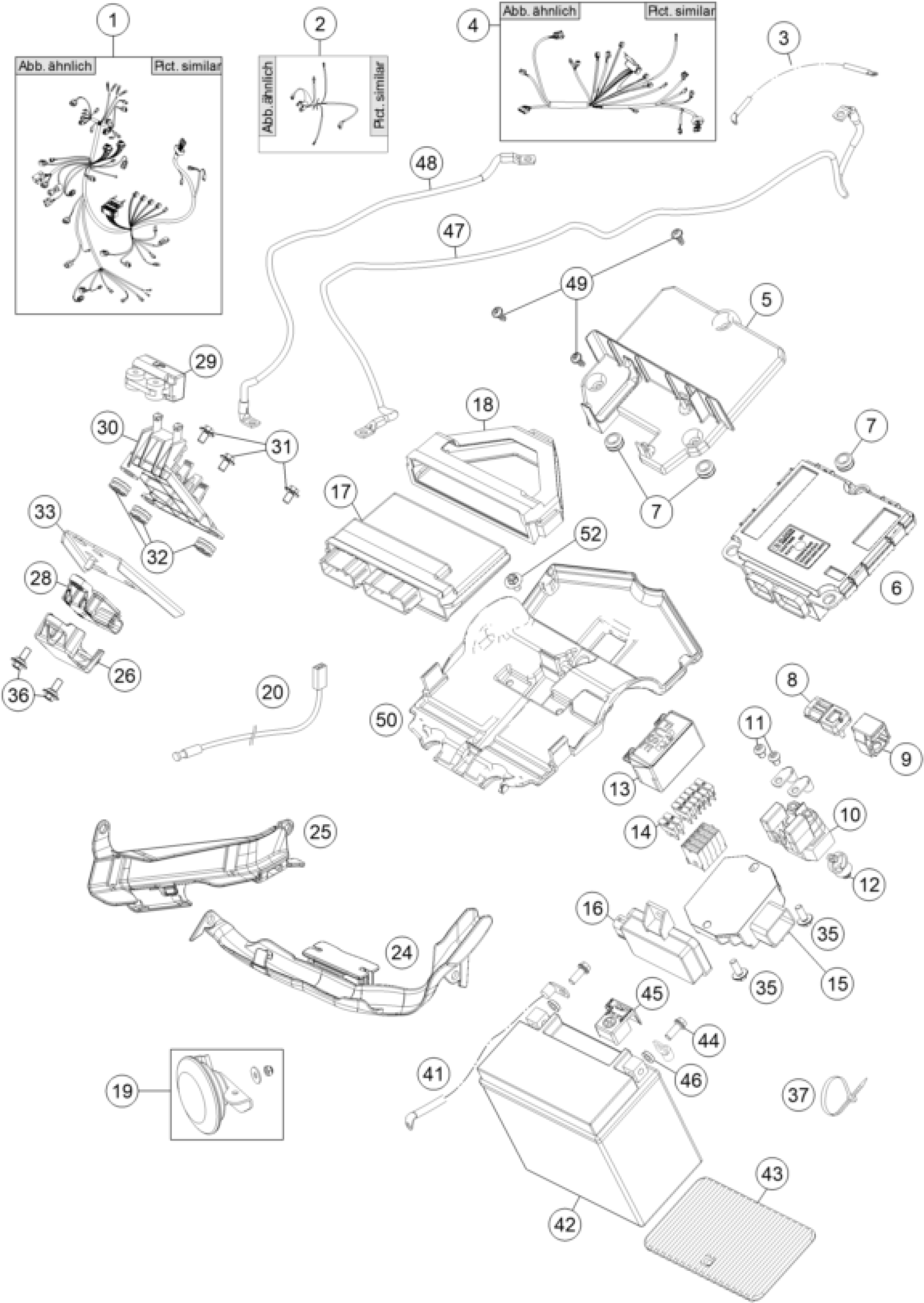

KTM 1290 SUPERDUKE R BLACK ABS 16 <2016> WIRING HARNESS Diagram

#

Description

Price

1

MAIN WIRING HARNESS CPL.

61311075033

Unavailable

2

WIRING ENGINE

60311085000

Unavailable

3

BATTERY CABLE

61311059050

Unavailable

4

REAR WIRING HARNESS

61311076000

Unavailable

5

COVER MCU

61308018060

Unavailable

6

MOTORCYCLE CONTROL UNIT 2.1

60311033200

Unavailable

7

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

8

PRESSURE SENSOR 06

61041085100

Unavailable

9

RUBBER SUPP. PRESSURE SENS. 06

61041085150

Unavailable

10

Starter relay

76211058000

Unavailable

11

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

12

Cable tie w. socket D=6.5

69011092000

Unavailable

13

RUBBER CASING FUSE BOX

61311087050

Unavailable

14

Plug-in fuse, big 10A

58011109110

Unavailable

14

Plug-in fuse, big 30A

58011109130

Unavailable

15

VOLTAGE REGULATOR

60311034000

Unavailable

16

RECEIVER AIR PRESSURE SENSOR

60312032000

Unavailable

17

Engine control unit

61341031000

Unavailable

18

ECU RUBBER BRACKET

60341031050

Unavailable

19

Direct current horn complete

61611060033

Unavailable

20

Temperatur sensor

61111018100

Unavailable

24

CABLE CHANNEL L/S

60311046000

Unavailable

25

CABLE CHANNEL R/S

60311047000

Unavailable

26

COVER SENSOR BOX

61342090050

Unavailable

28

SLOPING POSITIONS SENSOR

60342090000

Unavailable

29

ROLLOVER SENSOR 05

61041088000

Unavailable

30

PLUG BRACKET

61311083000

Unavailable

31

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

32

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

33

SUPPORT SLOPING POS. SENSOR

61342090040

Unavailable

35

HH collar screw M6x20 TX30

0025060206

Unavailable

36

SPECIAL SCREW M6X15X3

83008000015

Unavailable

41

GROUND CABLE BATT.-FRAME 16MM

61311098000

Unavailable

42

BATTERY YUASA YTX14-BS

61311053000

Unavailable

43

RUBBER PLATE FOR BATTERY

61311053050

Unavailable

44

HH collar screw M6x16 TX30

0025060166

Unavailable

45

COVER POSITIVE POLE

62111059060

Unavailable

46

WASHER 6 X 12 X 3

12011016000

Unavailable

47

STARTER CABLE 16MM

61311059000

Unavailable

48

GROUND CABLE ENGINE-FRAME 16MM

61311097000

Unavailable

49

EJOT PT screw K50x14

0081050141

Unavailable

50

SUPPORT ECU

61311055000

Unavailable

52

special screw M6x12x3

83008000012

Unavailable

37

Cable tie 200/4.6mm black

44011076200

Unavailable
