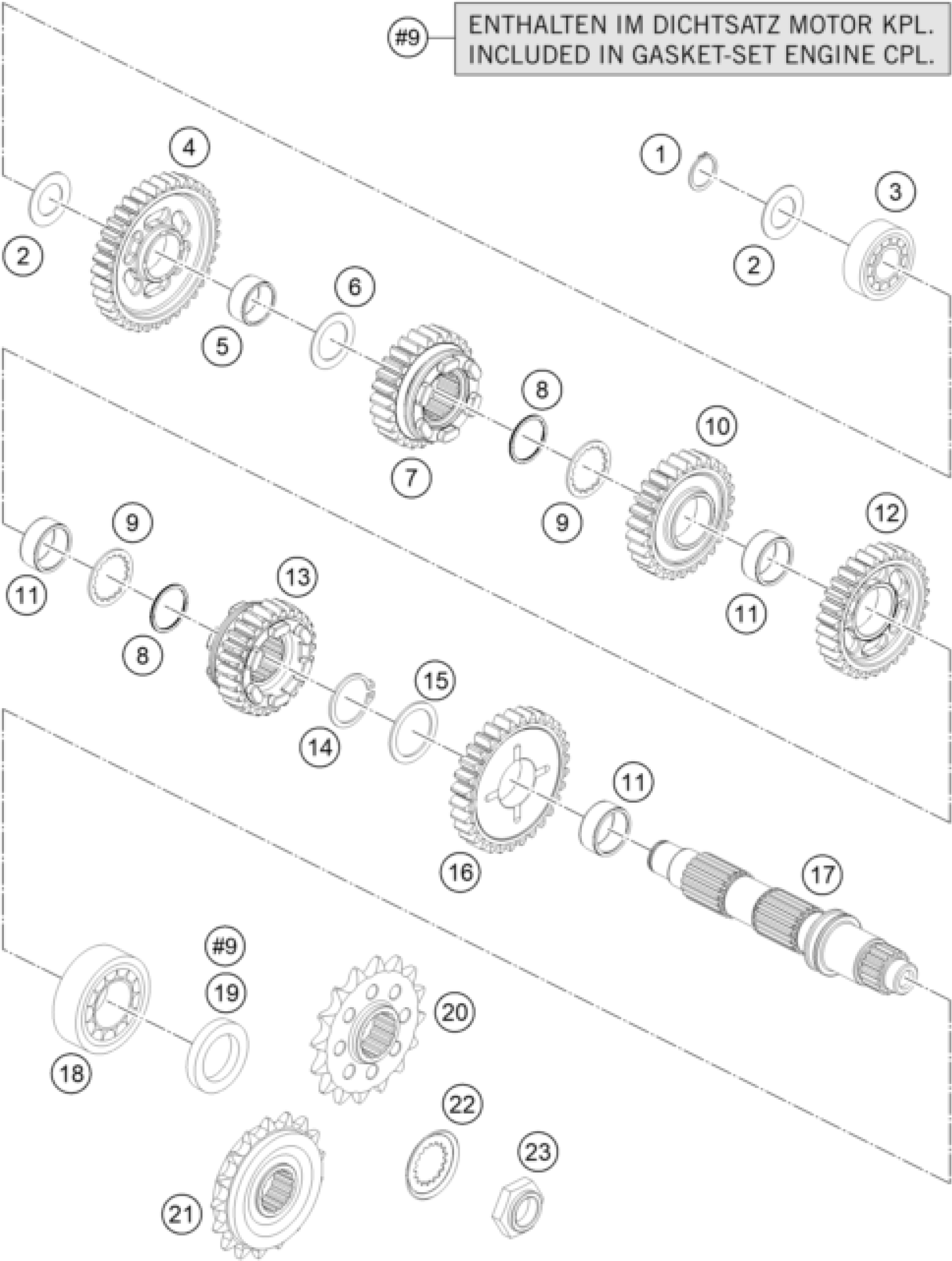

KTM 1290 SUPERDUKE R BLACK ABS 16 <2016> TRANSMISSION II - COUNTERSHAFT Diagram

#

Description

Price

1

CIRCLIP DIN471 20X1,2

0471200120

$2.05

2

STOP DISK 20,2 X 34 X 1

60033043000

$2.05

3

BALL BEARING 6204 J1 C3

0625062043

$14.11

4

IDLE GEAR 1. GEAR

60333011100

$101.44

5

NEEDLE BEAR. K 24X28X13 TN

0405242813

$18.13

6

STOP DISK 24,3/35,75/1

60033044000

$3.08

7

SLIDING GEAR 5.GEAR

60333015000

$190.17

8

TWISTED CIRCLIP D29

0471029000

$5.23

9

STOP DISK 27/36/1,5

61233045000

$5.23

10

IDLER GEAR 4. GEAR

60333014000

$152.40

11

NEEDLE BEAR. K 26-31-13

0405263113

$8.59

12

IDLER GEAR 3. GEAR

60333013000

$157.26

13

SLIDING GEAR 6. GEAR

60333016000

$103.90

14

CIRCLIP DIN0471-30X1,5 NIRO

0471300151

$7.56

15

STOP DISK 29,9/39/1,5

61233046000

$5.88

16

IDLE GEAR 2. GEAR

60333012100

$158.38

17

COUNTERSHAFT

61333010000

$204.48

18

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

$83.21

19

SH.SEAL RING 30X47X7 BSL VITON

0760304772

$20.37

20

CHAIN SPROCKET 17-T 03

60033029017

Unavailable

21

Chain sprocket 17-t, damped 0

60033129017

$59.18

22

Securing plate toothed

60033034000

$2.05

23

Hexagon nut M20x1.5 WS32

60033035000

$12.43
