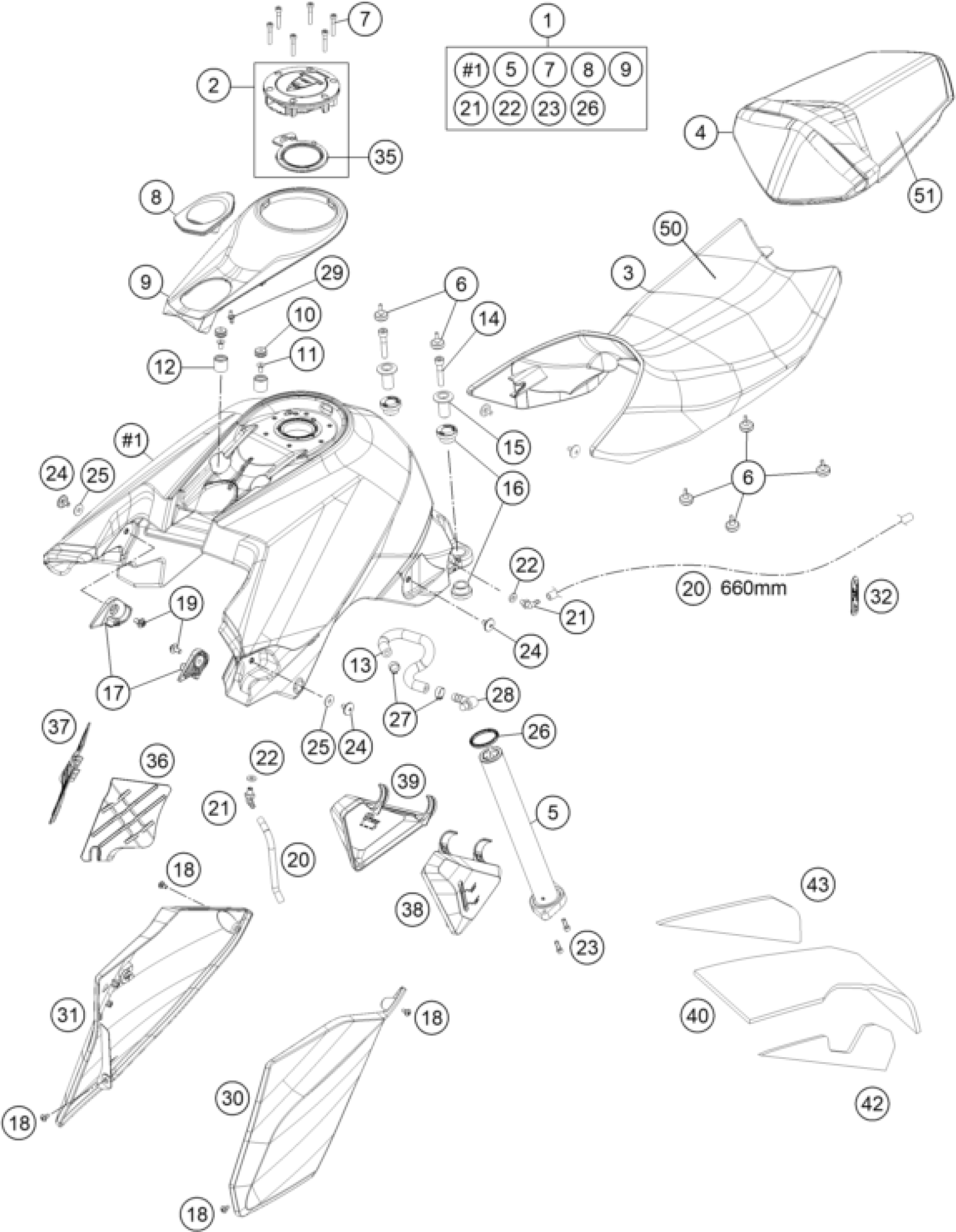

KTM 1290 SUPERDUKE R BLACK ABS 16 <2016 TANK, SEAT Diagram

TANK CAP CPL.

61307008100

$436.82

FUEL TANK ASS. SD BLACK 14

6130701304430A

$1,276.27

SEAT DRIVER CPL.

61307040000

$99.34

HH collar screw M6x13 TX30

0024060136

$3.08

HOSE 5,4X9,4 NBR, METER

60007126001

$7.10

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

AH collar screw DIN 912 M5x16

0912050163

$1.49

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

Washer DIN9021-A 6.4

0021060003

$2.05

Gasket fuel lever sensor

60307080090

$50.67

Variable one-ear clamp 15.7mm

00050157706

$5.23

GASKET TANK CAP

60307008190

$7.85

PLUG CPC

7720701000030

$37.02

TANK SPOILER L/S BLACK 2014

61308050000CAB

$273.48

TANK SPOILER BLACK 2014

61308051000CAB

$273.48

FRAME COVER L/S

61303085000

$9.44

FRAME COVER R/S

61303086000

$12.71

KNEE PAD L/S

61303091000

$21.87

KNEE PAD R/S

61303092000

$21.87

INSULATION MAT MIDDLE

61306095010

$20.75

INSULATION MAT L/S

61306095020

$17.01

INSULATION MAT R/S

61306095030

$17.48

SEAT COVER

61307040050

$35.55

SEAT COVER

61307047050

$27.71

RUBBER CABLE TIE 60MM 03

60011093060

$4.11

SEAT PILLION CPL.

61307047000

$167.73

GAS LEVEL SENSOR

61307080000

$134.35

Distance rupper airbox 03

60006001021

$2.05

AH SCREW DIN0912-M 5X25

0912050253

$1.49

COVER IGNITION LOCK

61307059000

$12.43

COVER FUEL TANK

61307058000

$23.18

RUBBER SLEEVE 5X7.6X13MM

76008052050

$2.05

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

$2.05

BUSHING 13X20X18,5MM

76008052000

$7.94

FUEL HOSE PUMP

61307017050

$23.74

AH collar screw DIN0912 M8x40

0912080403

$2.05

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

collar bushing, bearing, outsi

61007060000

$9.90

collar bushing, front tank hol

61007065000

$7.85

TANK MOUNTING FRONT L/S & R/S

61307021044

$4.56

special screw M5x12

69008021160

$4.11
