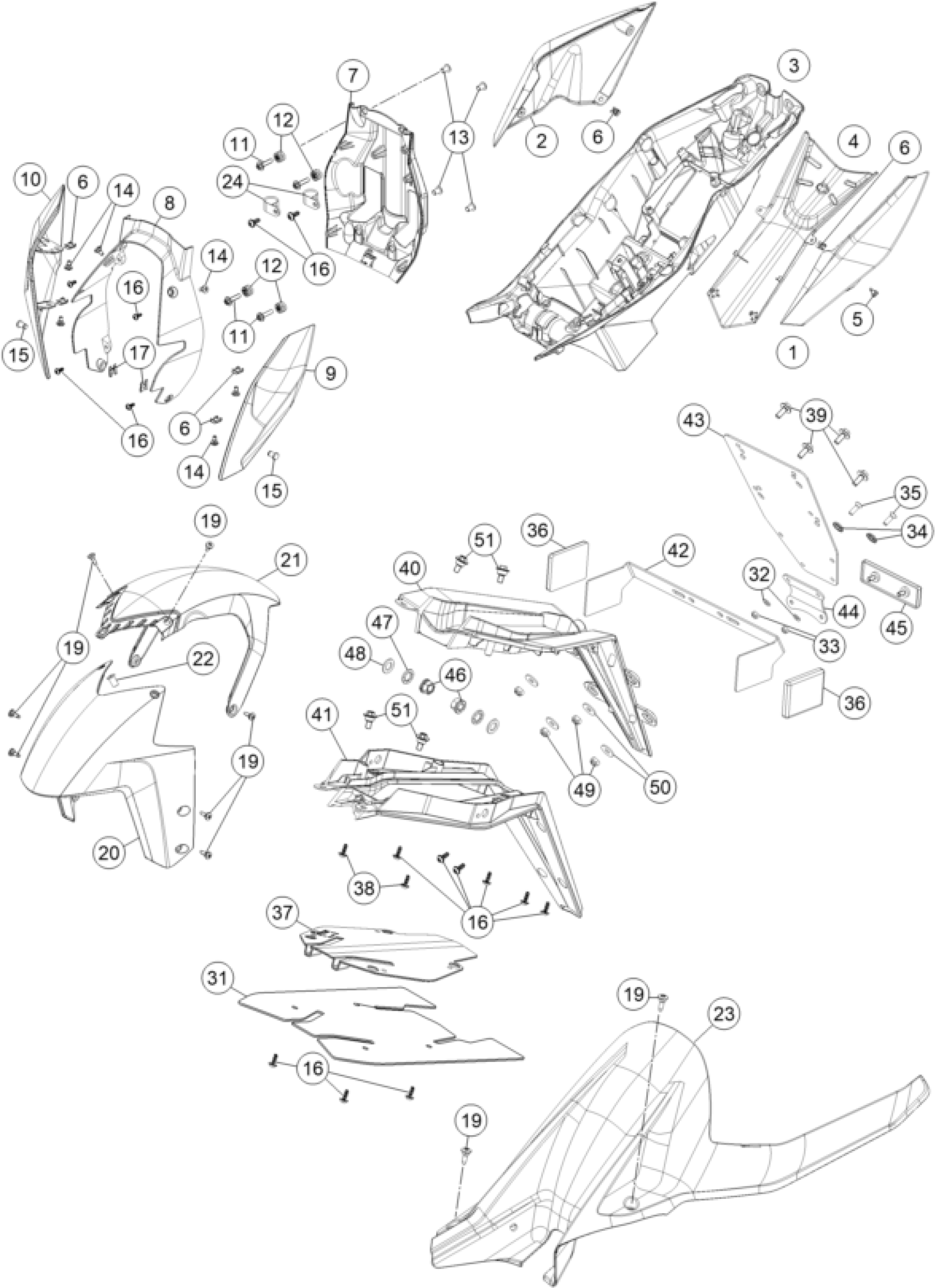

KTM 1290 SUPERDUKE R BLACK ABS 16 <2016 MASK, FENDERS Diagram

REAR FAIRING L/S BLACK

61308041000CAA

$219.16

REAR FAIRING R/S BLACK

61308042000CAA

$219.16

TAIL END LOWER PART

61308018000

$90.13

REAR FAIRING LOWER PART BLACK

6130804000033

$12.99

EJOT PT screw K50x14

0081050141

$1.49

clip nut M5

69008021080

$3.08

MASK REAR PANEL

61314060000

$12.71

MASK MIDDLE PART

61314061000

$13.46

MASK SPOILER L/S BLACK 14

6130800300030A

$98.07

MASK SPOILER R/S BLACK 14

6130800400030A

$98.07

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

RUBBER SLEEVE 7X10,8X16MM

76014069051

$2.05

COLLAR BUSHING 6,2X7,5X13X12

76014062000

$3.08

special screw M5x12

69008021160

$4.11

BOLT 8X12X16MM

61313057000

$5.70

EJOT PT screw K50x12

0081050121

$2.05

SECURING CLIP D=8MM 03

60013058000

$2.05

special screw M5x17

69008021060

$3.08

FENDER FRONT BLACK 2014

6130801000030A

$143.89

REAR FENDER BLACK

6130801100033

$27.87

blind plug nut M5 WN16A

60008008050

$3.73

REARFENDER

61304050100

$47.68

PVC-CLAMP HEYCO 13,9 3379

69007029000

$3.08

SPLASH PROTECTION AUSTRALIA

61308123010

Unavailable

WASHER DIN0125-A 5,3

0125050003

$1.49

Self locking nut DIN 985 M5

0985050003

$2.05

WASHER 6MM

40006006000

$1.49

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

SIDE REFLECTOR RED REAR

16512180100

$7.10

SPLASH PROTECTION

61308023010

$8.31

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

HH collar screw M6x15 TX30

0024060156

$3.08

NUMBER PLATE CARRIER UPP. PART

61308022000

$48.33

NUMBER PLATE CARRIER LOW. PART

61308023000

$48.61

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

license plate mouning plate

60012081200

$8.41

BRACKET FOR REFLECTOR

58412080050

$6.07

REFLECTOR RED

58412080000

$5.23

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

Washer DIN0433-M10

0433100003

$1.49

Self lock. nut DIN985-M6-A2

0985060003

$2.05

Washer DIN9021-A 6.4

0021060003

$2.05

Special screw M6x15x5.5

83008100015

$3.08
