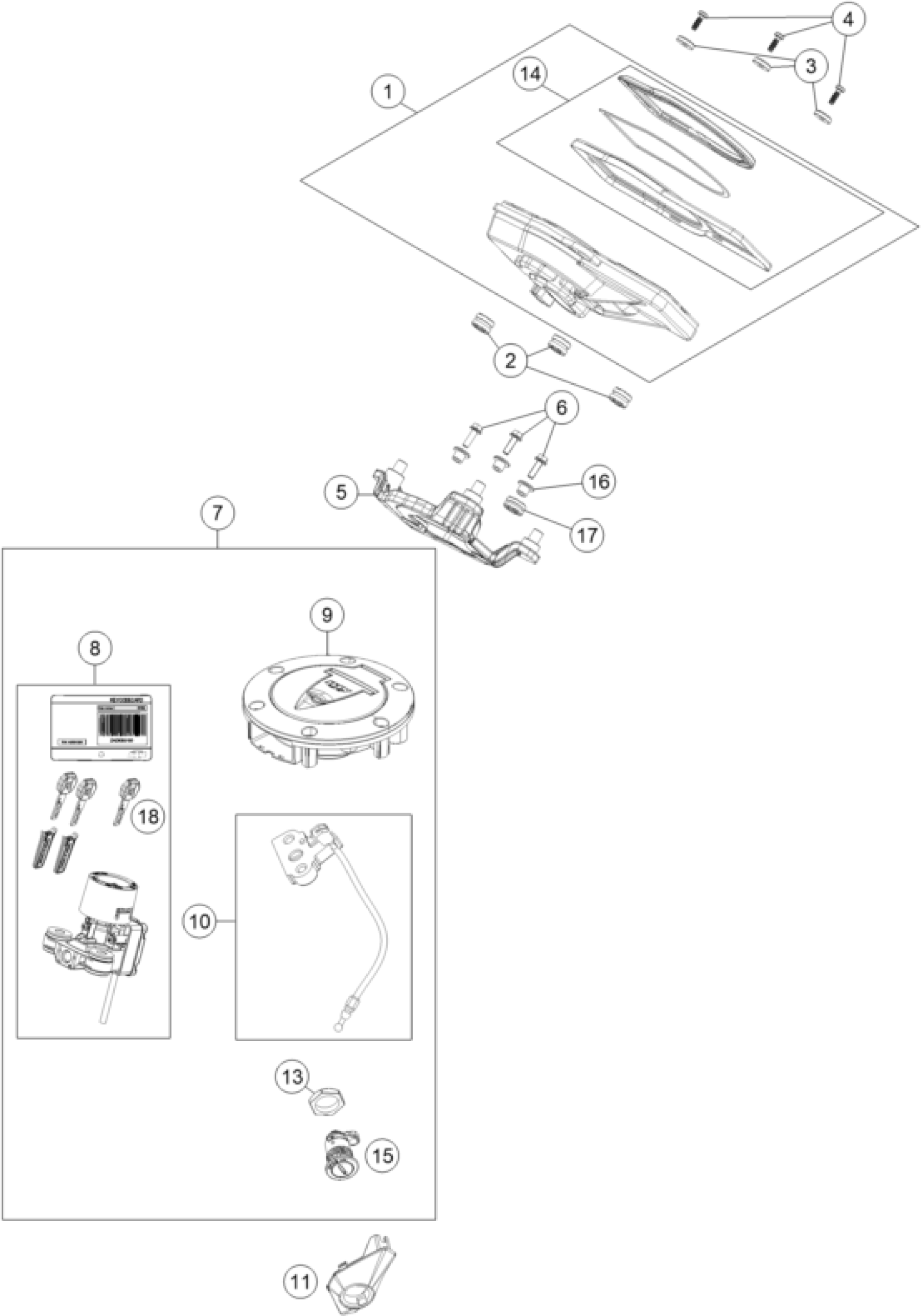

KTM 1290 SUPERDUKE R BLACK ABS 16 <2016> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

18

KTM ignition key

60411067000

$179.98

1

SPEEDOMETER

60414069000

$851.50

2

DAMP. COMPONENT SPEEDOMETER

61314069051

$5.32

3

SPECIAL WASHER 4.5X16

60308045000

$5.70

4

SCREW FOR PLASTIC PT K50X14T25

0081250141

$2.05

5

INSTRUMENTS BRACKET

61314062100

$14.48

6

HH collar screw M5x20 TX30

0025050206

$2.05

7

LOCK KIT

61311066244

$714.42

8

IGNITION LOCK

61311066100

$891.14

9

TANK CAP CPL.

61307008100

$436.82

10

SEAT LOCK MECHANISM CPL.

61307050000

$35.71

11

Support seat lock

61307055000

$6.44

13

NUT SEAT LOCK M22X1,5

69007050050

$10.74

14

Frame cpl. without screen

60314069050

$180.91

15

LOCK CYLINDER SEAT LOCK

61307050020

$151.93

16

Collar bushing 5.5x9x15x8.5

61314062050

$5.41

17

Damper 40 SHORE

62142041100

$4.11
