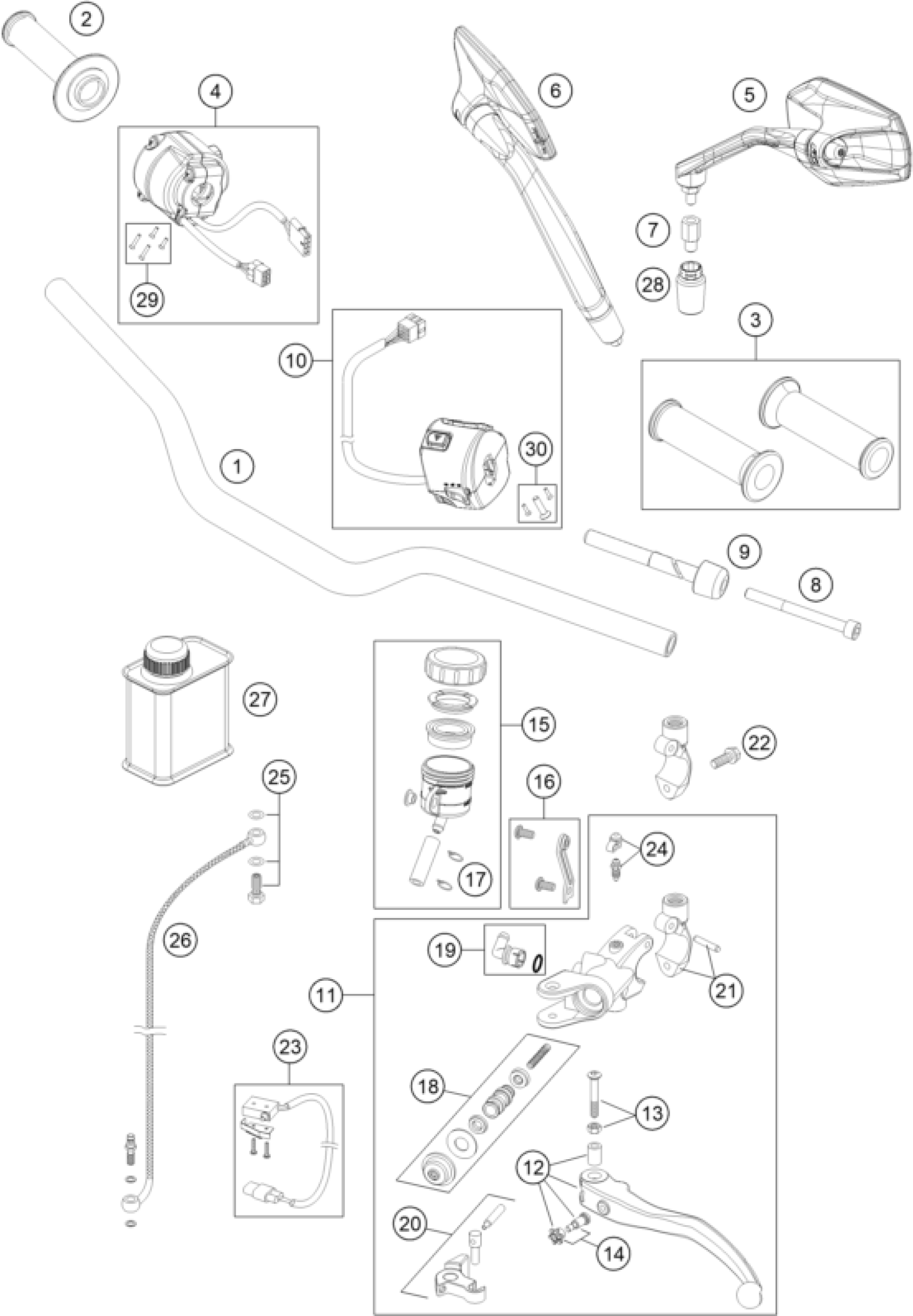

KTM 1290 SUPERDUKE R BLACK ABS 16 <2016> HANDLEBAR, CONTROLS Diagram

#

Description

Price

29

SCREW SET START-STOP SWITCH

76011073110

Unavailable

30

SCREW SET HANDLEBAR SWITCH

60311070110

Unavailable

1

HANDLEBAR L=743MM D=28,5MM

6130200100017

Unavailable

2

THROTTLE GRIP

76002010000

Unavailable

3

GRIP SET OPEN END

76002021000

Unavailable

4

START-STOP/E-GAS

76011073100

Unavailable

5

MIRROR l/S

61312040100

Unavailable

6

MIRROR R/S CPL.

61312041100

Unavailable

7

ADAPTOR FOR MIRROR

61312040050

Unavailable

8

SHCS DIN 912 M6x65

0912060653

Unavailable

9

handlebar weight

61002004000

Unavailable

10

HANDLEBAR SWITCH

60311070100

Unavailable

13

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

14

ADJUSTING SCREW CPL.

61002043000

Unavailable

11

MASTER CYLINDER CPL.

6130203014430

Unavailable

12

CLUTCH LEVER CPL.

6130203100030

Unavailable

15

RESERVOIR CPL.

61002055144

Unavailable

16

RETAINING PLATE RESERVOIR

61302055050

Unavailable

17

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

18

REP. SET PISTON D=12MM 2007

59413008000

Unavailable

19

ANGLE PIECE CPL. (DOT)

61002051144

Unavailable

20

ROCKER CPL. 05

61002056000

Unavailable

21

CLAMP MIRROR W. TENSION PIN

6130204400030

Unavailable

22

HH collar screw M6x12 TX30

0025060126

Unavailable

23

CLUTCH SWITCH ATV

83111049000

Unavailable

24

BLEEDER SCREW WITH CAP

61002054000

Unavailable

25

HOLLOW SCREW + COPPER GASKET

59032062000

Unavailable

26

CLUTCH PIPE 05

61032063000

Unavailable

27

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

28

RUBBER SLEEVE

61312040030

Unavailable
