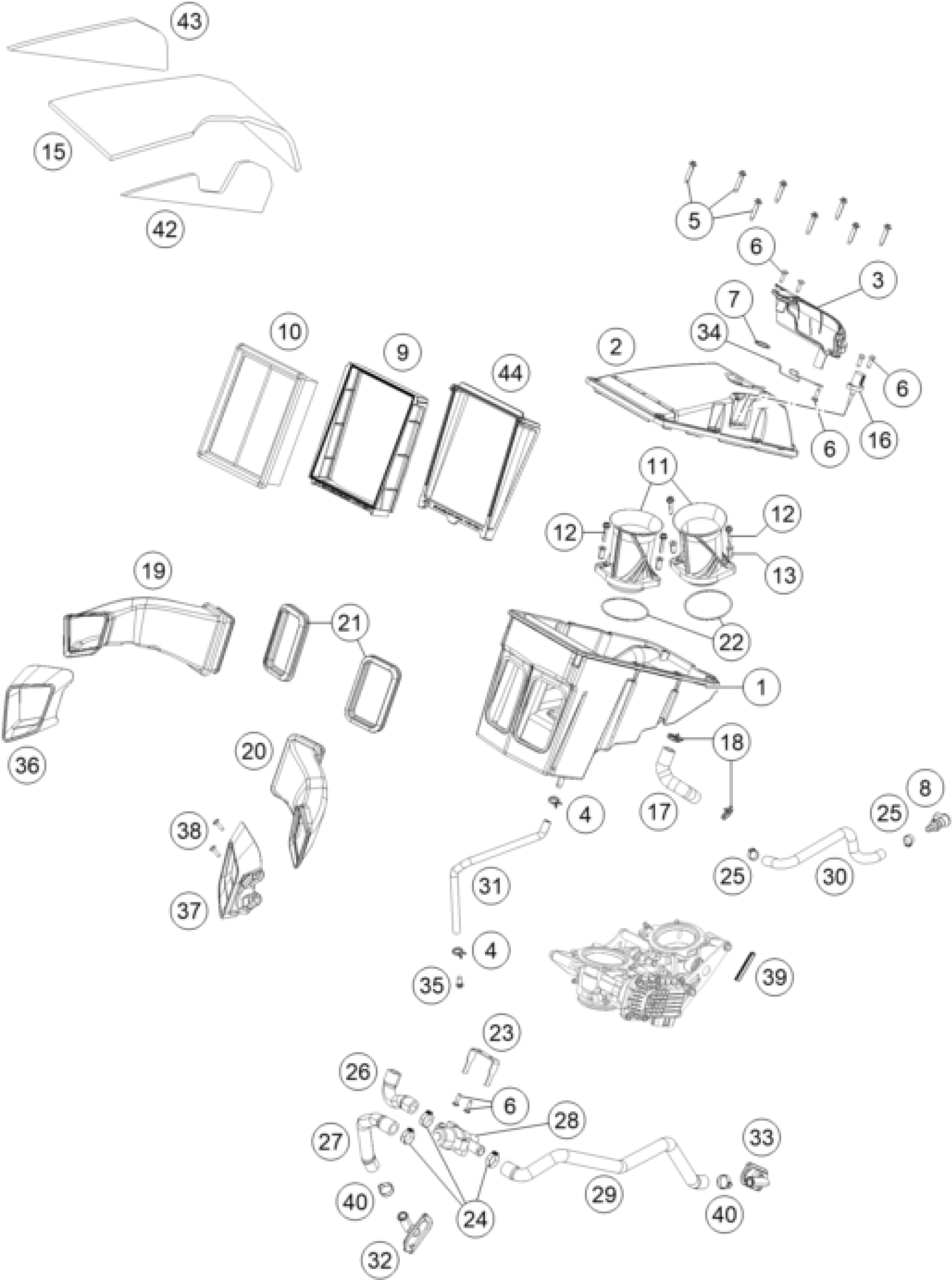

KTM 1290 SUPERDUKE R BLACK ABS 16 <2016> AIR FILTER Diagram

#

Description

Price

1

AIR FILTER HOUSING LOWER PART

60306001200

$42.16

2

AIR FILTER BOX COVER

60306002000

$43.00

3

OIL SEPARATOR

60330088100

$37.67

4

CLAMP YDNAC 10128 12MM

58031005000

$3.08

5

Special screw K60X30 WS=6

0017060305

$2.05

6

EJOT PT SCREW K50X16 1451

0081050161

$1.49

7

O-RING 21,00X2,00 NBR70

0770021020

$2.05

9

FILTERCLAMPING FRAME

60406016000

Unavailable

10

Air filter

60706015000

$10.84

11

INTAKE TRUMPET LENGTH 100

61341040100

$19.72

8

Clutch CPC PLCD17005, black

5850701050030

$55.90

12

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

13

Bushing intake funnel

60306042010

$4.11

15

INSULATION MAT MIDDLE

61306095010

$20.75

16

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

17

OIL SEPARATOR FOAM HOSE

60330088030

$9.53

18

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

19

INTAKE SNORKEL R/S

61306041000

$18.04

20

INTAKE SNORKEL L/S

61306040000

$20.56

21

GASKET INTAKE DUCT

60306040050

$6.63

22

O-RING 66X2,5 FKM

0770066025

$6.35

23

RETAINING BRACKET SLS

61305031000

$22.71

24

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

25

Variable one-ear clamp 15.7mm

00050157706

$5.23

26

SAS HOSE - AIRBOX

61305035023

$16.54

27

SAS HOSE CYLINDER FRONT

61305035021

$19.72

28

CONTROL VALVE SAS 05

61005026000

$132.76

29

SAS HOSE CYLINDER REAR

61305035022

$32.25

30

FUEL HOSE THROTTLE VALVE

61307016050

$30.85

31

HOSE NBR 7X11 PER METER

60015019001

$7.66

32

SAS flange

61205122000

$13.36

33

SAS-FLANGE

61205032000

$18.97

34

MOUNTING BRACKET PLUG

61311099000

$5.98

35

HH collar screw M8x12 TX40

0025080126

$3.08

36

COVER INTAKE SNORKEL R/S

61306041033

$46.84

37

COVER INTAKE SNORKEL L/S

61306040033

$46.84

38

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

39

EDGE PROTECTOR L=45MM 05

61011055045

$3.08

40

VARIABLE ONE-EAR CLAMP 22,0MM

00050220706

$3.08

42

INSULATION MAT L/S

61306095020

$17.01

43

INSULATION MAT R/S

61306095030

$17.48

44

FILTERCLAMPING LINER

60406017000

$7.28
