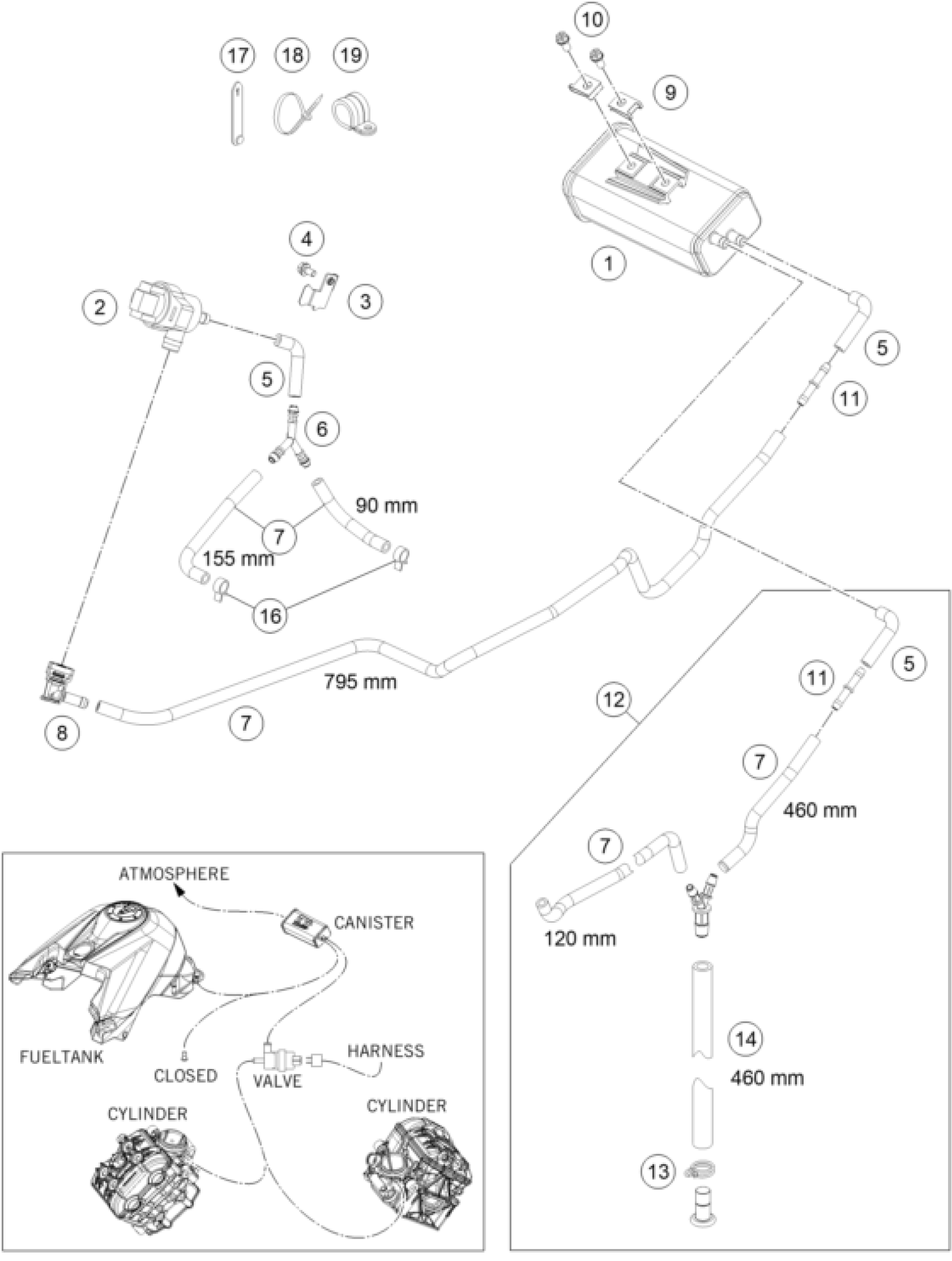

KTM 1290 SUPERDUKE R BLACK ABS 15 <2015> EVAPORATIVE CANISTER Diagram

#

Description

Price

12

HOSE TANK BREAT.-AKF

61315025133

Unavailable

1

EVAPORATIVE CANISTER 09

75015001100

Unavailable

2

VALVE FOR CARBON CANISTER 07

61115015000

Unavailable

3

SUPPORT AKF VALVE

61315002000

Unavailable

4

HH collar screw M5x10 TX30

0025050106

Unavailable

5

PREFORMED HOSE 6X10 FPM

61315022000

Unavailable

6

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

Unavailable

8

FITTING PIECE NQV2 NW7 90°

61115016000

Unavailable

9

clip nut M6

54603048100

Unavailable

10

HH collar screw M6x12 TX30

0025060126

Unavailable

16

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

17

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

19

CABLE CLAMP D=16

61315027000

Unavailable

7

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

14

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

11

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

13

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable
