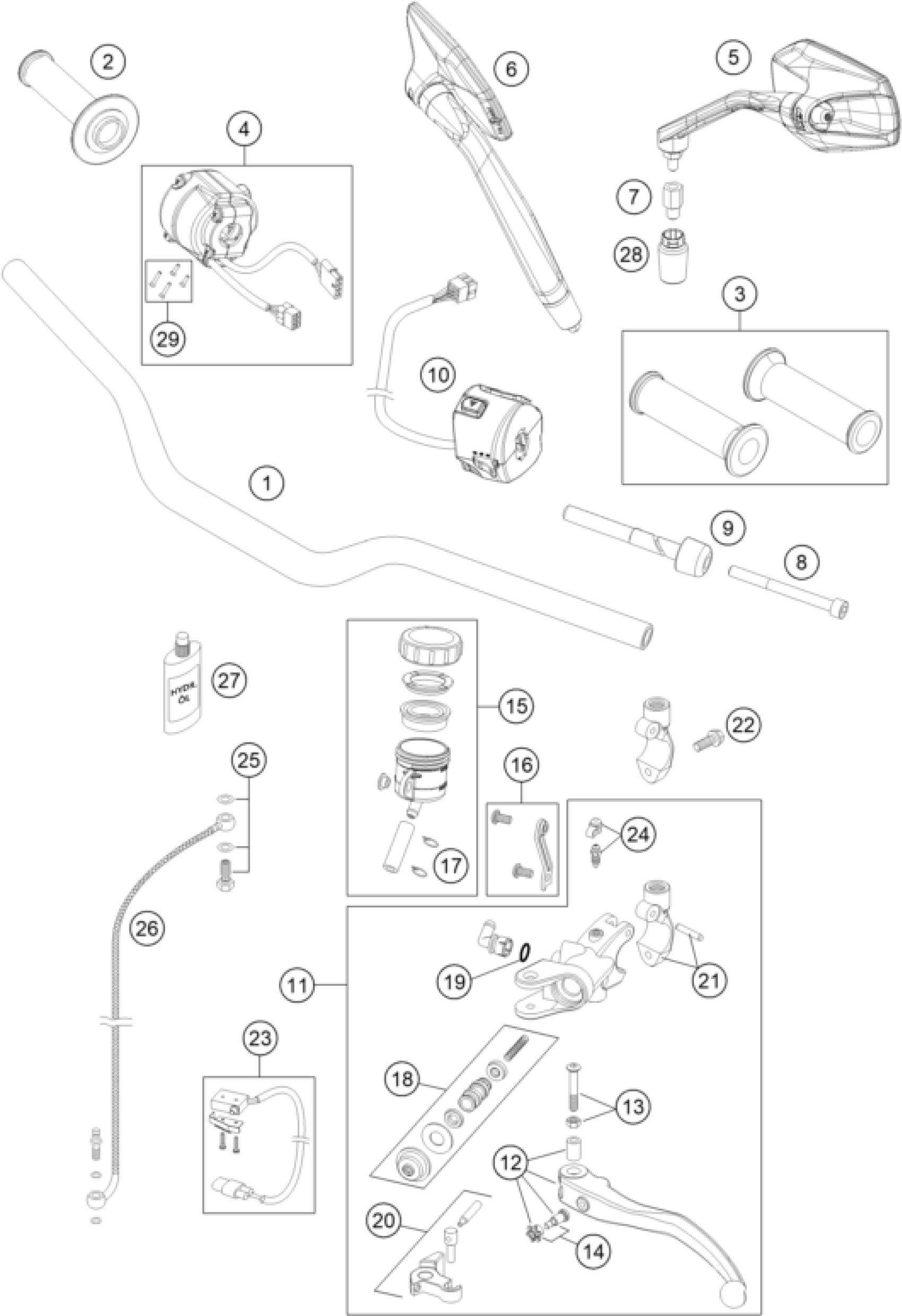

KTM 1290 SUPERDUKE R BLACK ABS 15 <2015 HANDLEBAR, CONTROLS Diagram

HANDLEBAR L=743MM D=28,5MM

6130200100017

$159.41

THROTTLE GRIP

76002010000

$29.91

GRIP SET OPEN END

76002021000

$46.27

START-STOP/E-GAS

76011073100

$347.34

MIRROR l/S

61312040100

$65.35

MIRROR R/S CPL.

61312041100

$93.30

ADAPTOR FOR MIRROR

61312040050

$15.14

SHCS DIN 912 M6x65

0912060653

$2.05

handlebar weight

61002004000

$35.52

HANDLEBAR SWITCH

60311070100

$522.19

MASTER CYLINDER CPL.

6130203000030

$522.47

CLUTCH LEVER CPL.

6130203100030

$89.00

LEVER SCREW CPL.

61302038000

$21.31

ADJUSTING SCREW CPL.

61002043000

$19.72

RESERVOIR CPL. 05

61002055000

$67.31

RETAINING PLATE RESERVOIR

61302055050

$49.73

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

REP. KIT PISTON D=12MM

61302032000

$90.41

O-RING ANGLE PIECE

61002051000

$2.05

ROCKER CPL. 05

61002056000

$43.94

CLAMP MIRROR W. TENSION PIN

6130204400030

$45.06

HH collar screw M6x12 TX30

0025060126

$3.08

CLUTCH SWITCH 05

61011049000

$76.76

BLEEDER SCREW WITH CAP

61002054000

$23.55

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

CLUTCH PIPE 05

61032063000

$88.35

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

RUBBER SLEEVE

61312040030

$7.85

SCREW SET START-STOP SWITCH

76011073110

$6.72
