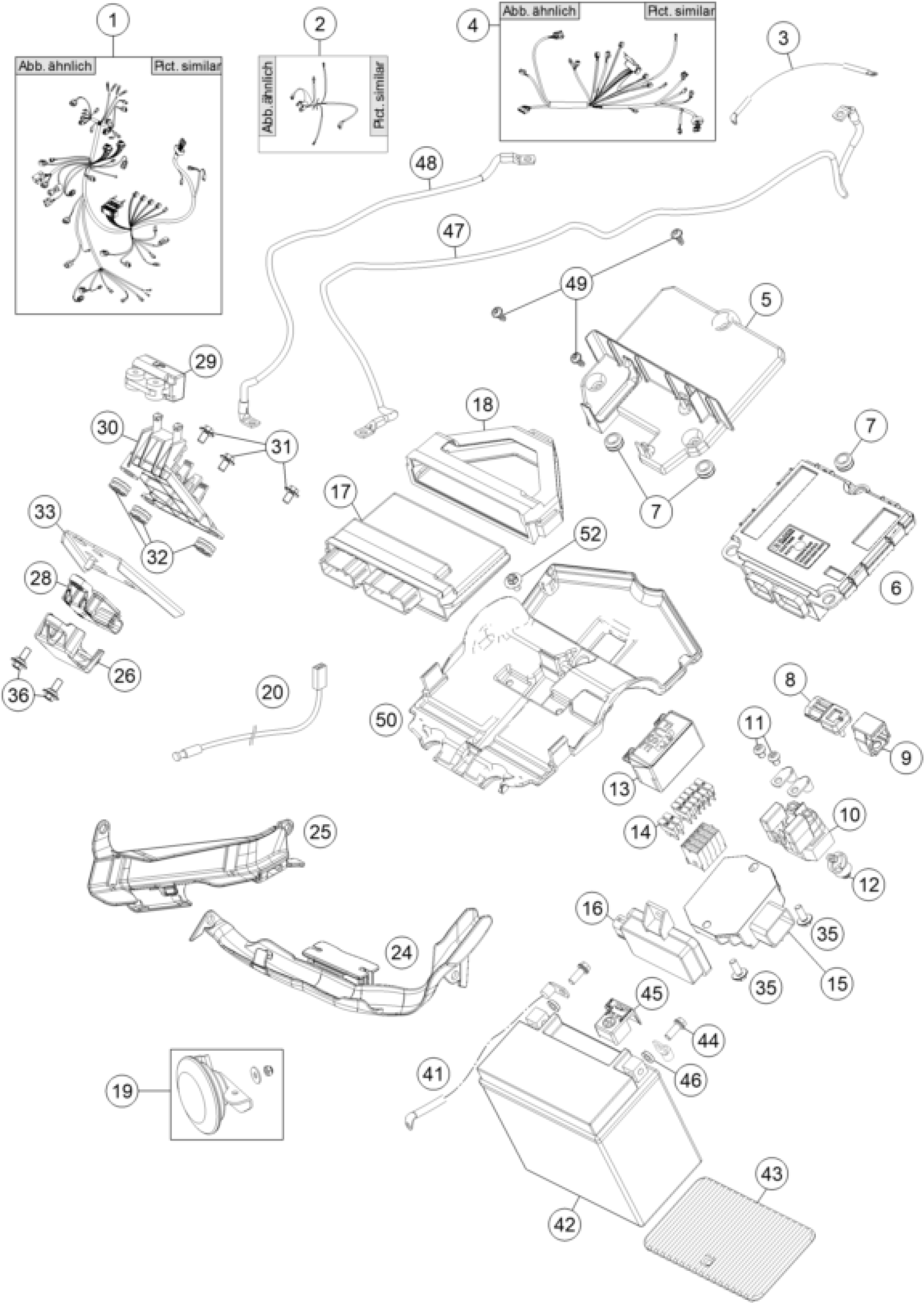

KTM 1290 SUPERDUKE R BLACK ABS 14 <2014> WIRING HARNESS Diagram

#

Description

Price

16

RECEIVER AIR PRESSURE SENSOR

60312032000

Unavailable

14

Plug-in fuse, big 10A

58011109110

Unavailable

33

SUPPORT SLOPING POS. SENSOR

61342090040

Unavailable

35

HH collar screw M6x20 TX30

0025060206

Unavailable

32

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

6

MOTORCYCLE CONTROL UNIT 2.1

60311033200

Unavailable

1

MAIN WIRING HARNESS CPL.

61311075033

Unavailable

15

VOLTAGE REGULATOR

60311034000

Unavailable

11

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

50

SUPPORT ECU

61311055000

Unavailable

4

REAR WIRING HARNESS

61311076000

Unavailable

46

WASHER 6 X 12 X 3

12011016000

Unavailable

47

STARTER CABLE 16MM

61311059000

Unavailable

2

WIRING ENGINE

60311085000

Unavailable

29

ROLLOVER SENSOR 05

61041088000

Unavailable

19

Direct current horn complete

61611060033

Unavailable

12

Cable tie w. socket D=6.5

69011092000

Unavailable

24

CABLE CHANNEL L/S

60311046000

Unavailable

31

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

30

PLUG BRACKET

61311083000

Unavailable

28

SLOPING POSITIONS SENSOR

60342090000

Unavailable

3

BATTERY CABLE

61311059050

Unavailable

36

SPECIAL SCREW M6X15X3

83008000015

Unavailable

14

Plug-in fuse, big 30A

58011109130

Unavailable

52

special screw M6x12x3

83008000012

Unavailable

26

COVER SENSOR BOX

61342090050

Unavailable

41

GROUND CABLE BATT.-FRAME 16MM

61311098000

Unavailable

20

TEMPERATURE SENSOR 07

61111018000

Unavailable

25

CABLE CHANNEL R/S

60311047000

Unavailable

44

HH collar screw M6x16 TX30

0025060166

Unavailable

48

GROUND CABLE ENGINE-FRAME 16MM

61311097000

Unavailable

49

EJOT PT screw K50x14

0081050141

Unavailable

8

PRESSURE SENSOR 06

61041085100

Unavailable

9

RUBBER SUPP. PRESSURE SENS. 06

61041085150

Unavailable

10

Starter relay

76211058000

Unavailable

13

RUBBER CASING FUSE BOX

61311087050

Unavailable

17

Engine control unit

61341031000

Unavailable

5

COVER MCU

61308018060

Unavailable

7

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

18

ECU RUBBER BRACKET

60341031050

Unavailable

42

BATTERY YUASA YTX14-BS

61311053000

Unavailable

43

RUBBER PLATE FOR BATTERY

61311053050

Unavailable

45

COVER POSITIVE POLE

62111059060

Unavailable
