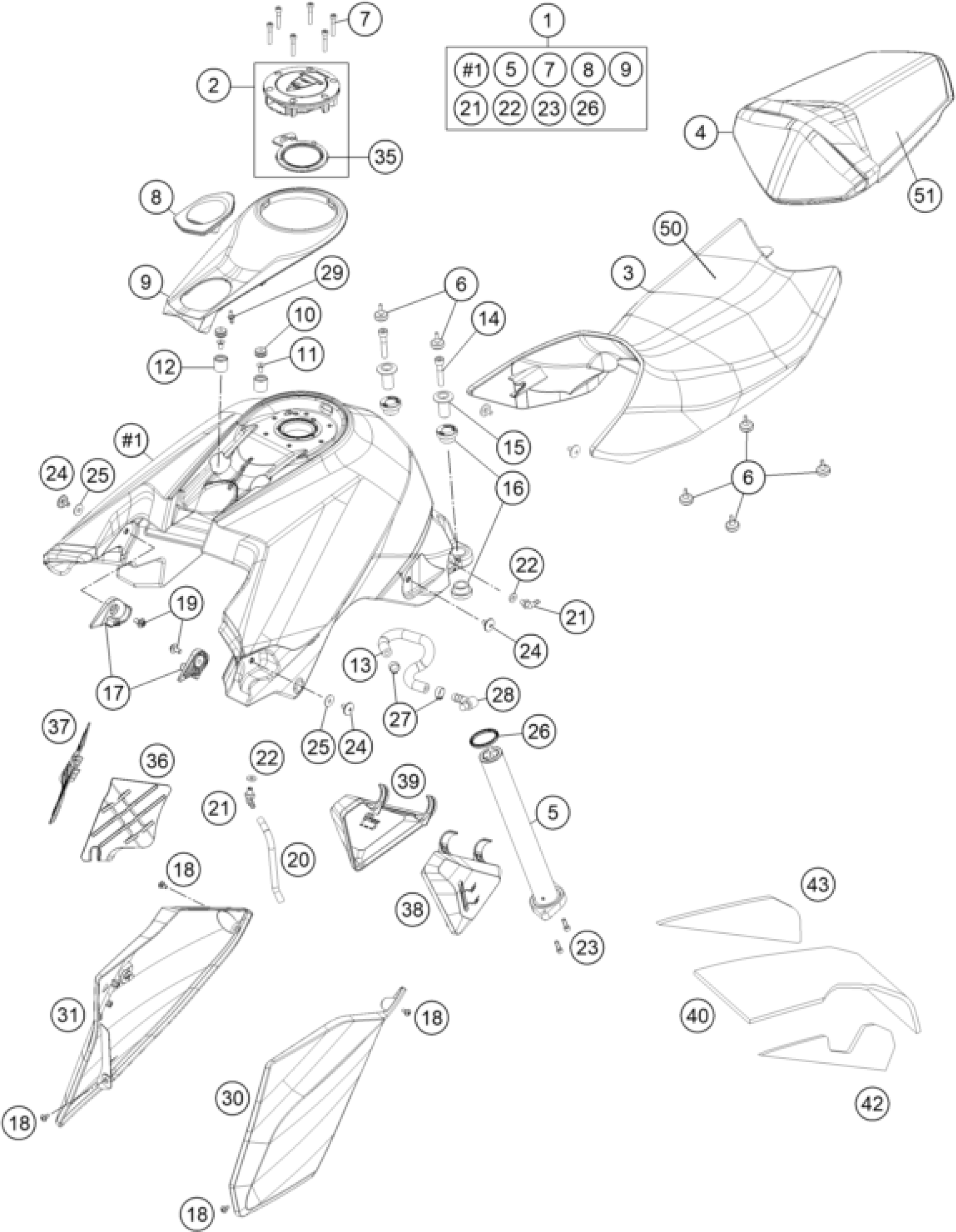

KTM 1290 SUPERDUKE R BLACK ABS 14 <2014> TANK, SEAT Diagram

#

Description

Price

25

Washer DIN9021-A 6.4

0021060003

Unavailable

31

TANK SPOILER BLACK 2014

61308051000CAB

Unavailable

36

FRAME COVER L/S

61303085000

Unavailable

37

FRAME COVER R/S

61303086000

Unavailable

38

KNEE PAD L/S

61303091000

Unavailable

39

KNEE PAD R/S

61303092000

Unavailable

30

TANK SPOILER L/S BLACK 2014

61308050000CAB

Unavailable

18

special screw M5x12

69008021160

Unavailable

6

Distance rupper airbox 03

60006001021

Unavailable

21

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

Unavailable

14

AH collar screw DIN0912 M8x40

0912080403

Unavailable

13

FUEL HOSE PUMP

61307017050

Unavailable

28

PLUG CPC

7720701000030

Unavailable

20

HOSE 5,4X9,4 NBR, METER

60007126001

Unavailable

22

GASKET FOR CONNECTING PIECE 03

60007024050

Unavailable

7

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

2

TANK CAP CPL.

61307008100

Unavailable

50

SEAT COVER

61307040050

Unavailable

51

SEAT COVER

61307047050

Unavailable

35

GASKET TANK CAP

60307008190

Unavailable

40

INSULATION MAT MIDDLE

61306095010

Unavailable

42

INSULATION MAT L/S

61306095020

Unavailable

43

INSULATION MAT R/S

61306095030

Unavailable

29

QUICK RELEASE-NIPPLE 03

54806008051

Unavailable

9

COVER FUEL TANK

61307058000

Unavailable

5

GAS LEVEL SENSOR

61307080000

Unavailable

23

AH collar screw DIN 912 M5x16

0912050163

Unavailable

10

RUBBER SLEEVE 5X7.6X13MM

76008052050

Unavailable

11

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

Unavailable

12

BUSHING 13X20X18,5MM

76008052000

Unavailable

24

SCREW FOR SEAT M6X11,5/8

58407011100

Unavailable

16

collar bushing, front tank hol

61007065000

Unavailable

15

collar bushing, bearing, outsi

61007060000

Unavailable

8

COVER IGNITION LOCK

61307059000

Unavailable

1

FUEL TANK ASS. SD BLACK 14

6130701304430A

Unavailable

17

TANK MOUNTING FRONT L/S & R/S

61307021044

Unavailable

19

HH collar screw M6x13 TX30

0024060136

Unavailable

4

SEAT PILLION CPL.

61307047000

Unavailable

3

SEAT DRIVER CPL.

61307040000

Unavailable

26

Gasket fuel lever sensor

60307080090

Unavailable

27

Variable one-ear clamp 15.7mm

00050157706

Unavailable
