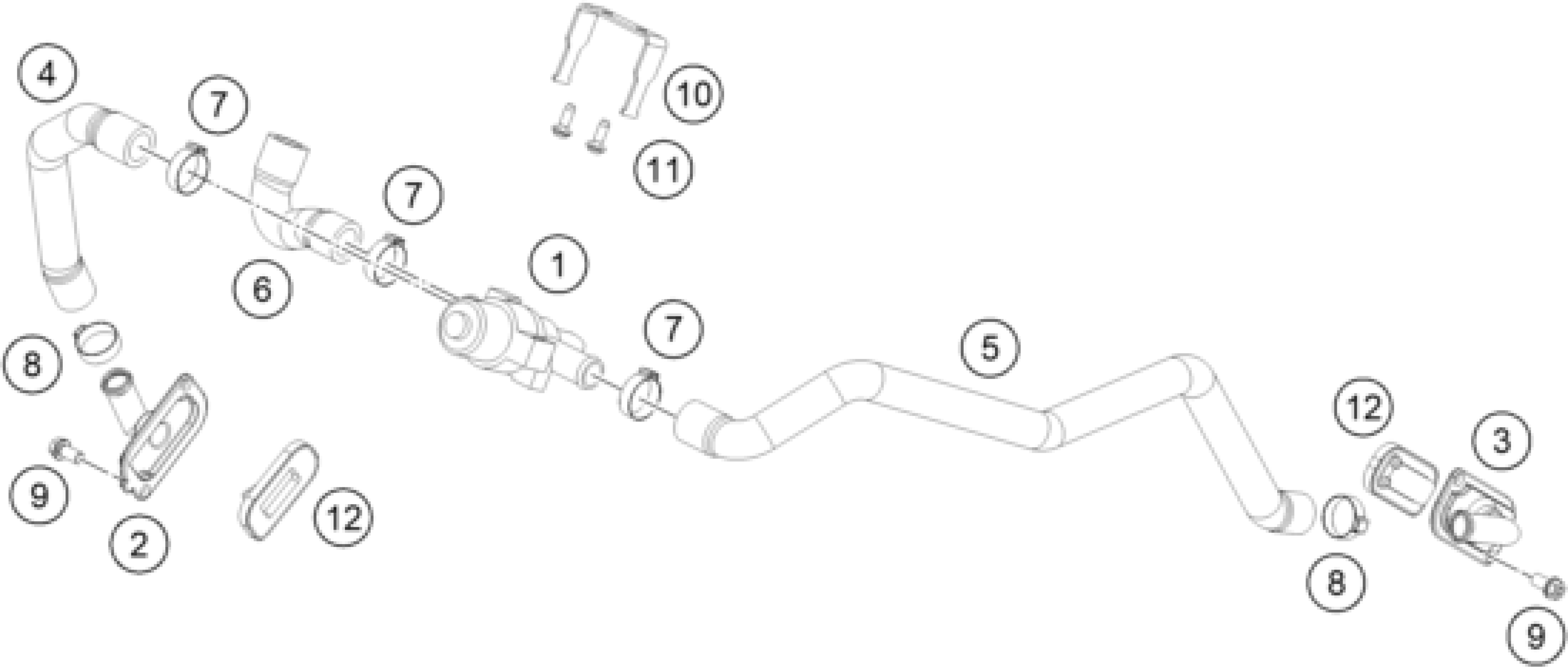

KTM 1290 SUPERDUKE R BLACK ABS 14 <2014> SECONDARY AIR SYSTEM SAS Diagram

#

Description

Price

8

VARIABLE ONE-EAR CLAMP 22,0MM

00050220706

$3.08

9

HH collar screw M6x12 TX30

0025060126

$3.08

1

CONTROL VALVE SAS 05

61005026000

$132.76

2

SAS flange

61205122000

$13.36

3

SAS-FLANGE

61205032000

$18.97

4

SAS HOSE CYLINDER FRONT

61305035021

$19.72

5

SAS HOSE CYLINDER REAR

61305035022

$32.25

6

SAS HOSE - AIRBOX

61305035023

$16.54

7

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

12

SAS Reed Valve

60005026000

$21.50

10

RETAINING BRACKET SLS

61305031000

$22.71

11

EJOT PT SCREW K50X16 1451

0081050161

$1.49
