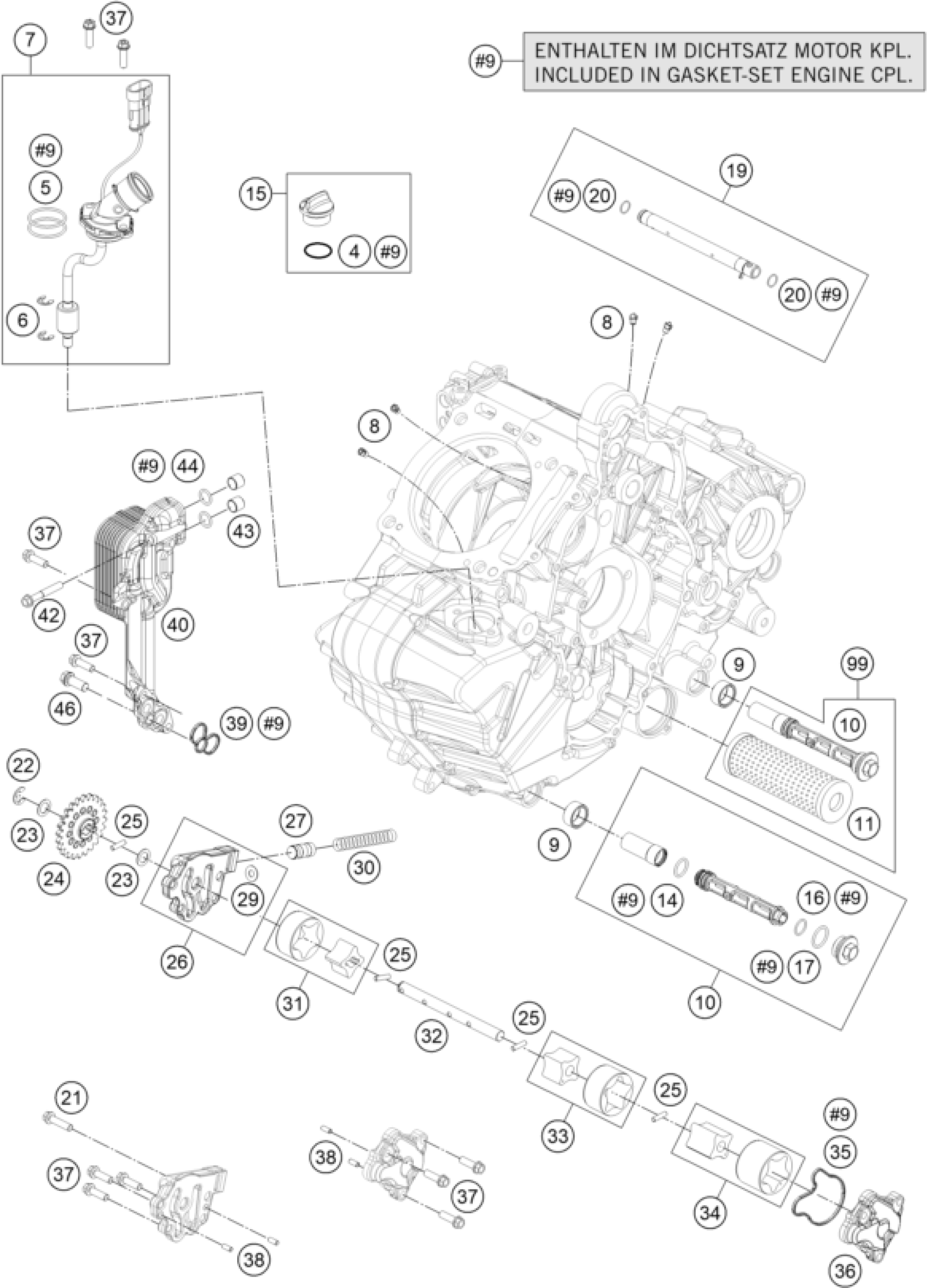

KTM 1290 SUPERDUKE R BLACK ABS 14 <2014> LUBRICATING SYSTEM Diagram

#

Description

Price

4

O-RING 19,00X3,00 NBR

0770191015

$2.05

5

O-RING 30X2,0 FPM

0770300020

$3.08

6

TAB WASHER DIN6799-RS 7,0

0799070000

$1.49

7

OIL INFILLING PIPE CPL.

61338085000

$186.52

8

oil jet 70 M5

60030063070

$8.59

9

OIL SCREEN BUSHING 08

61238017000

$6.91

10

oil screen cpl.

61238021100

$26.17

11

OILFILTER 2014

61338015000

$20.66

14

O-RING 14,00X2,00

0770140200

$2.05

15

OIL FILLER CAP M24x3 W. O-R

58030120000

$8.03

16

O-RING 12,5X1,5 NBR

0770125015

$2.05

17

O-RING 17,00X2,00

0770170200

$2.05

19

OIL INJECTION TUBE CPL. 08

61230065000

$26.45

20

o-ring 10.00x1.00 NBR70

0770010010

$2.05

21

HH collar screw M6x25 TX30

0025060256

$3.08

22

retaining washer DIN 6799 - 8

0799080000

$1.49

23

washer 10x16x0.5

60038007010

$2.33

24

OIL PUMP GEAR 24-T 03

60038001024

$44.12

25

needle roller NRB 4x15.8 G2

0402041580

$2.05

26

PRESSURE PUMP COVER CPL.

61238009144

$30.10

27

CONTROL PISTON LC8 03

60038028000

$5.23

29

shim

50337073000

$2.05

30

CONTROL SPRING

61238026000

$4.11

31

ROTOR-SET 19MM 03

60038009000

$52.91

32

OIL PUMP SHAFT 08

61238002000

$19.91

33

ROTOR SET 22MM

61238011100

$16.63

34

eaton pump set 30mm

61238010100

$22.90

35

MOLDED RING SUCTION PUMP COVER

61238008150

$20.09

36

SUCTION PUMP COVER

61238008200

$23.65

37

HH collar screw M6x20 TX30

0025060206

$3.08

38

needle roller DIN 5402 5x9.8

0402050980

$1.49

39

MOLDED RING

61238051000

$5.23

40

OIL COOLER CPL.

6923805000033

$166.70

42

HH collar screw M6x50 TX30

0025060506

$3.08

43

BUSHING

61238052000

$5.23

44

O-RING 12X2 VITON GREEN

0770012021

$2.05

46

HH collar screw M8x20

0025080206

$2.05

99

OILFILTER SERVICE KIT

00050000068

Unavailable
