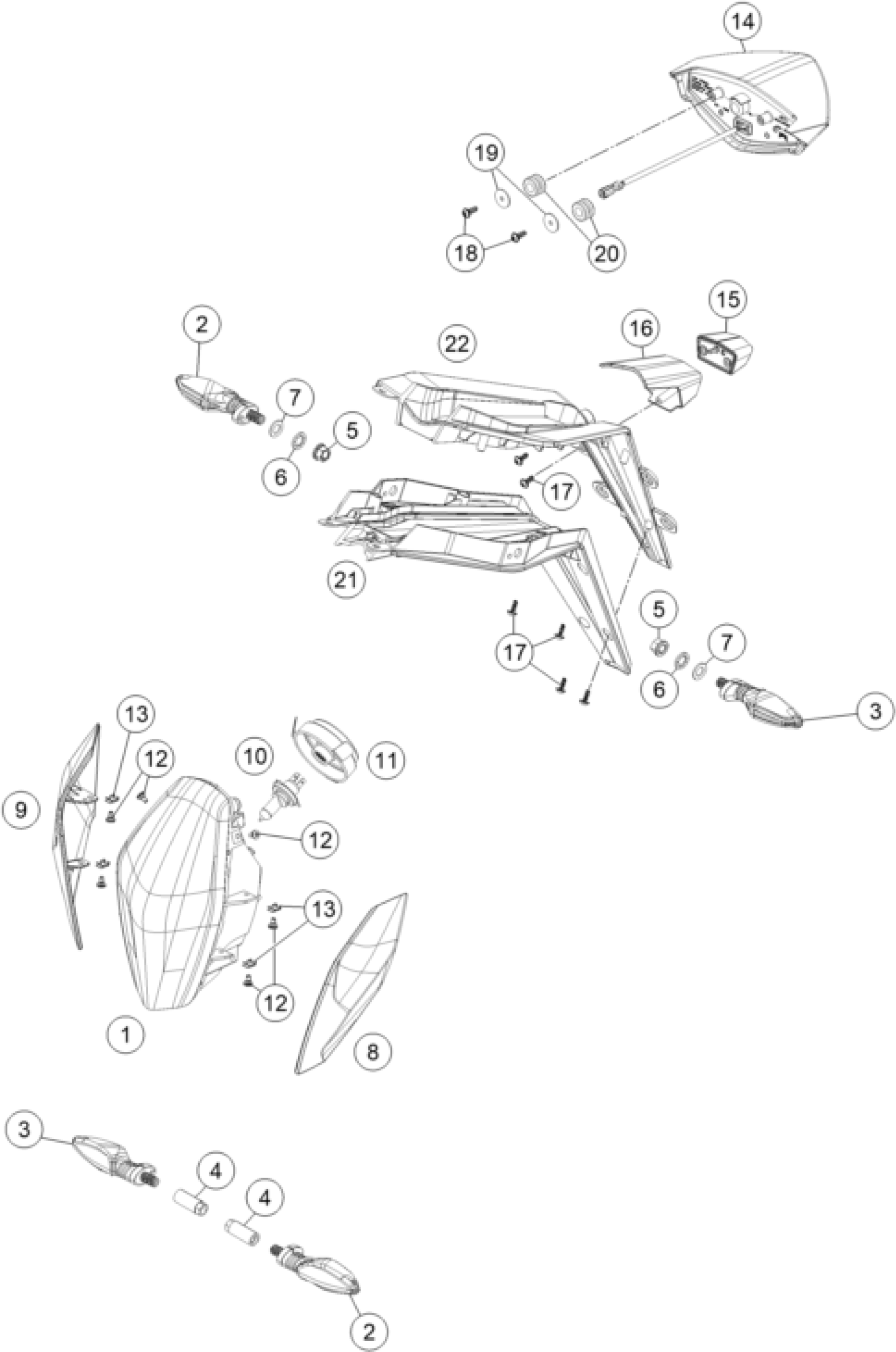

KTM 1290 SUPERDUKE R BLACK ABS 14 <2014 LIGHTING SYSTEM Diagram

#

Description

Price

14

REAR LIGHT 1290 SUPERDUKE

61314040000

Unavailable

17

EJOT PT screw K50x12

0081050121

$2.05

18

EJOT PT screw K50x14

0081050141

$1.49

19

WASHER DIN522 A2K 4.3X20X1.25

0522040003

$1.49

20

RUBBER BUSH 05

61013013000

$3.08

21

NUMBER PLATE CARRIER LOW. PART

61308023000

$48.61

22

NUMBER PLATE CARRIER UPP. PART

61308022000

$48.33

15

license plate lighting

60314047000

$35.62

16

COVER NUMBER PLATE LIGHT

61308024000

$6.26

10

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

11

RUBBER CAP FOR HEAD LIGHT

61314001050

$15.42

12

special screw M5x12

69008021160

$4.11

13

clip nut M5

69008021080

$3.08

2

FLASHER CPL. FR.LS/REAR R/S

76014025000

Unavailable

3

FLASHER CPL. FR.RS/REAR L/S

76014026000

Unavailable

4

FLASHER NUT M10X1,25 WS=12

61014030000

$9.44

5

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

6

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

7

Washer DIN0433-M10

0433100003

$1.49

1

HEAD LIGHT

61314001000

$733.03

8

MASK SPOILER L/S BLACK 14

6130800300030A

$98.07

9

MASK SPOILER R/S BLACK 14

6130800400030A

$98.07
