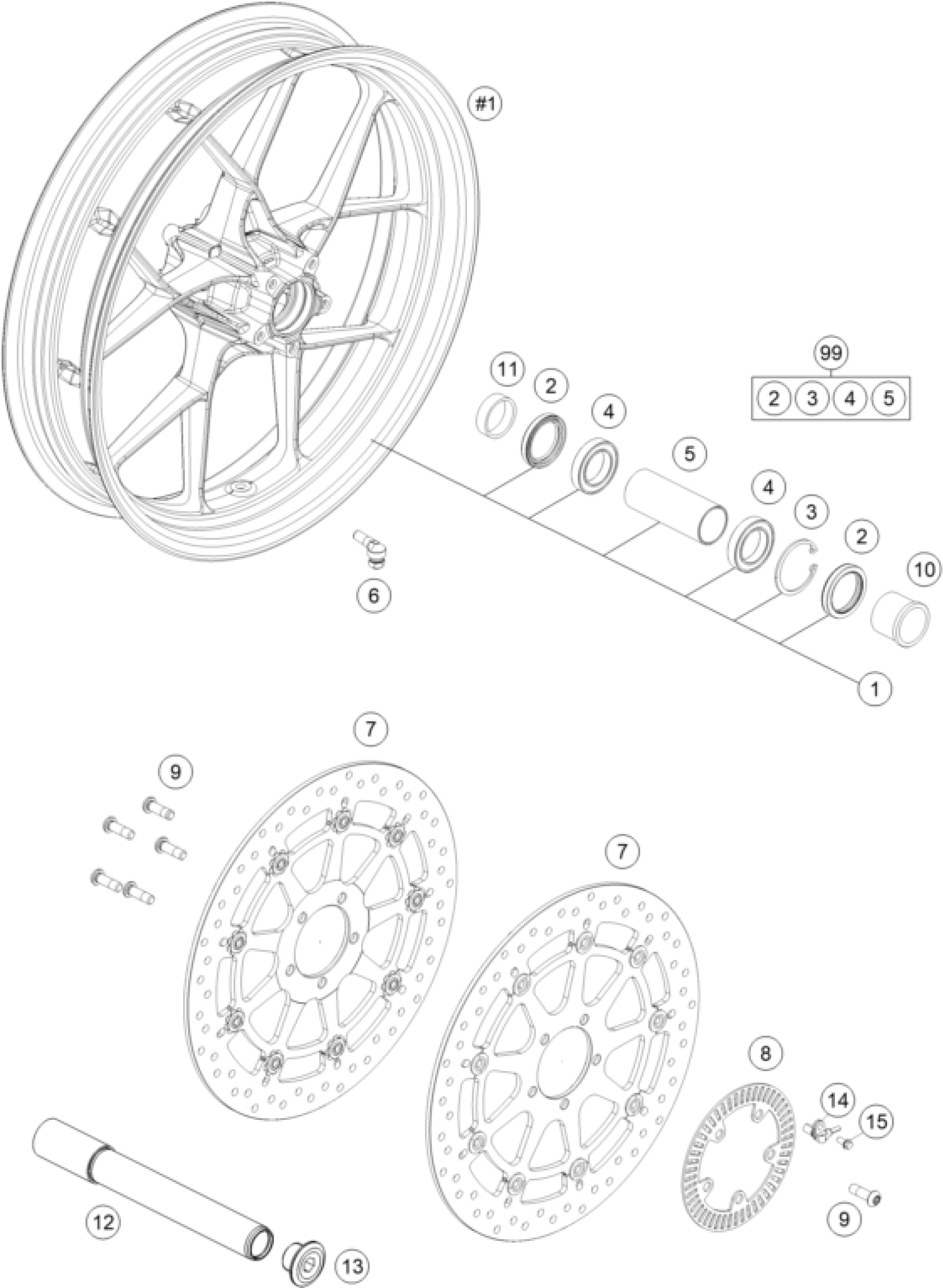

KTM 1290 SUPERDUKE R BLACK ABS 14 <2014> FRONT WHEEL Diagram

#

Description

Price

14

ABS-SENSOR

76042025000

$84.89

15

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

1

FRONT WHEEL 3,5X17'' BLACK

6130900104430

$490.87

2

Radial shaft seal 35X47X7 TC

0760354771

$8.69

3

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

4

Grooved ball bearing 6906

0625069068

$34.68

5

Bearing spacing tube, front

61009011000

$22.81

7

BRAKE DISK D=320/5

6130906000033

$357.91

6

VALVE ANGLED

61009076100

$16.35

8

Phonic wheel, front

76042020000

$34.59

9

Special screw M8X25 SL TX40

76009062000

$2.05

10

SPACER BUSH. FR. WHEEL L/S 05

61009012000

$18.50

11

Spacer bush. fr. whee R/S 03

60009013000

$14.86

12

WHEEL SPINDEL FRONT 05

61009081000

$81.15

13

AH screw M25X1.5 WS=12 05

61009082000

$18.41

99

FRONT WHEEL REP. KIT

61009015000

Unavailable
