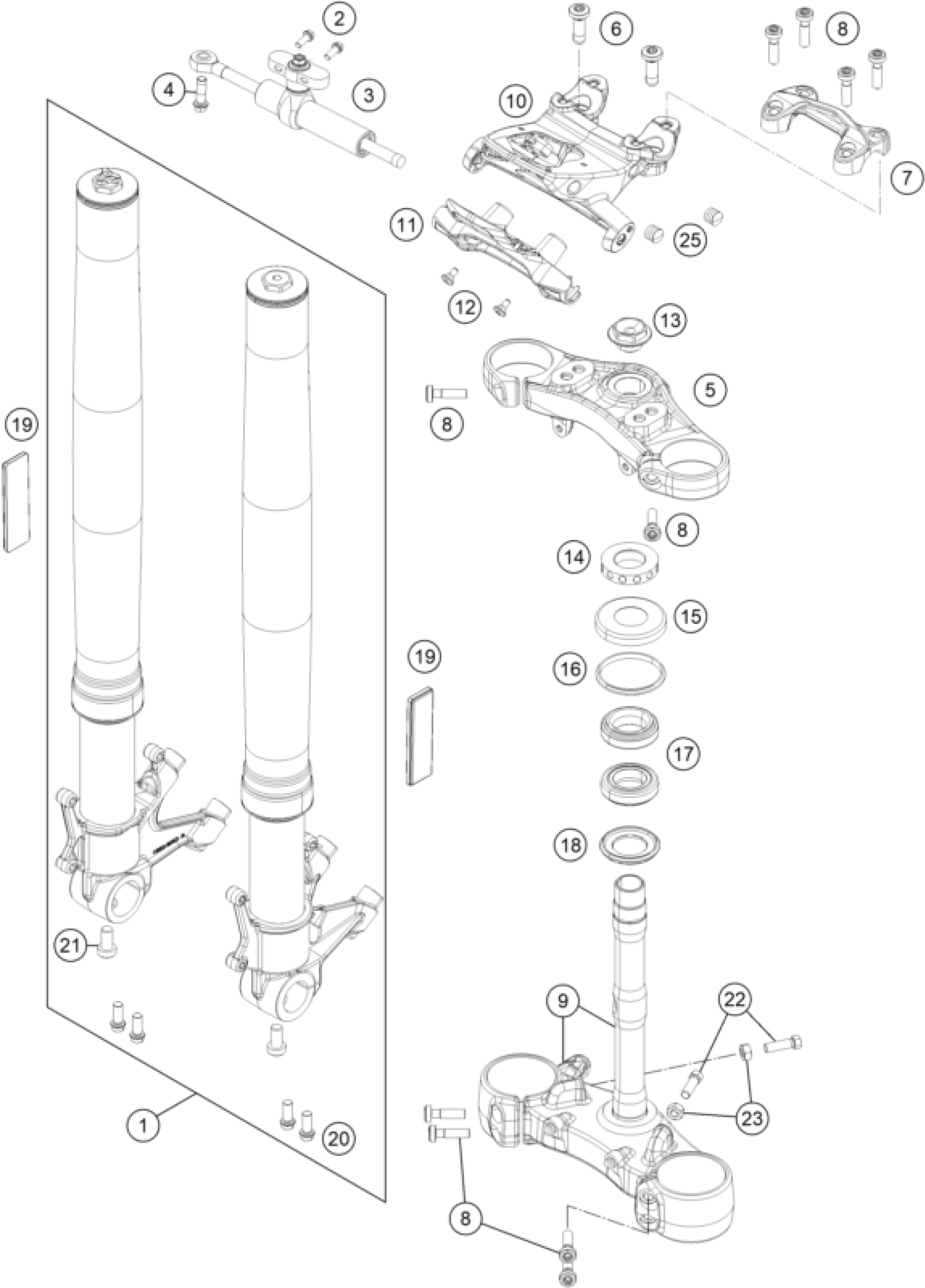

KTM 1290 SUPERDUKE R BLACK ABS 14 <2014> FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

2

HH collar screw M6x20 TX30

0025060206S

Unavailable

1

FORK WP SUPERDUKE 2013

14188N2201

Unavailable

3

STEERING DAMPER CPL. STROKE 75

16181N52ES

Unavailable

4

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

5

TOP TRIPLE CLAMP

6130103402933S

Unavailable

6

AH collar screw M10x30 ISA45

0035100309S

Unavailable

7

HANDLEBAR CLAMP

6130103800033S

Unavailable

8

AH collar screw M8x30 ISA45

0035080306

Unavailable

9

BOTTOM TRIPLE CLAMP CPL.

6130103202933S

Unavailable

10

INSTRUMENTS BRACKET CPL.

6130104304433

Unavailable

11

CASE INSTRUMENTS BRACKET

61301046000

Unavailable

12

special screw M5x12

69008021160

Unavailable

13

STEER.HEAD SCREW M22X1,5 SW27

6030103600001

Unavailable

14

STEER.HEAD NUT

57301036100

Unavailable

15

STEERING HEAD COVER 05

61001086000

Unavailable

16

STEARING HEAD GASKET TOP

54601184000

Unavailable

17

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

18

O-RING SUPPORT W. SEALING LIP

77701084000

Unavailable

20

HH collar screw M8x20

0025080206

Unavailable

19

REFLECTOR YELLOW '99

58412080100

Unavailable

21

AH SCREW M10X20 SET

00501020S1

Unavailable

22

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

23

Hexagon nut DIN934 M8

0934080003

Unavailable

25

PLUG SFL13

55009086000

Unavailable

99

STEAR. HEAD REP. KIT 1290 SD-R

61301080044

Unavailable
